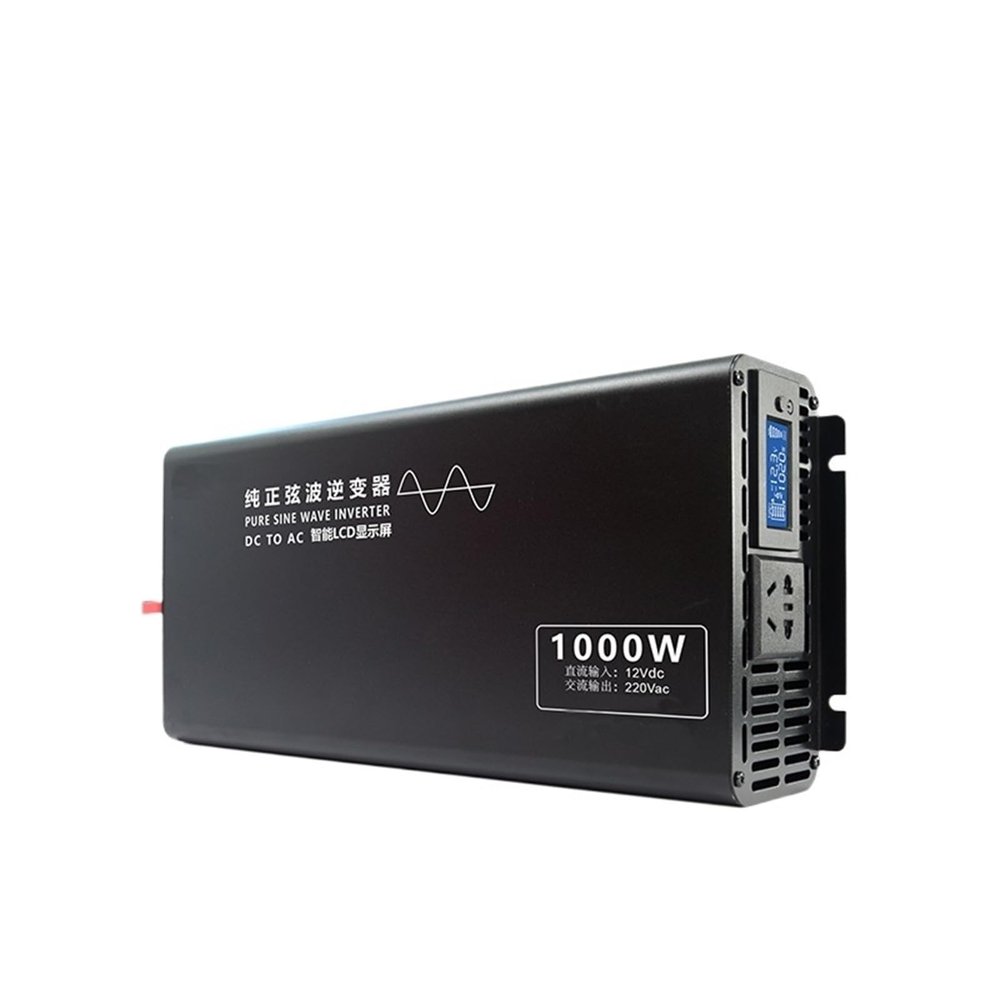

12V 24V 36V 48V 60V 72V 84V Dc to Ac 110V 120V 220V 230V 240V Pure Sine Wave Inverter 1000W Converter Power Supply(1000W 50HZ,72V(60-90VDC)_110VAC)

Description

• Power Inverters

Power Inverters
12V 24V 36V 48V 60V 72V 84V dc to ac 110V 120V 220V 230V 240V Pure Sine Wave Inverter 1000W Converter Power Supply

MODEL
1000W
OUTPUT
Continual Power
1000W
Surge power
2000W
Waveform
Pure sine wave
Frequency
50HZ or 60HZ
AC Regulation
5%
AC voltage
110VAC or 220VAC
INPUT
DC Voltage
12VDC
24VDC
36VDC
48VDC
60VDC
72V/84VDC
Voltage range
10~15VDC
20~30VDC
30~40VDC
40-60VDC
50~75VDC
60~90VDC
No LoadCurrent Draw
95%
DC Connector
Cables with Clips OR Car Adapter
ENVIRONMENT
Storage Temperature
Between -30 and +70
Working Temperature
Between -10 and +50
Working Humidity
20%-90%RH non-condensing
OTHERS
Start
Soft start
Cooling way
Cooling Fan
Total Harmonic Distortion
<;4%
Size(MM)
310*173*76(MM)
NW/GW
3.4KG
PROTECTING
low-voltage alarm
The buzzer sounds 2 audible with 1 Hz gap
Low voltage protection
The buzzer sounds 3time alarm, with1 Hz gaps
low-voltage recovery
he low-voltage rise automatically restores the output, andthe buzzer sounds 3times alarm is cancelled
Overvoltage protection
The buzzer sounds 4 times, with 1 Hz gap
Overvoltage recovery
The voltage is reduced automatically to restore the output,and the buzzer sounds 4times alarm is cancelled
thermal protection
805, when overheat protection buzzer sounds Stimes alarm,with1hz gap
Overload protection
10S automatic shutdown output for overload protection5S automatic recovery, automatic locking for three consecutive times
Short circuit protection
Output short circuit protection 1S shutdown lock
