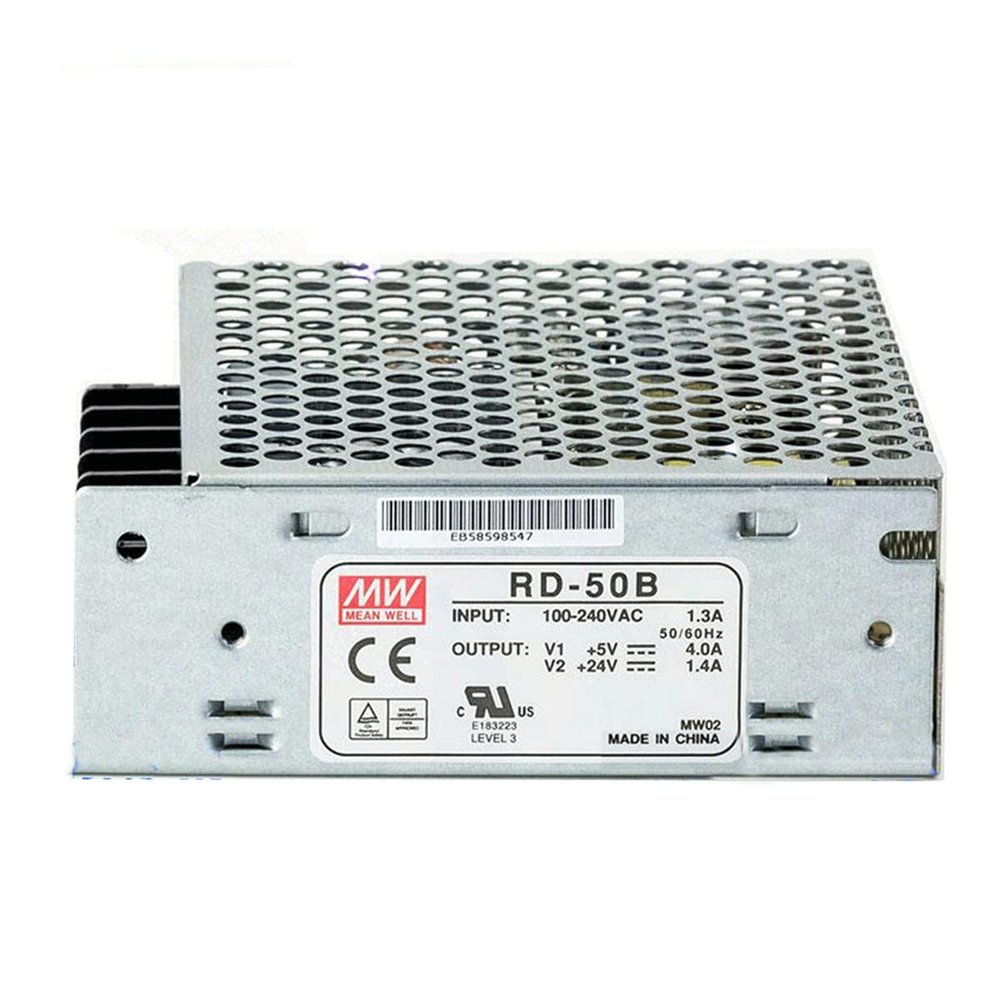

(12PACK) 50W Miniature Dual Output Power : RD-50 Series Switching Power Supply (RD-50B)

Description

• RD-50 - 50W dual output miniature size AC power supply
• 50W Dual Output Switching Enclosed Power supply, meet EMS EN50082-2/ EN61000-6-2 heavy industry level, has Short circuit/ Overload/ Over voltage protections.
• Meet EMS EB50082-2/EN61000-6-2 heavy industry level; Withstand 300VAC surge input for 5 sec; Withstand 5G vibration test
• High power density; LED indicator for power on; 100% full load burn-in test; Sutitable for critical applications
• Products High quality High cost-performance complete varieties 24-hour delivery Fast Response ? Technical questions will be replied in 24 hours

The RD-50 series, 50W dual output miniature size AC power supply. Suitable for Industrial/Harsh Environment

Specification
Input Voltage 88~264VAC, 125~373VDC
Inrush Current cold start, 33A at 230VAC
DC adjustment range +/- 10% by potential meter for single output; CH1 -5% ~ + 10% by potential meter for multiple output
O.L.P. 110% ~ 150% hiccup mode, auto-recovery
O.V.P. 115% ~ 135% rated output voltage, hiccup mode, auto-recovery
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1minute
Working temp -25C ~ +70C
Vibration 10~500Hz, 5G 10 min. / 1 cycle, period for 60 min. each along X,Y,Z axes
Safety standard UL60950-1, TUV EN60950-1 approved
EMC standards EN55032 class B, EN61000-4-2,3,4,5,6,8,11, EN61000-3-2,3, ENV50204, EN61000-6-2, EN50082-2
Connection Terminal block for input and output
Dimension L99 x W97 x H36 mm
Packing 45 pcs / 19.5 kgs / 0.90 CUFT
