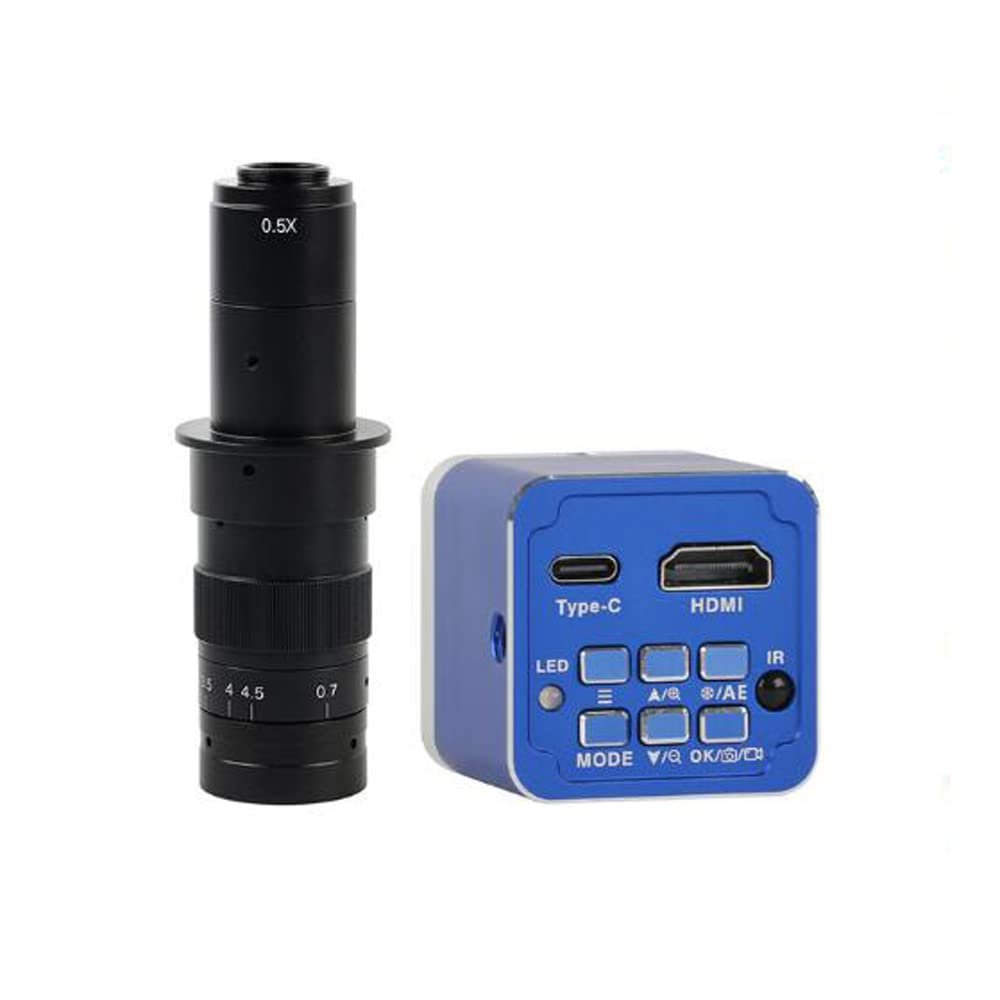

12MP 4K 1080P HDMI Type-c PC Industrial Electronic Digital MINI Video Microscope Camera & 180X C-Mount Lens

Description

• 1. Turn on the DC-12V power supply, connect to the monitor, and wait for the screen to appear on the monitor2. Tap the main function menu button on the product3. Press the up and down keys to select the setting function4. Press OK to confirm the desired function5. Press the left and right keys to adjust the required parameters6. Press the main function menu key to return to the setting menu7. When there is no main function menu on the screen, directly press the right button
• to take a photo and save the photo to the TF card8. When there is no main function menu on the screen, first press the left button, then press the right button to record, and then press the
• right button to stop Video, save the video to TF card9. When there is no main function menu on the screen, press the left button twice, then press the up and down buttons to preview pictures
• And videos

180X C-MOUNT Lens:Working distance: 100mmzoom c-mount Lens0.5X C-mount adapterzoom ratios: 6.5:1Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)Size: 180mm(L) * 50mm(DIA)Weight: 500gFeature:Effective pixels: 12 millionResolution: 3840*2160@30FPS 1920*1080@60FPSOutput interface: HDMIPixel size: 1.55UM*1.55UMBasic function: HDMI 4K output with simple measurement cross hairPicture quality adjustment: exposure, colorCamera functions: horizontal/vertical mirroring, picture freezing, taking pictures, and video recordingGrid lines: horizontal lines, vertical lines, and center scale lines can be customized in color and thicknessAppearance size: 45.5*42*42mmSingle machine weight: 0.11kgPower supply: DC-12V/1A
