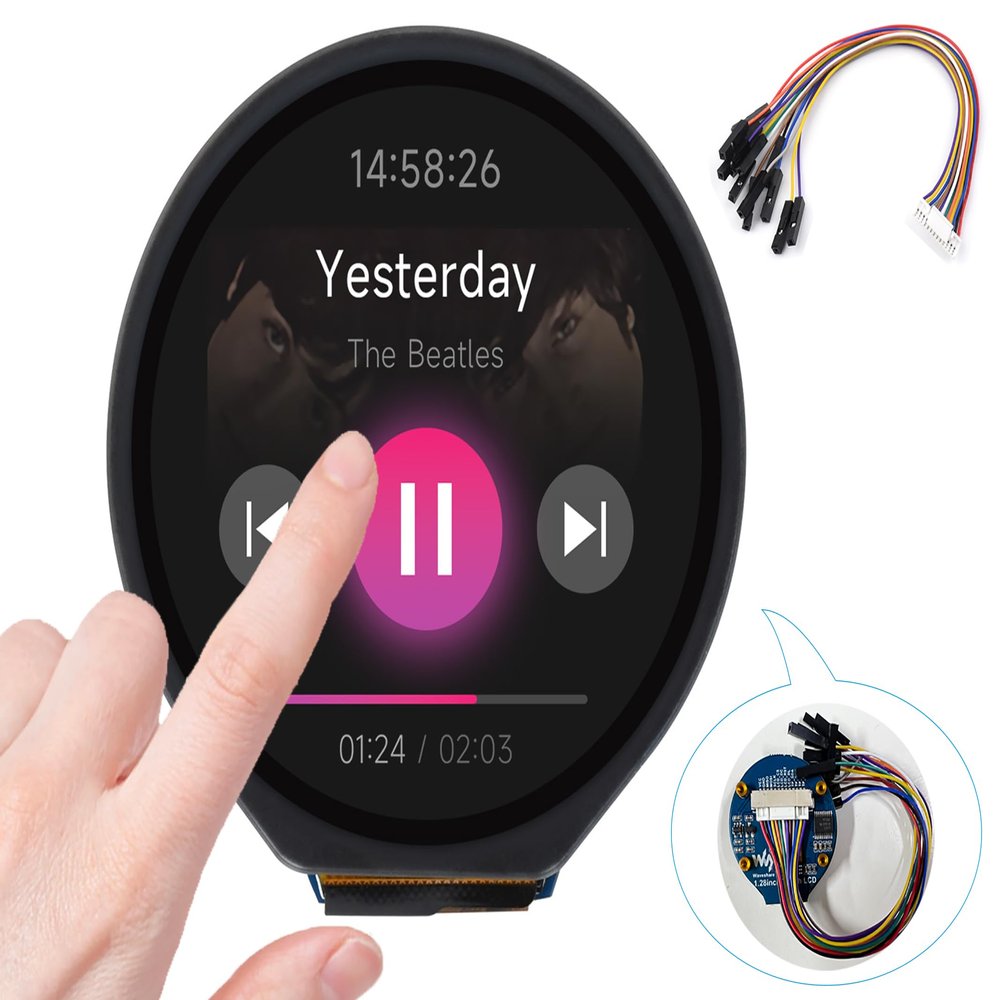

1.28inch Touch Round LCD Module with Touch Panel, 240240 IPS Capacitive Display Screen, 65K RGB Color, SPI & I2C Port, GC9A01 & CST816S Chip, for Raspberry Pi/Raspberry Pi Pico/Ardu/STM32, etc

Description

• 1.28inch Round LCD Display Module with Touch Panel, 240240 Resolution, IPS screen. 65K colors, clear and colorful displaying effect.
• Embedded GC9A01 driver chip and CST816S capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi/Raspberry Pi Pico/for Arduino/STM32,etc.
• High touch screen transmittance, fast response and long lifetime. Small Size, Touch More Possibilities: Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function.
• Operating voltage: 3.3V / 5V. Resolution: 240 240 pixels. LCD controller: GC9A01. Touch controller: CST816S. Communication interface: 4-wire SPI. Communication interface: I2C. Display panel: IPS. Touch type: Capacitive.
• Comes with online development resources and manual (examples for Raspberry Pi/Raspberry Pi Pico/Arduino/STM32)

Overview
1.28inch Touch LCD Display Module, Embedded GC9A01 Driver And CST816S Capacitive Touch Control Chip, Using SPI And I2C Communication Respectively.

Features
240240 resolution, 65K colors, clear and colorful displaying effect
High touch screen transmittance, fast response and long lifetime
Small Size, Touch More Possibilities: Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function
Embedded GC9A01 driver chip and CST816S capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi/Raspberry Pi Pico/Arduino/STM32
Comes with online development resources and manual (examples for Raspberry Pi/Raspberry Pi Pico/Arduino/STM32)

Specifications
OPERATING VOLTAGE---3.3V / 5V
RESOLUTION---240 240 pixels
DISPLAY DRIVER---GC9A01
TOUCH DRIVER---CST816S
TOUCH INTERFACE---I2C
DISPLAY INTERFACE---4-wire SPI
DISPLAY PANEL---IPS
TOUCH TYPE---Capacitive
DISPLAY SIZE---32.4mm
PIXEL SIZE---0.135 0.135 mm
MODULE SIZE---9.89 38.50mm 38.50mm

LCD and Controller
This LCD adopts built-in driver GC9A01 with a resolution of 240RGB 240 dots, which has an internal GRAM of 129,600 bytes. It supports MCU port with 12/16/18 data bus, that is, the common RGB format of RGB444, RGB565, and RGB666. For most LCD controllers, the communication mode of the controller can be configured, usually with an 8080 parallel interface, three-wire SPI, four-wire SPI, and other communication methods. This LCD uses a four-wire SPI communication interface, which can greatly save GPIO ports, and the communication speed will be faster.

How-to-use document/User Manual://bit.ly/3Zk33oQ

PACKAGE CONTENT
1.28inch Touch LCD x1
GH1.25 13Pin cable x1
