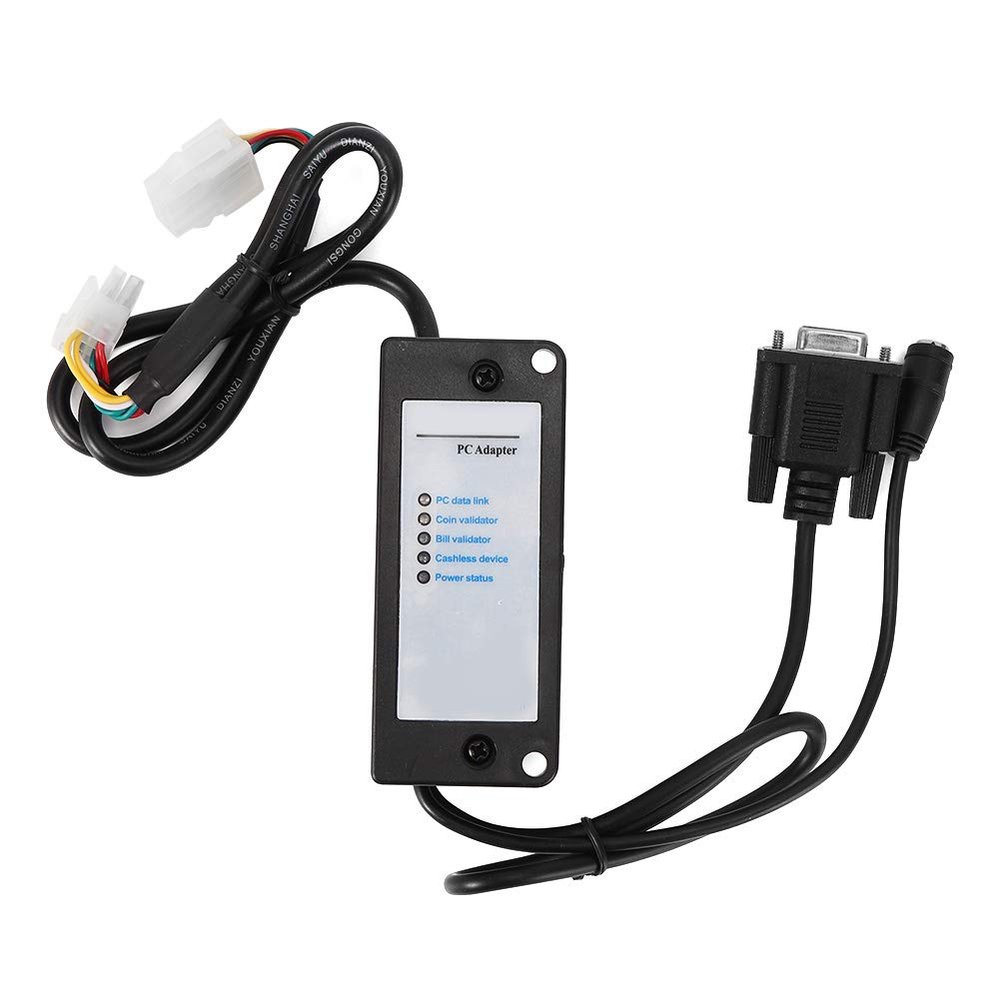

125 MDB Payment Device to PC Converter, RS232 Adapter Bill Acceptor Computer Serial Port Transfer Box Comes with Cables, for Connecting MDB Receivers

Description

• MDB Payment Device to PC ConverterThis converter is used for connecting MDB receivers, bill receivers and card readers, You can not only just use the RS232 port of the computer but you can also use for motherboard or any other motherboard with RS232 or USB port.
• Multi-InterfaceIf you only have a USB port, you can use the additional USB to RS232 transfer case to create a virtual COM port on your PC or board, Supports MDB, receiver, bill receiver, cash interface (10H and 60H) and USD interface (40H).
• Widely CompatibleAllows the PC to control the acceptor, the change dispenser, the smart card reader, the magnetic card, the credit card reader, the bill acceptor and the bill verification, Complies with all MDB specifications and is compatible with any vending equipment that complies with MDB. The hardware interface comes with cables, user and user agreement.
• Connect Multiple DevicesA single MDB to RS232 converter can connect up to eight (8) MDB compatible devices, The interface adapter is designed to convert the MDB protocol of the vending machine to the RS232 serial protocol.
• InstructionsThe adapter is used as a slave of the main control system. The main device can be any control system that supports RS232 serial communication, such as a PC, This adapter is designed to convert MDB bill acceptor (BA) and MDB changer protocols to RS232 serial protocol. IU is used as a slave of the master control system.

Feature:
1. This converter is used for connecting MDB receivers, bill receivers and card readers.
2. You can not only just use the RS232 port of the computer but you can also use for motherboard or any other motherboard with RS232 or USB port.
3. If you only have a USB port, you can use the additional USB to RS232 transfer case to create a virtual COM port on your PC or board.
4. Supports MDB, receiver, bill receiver, cash interface (10H and 60H) and USD interface (40H).
5. Allows the PC to control the acceptor, the change dispenser, the smart card reader, the magnetic card, the credit card reader, the bill acceptor and the bill verification.
6. Complies with all MDB specifications and is compatible with any vending equipment that complies with MDB. The hardware interface comes with cables, user and user agreement.
7. A single MDB to RS232 converter can connect up to eight (8) MDB compatible devices.
8. The interface adapter is designed to convert the MDB protocol of the vending machine to the RS232 serial protocol.
9. The adapter is used as a slave of the main control system. The main device can be any control system that supports RS232 serial communication, such as a PC.

Specification:

Conditon: Brand New
Item Type: MDB to RS232 Converter
Material: ABS Plastic
Color: As Pictures Shown
Start Bit: 1
Data Bits: 8
Stop Bit: 1
Between Bytes: 1 Ms
Response (Maximum): 50 Ms
Master Polling Time: 150-300 Milliseconds
IU Waits for the Main Polling Time Before Rejecting BA and cha
