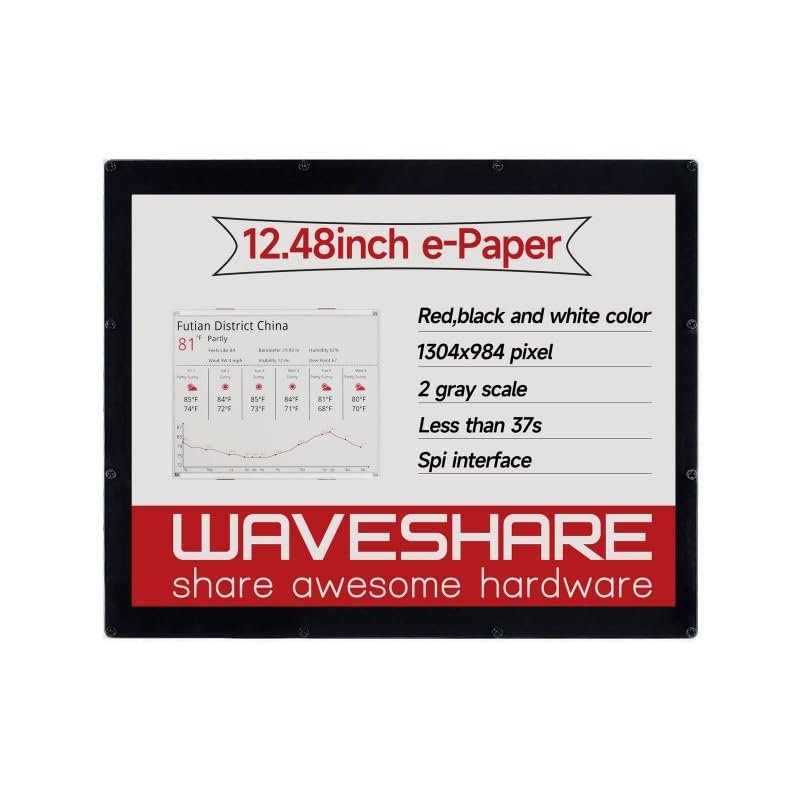

12.48inch E-Paper E-Ink Display Module Compatible with Raspberry Pi/Jetson Nano 1304984 Pixels Resolution Red/Black/White Three-Color SPI Interface Without PCB with Embedded Controller

Description

• This is an E-Ink display, 12.48inch, 1304984 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• ESP32 control header, allows directly plugging control boards like e-Paper ESP32 Driver Board / ESP32-DevKitC
• Onboard voltage translator, compatible with 3.3V/5V MCUs Acrylic protective case, keeping the screen safe, nice looking

Overview
This is an E-Ink display, 12.48inch, 1304984 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on

Specifications
Operating voltage: 3.3V/5V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 261.40 211.00 1.20mm/280.00 229.50mm
Display size: 252.98 190.90mm
Dot pitch: 0.194 0.194
Resolution: 1304 984
Display color: red, black, white
Grey scale: 2
Full refresh time: 37s
Refresh power: 82.5mW(typ.)
Standby current: 170

Features
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Standard RPi 40PIN GPIO extension header, supports RPi series boards
ESP32 control header, allows directly plugging control boards like e-Paper ESP32 Driver Board / ESP32-DevKitC
SPI control interface, for working with STM32 or other MCU host boards
Onboard voltage translator, compatible with 3.3V/5V MCUs
Acrylic protective case, keeping the screen safe, nice looking
Comes with development resources and manual (examples for RPi/Arduino/STM32/ESP32)
