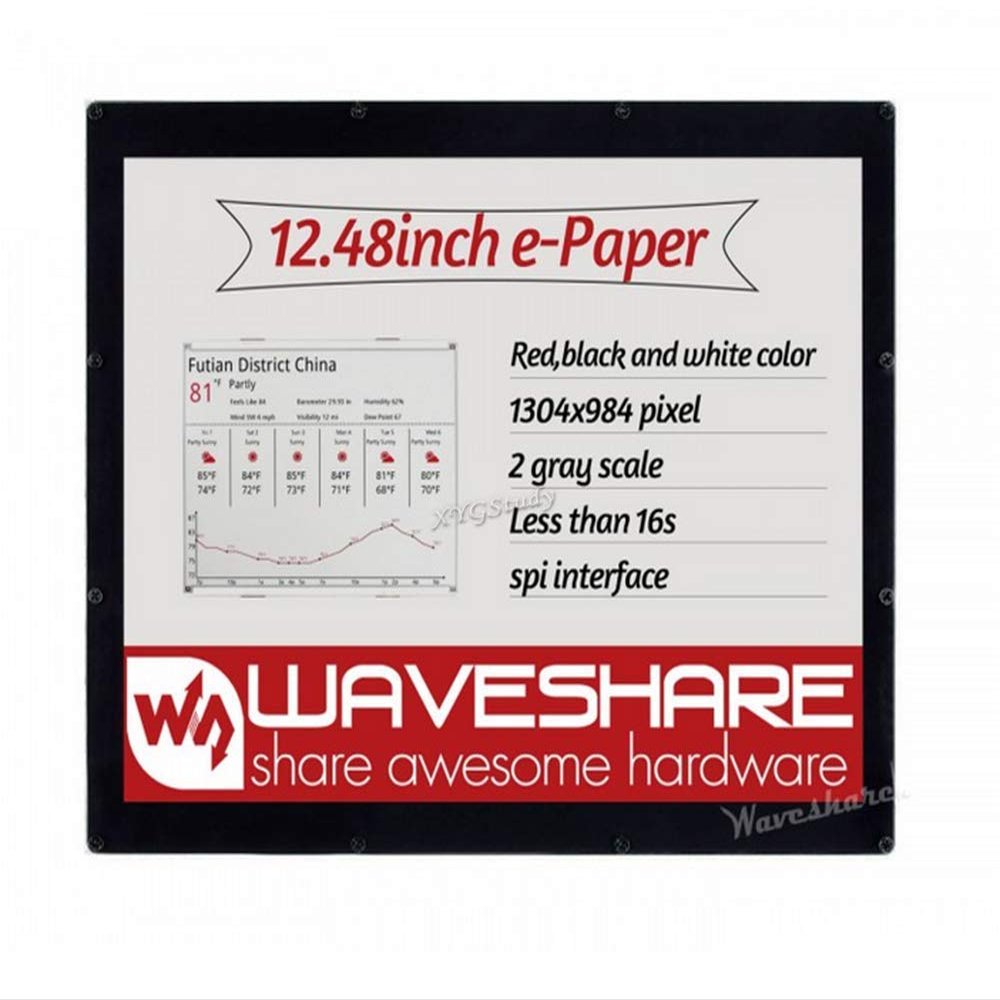

12.48 inch e-Paper E-Ink Display Module (B) 1304984 Resolution Red/Black/White Three-Color SPI Interface Wide Viewing Angle for Raspberry Pi 4 3/STM32/ESP32 @XYGStudy

Description

• Part Number: 12.48inch e-paper Module (B)
• This is an E-Ink display module, 12.48inch, 1304984 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
• Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards. Arduino compatible header, allows directly plugging Arduino boards like UNO / UNO PLUS. ESP32 control header, allows directly plugging control boards like e-Paper ESP32 Driver Board / ESP32-DevKitC
• SPI control interface, for working with STM32 or other MCU host boards. Onboard voltage translator, compatible with 3.3V/5V MCUs. Acrylic protective case, keeping the screen safe, nice looking. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32/ESP32)

Overview
This is an E-Ink display module, 12.48inch, 1304984 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Arduino compatible header, allows directly plugging Arduino boards like UNO / UNO PLUS
ESP32 control header, allows directly plugging control boards like e-Paper ESP32 Driver Board / ESP32-DevKitC
SPI control interface, for working with STM32 or other MCU host boards
Onboard voltage translator, compatible with 3.3V/5V MCUs
Acrylic protective case, keeping the screen safe, nice looking
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32/ESP32)

Specifications
Operating voltage: 3.3V / 5V
Interface: 4-wire SPI
Outline dimension: 261.5mm 211mm
Display size: 252.98mm 190.90mm
Dot pitch: 0.194 0.194
Resolution: 1304 984
Display color: red, black, white
Grey scale: 2
Full refresh time: 16s
Refresh power: 82.5mW(typ.)
Standby power: 170

Package Contains
12.48inch e-Paper Module (B) x1
8PIN squid wire x2
Screwdriver x1

For more resources you may need, pls contact me via Amazon message, i will send you then via attachment.
