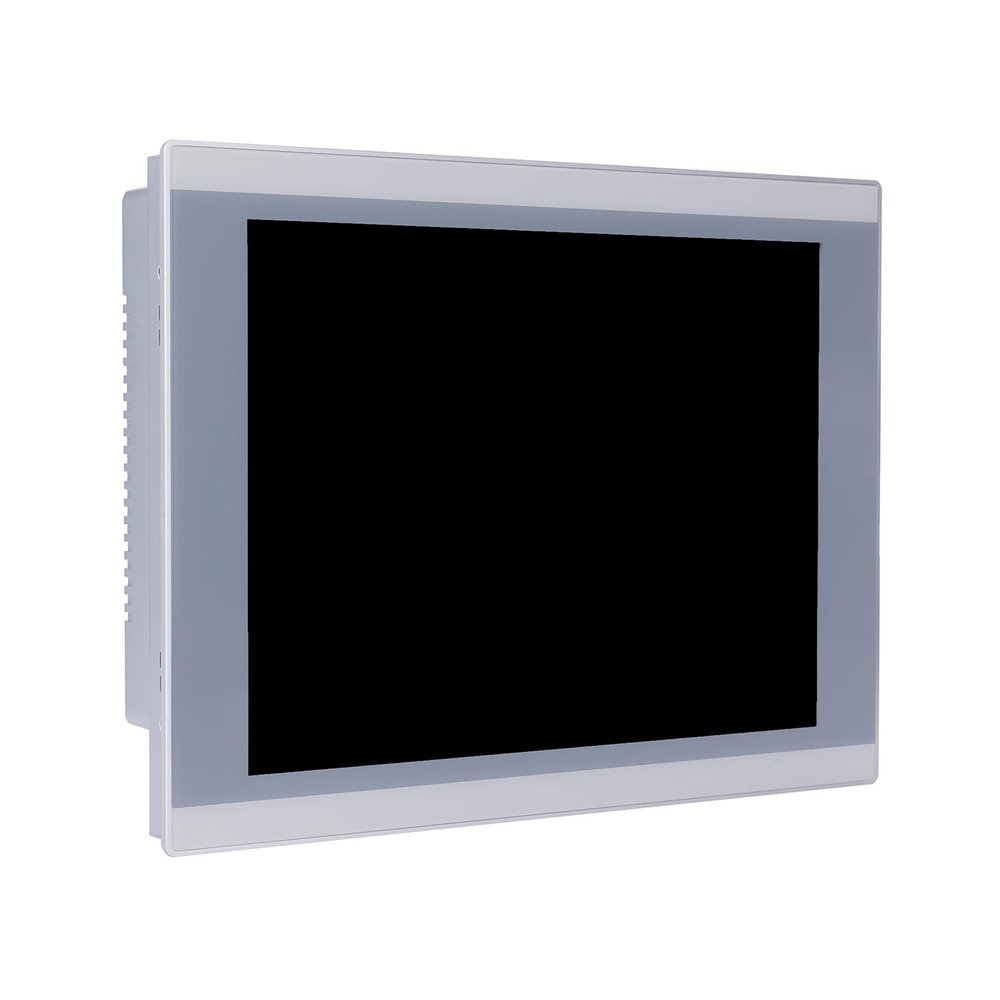

12.1 Inch TFT LED Industrial Panel PC, High Temperature 5-Wire Resistive Touch Screen, Intel J6412, PW24, HDMI, 2 x LAN, 3 x COM, 16G RAM, 512G SSD, 1TB HDD

Description

• 12.1 inch tft led industrial grade touch panel pc, front panel protection IP65, 10-point projected capacitive touch screen, typical 1024 x 768 resolution, powered by intel celeron quad core j6412 processor, applicable to a wide range of industrial applications, 7 x 24 hours of stable work
• Windows 11 pro 64 bit installed, set up is effortless and it's ready to run straight out of the box
• Aluminum alloy fanless passive cooling design, silent solution thats ultra energy-efficient
• HUNSN PW24 designed with 12v dc, 3 x com, hdmi, 4 x usb3.0, 2 x lan, audio, power_sw, industrial aesthetic design and reasonable interface layout, support automatically power on after power failure, with mounting embedded buckle kits
• Size at 306.8 x 235.12 x 54.5mm, 3.1kgs, 12v power supply, with power cord, all use a big brand memory and ssd/hdd with quality assurance, very powerful fanless all in one panel touch pc

Model Number: HUNSN PW24
Panel: 12.1" TFT LED panel, front panel protection IP65
CPU: Intel Celeron Processor J6412 1.5M Cache, up to 2.60 GHz
Memory: 1 x SODIMM DDR4 3200MT/s, max. to 32GB RAM
Storage: 1 x M.2 2280 SATA SSD, 1 x 2.5" SATA SSD/HDD
I/O: 12V DC, 3 x COM, HDMI, 4 x USB3.0, 2 x LAN, AUDIO, POWER_SW
Expansion: M.2 slot for WiFi, sim slot is a customized option
Watchdog Timer: 255
Cooling System: Aluminum alloy, fanless
Dimension: 306.8 x 235.12 x 54.5mm
Weight: 3.1kgs
Opening Hole: 301 x 229mm
Resolution: 1024 x 768
Perspective: 80L, 80R, 80T, 80B
Brightness: 350cd/m2
Contrast: 1000
Backlight Life: 30,000 hours min.
Touch Screen: High temperature five-wire resistive touch screen
Transmittance: 805% at 550 nm wavelength
Durability Touch Count: 35 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50C with SSD, 0 ~ 40C with HDD
Storage Temperature: -20 ~ 60
Operating Humidity: 10% ~ 95% @ 40 without condensation
EMC: CCC
Power Supply: DC100-240V AC/50-60Hz, 12V
Packing List: HUNSN PW24 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
ATTENTION: Other options, Linux or other system, other system language, do leave HUNSN message on the order, thank you
