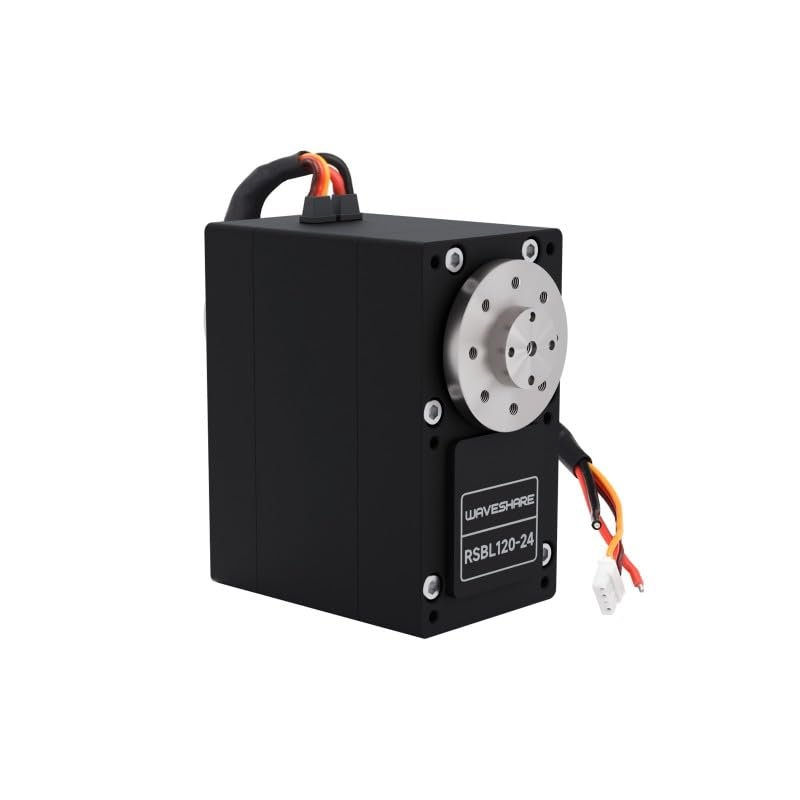

120kg.Cm RSBL120-24 Servo Motor, High Precision and Large Torque, Aluminum Alloy Case, with Programmable 360 Magnetic Encoder, Multiple Operation Modes Switchable (RSBL120-24V Version)

Description

• To Improve The Heat Tolerance, Size Stability, Rigidity, And Mechanical Performance Of The Case. To Ensure The Strength And Durability Of Servo Motor Power Transmission.
• Adopts 12-bit high-precision magnetic encoding angle sensor. Compared with the carbon film potentiometer, the angle of the magnetic encoder is enlarged to 360, and the resolution is increased by 4 times. Since there is a gap and no friction between the magnetic encoder and the radial magnet, the motor lifetime is effectively extended.
• Up To 120kg.Cm Torque On 24V Voltage, Suitable For Applications Such As Industrial Equipments And Robotics, Etc. It Is A Ideal Choice For Large Torque Solution Projects. The Speed And Acceleration Values Are Settable To Make The Motion Effect Softer And Reduce Impact From Inertia
• . 360 Installation At Any Position, One Button To Set The Current Position As Middle Position. Easy To Install And Debug. The Servo Motor Will Provide Various Feedback Like Position, Load, Speed, Input Voltage, Current And Temperature In Real Time, With Unloading Force Protection When The Servo Motor Is Overheated Or Overloaded.
• Multiple Operation Modes. Suitable For More Application Scenarios. Supports Angle Position Control In Both Positive And Negative Directions Up To 7 Loops Under The Default Precision Setting, But The Number Of Loops Will Not Be Saved In Case Of Power Loss. Lowering The Angle Resolution Can Double The Number Of Control Loops.

120kg.Cm RSBL120-24 Servo Motor, High Precision And Large Torque, Aluminum Alloy Case, With Programmable 360 Magnetic Encoder, Multiple Operation Modes Switchable

Specifications
PRODUCT MODEL: RSBL120-24
TORQUE: 120kg.cm@24V
ROTATION ANGLE: 360 (0~4095)
POSITION SENSOR RESOLUTION: 0.088 (360/4096)
MECHANISM LIMIT ANGLE: No limit
WORKING VOLTAGE: 9 ~ 24 V (typ. 24V)
GEAR: high precision steel gear (reduction ratio 1:232)
NO-LOAD SPEED: 0.2sec/60degree 50RPM@24V
ENCODER TYPE: 360 magnetic encoder
ID RANGE: 1 ~ 253 (1 by default)
BAUDRATE: 38400bps ~ 1Mbps (1Mbps by default)
NO-LOAD CURRENT: 200mA
LOCKED-ROTOR CURRENT: 4A
KT: 30kg.cm/A
WEIGHT: 485g
FEEDBACK: Position, Load, Speed, Input Voltage, Current, Temperature

PACKAGE CONTENT
1. RSBL120-24 x1
