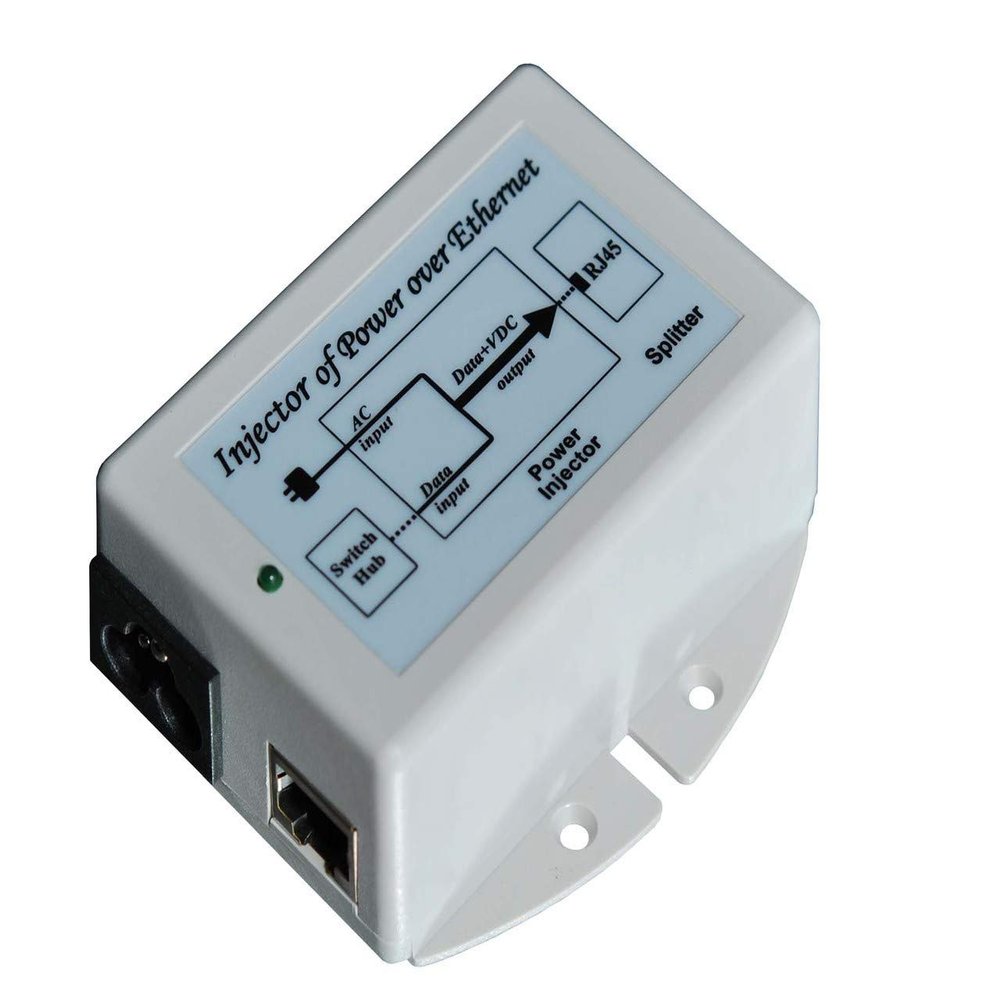

120/240VAC Input, 18V 18W Gigabit Passive PoE Inserter, PoE Pinout: 4,5V+; 7,8V-, UL1950, Shielded and Surge Protected, Includes Removeable US Power Cord

Description

• 120/240VAC In, 18VDC 18W Gigabit Passive PoE Inserter
• 120/240VAC Autoranging Input with Removeable Power Cord
• 18VDC 18W Regulated Gigabit Passive PoE out
• Shielded and Surge Protected
• UL1950, CSA 22.2 & TUV EN60950

Features
Remotely Power Equipment thru CAT5 Cable up to 100m
Built in Ethernet and AC Surge Protection
Autoranging Switching Power Supply
Short Circuit, Over Current and Over Voltage Protection
Medium Power and High Power Models Available
Passive PoE
10/100/1000Mb
High Temperature Industrial Operation
Compact size Floor / Desktop / Wall Mount
I.T.E. Power Supply, UL Listed

Applications
Wireless Access Points and Client Devices
IP Phone and Security Camera Systems

The TP-POE-18G offered by Tycon Power are quality midspan power sources for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). For the R model the voltage is reversed. 4,5(V-) and 7,8(V+). The Ethernet spec supports distances up to 100m (328 feet).

The units are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated DC Voltage at the output. They have various protections for surge, short circuit, overload and overvoltage. The medium power model has power output up to 24W. They have 18VDC Output with load regulation within 5%. The CI model has a special current sense LED which changes color when a PoE device is plugged onto the CAT5 cable.

If the remote device does not support power over Ethernet, splitters (POE-SPLT-S) are available to split the data and DC voltage at the remote device. If the remote device requires reverse voltage the POE-XOVER cable can be used.
