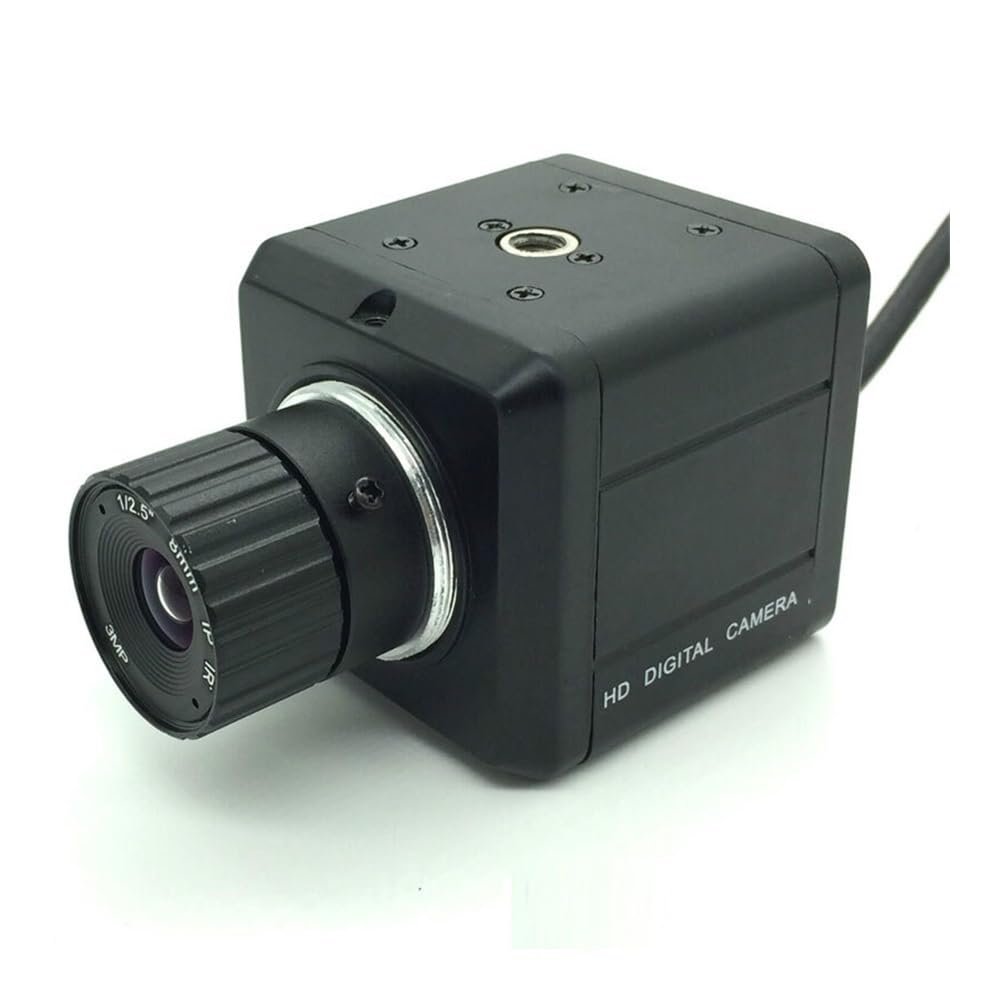

1200TVL CCD DIY Camera Industrial BNC Camera 0.001LUX OSD Menu with Lens (Color : 12mm Lens)

Description

• Product Type: Microscope Cameras. 1200TVL BNC Camera.
• Using high-performance 673CCD (sensor) + 4140 (DSP) high definition and high sensitivity.
• Total pixels: PAL: 1020H596V NTSC: 1020H508V; Effective pixels: PAL: 976H582V NTSC: 976H494V.

Features:
1. Using high-performance 673CCD (sensor) + 4140 (DSP)
2. high definition and high sensitivity
3.Multi-language OSD menu settings (menu interface for selection)
4. Image quality adjustment (contrast/sharpness/chroma/gain)
5. Digital wide dynamic function
Specifications:
Total pixels: PAL: 1020H596V NTSC: 1020H508V
Effective pixels: PAL: 976H582V NTSC: 976H494V
Signal system: PAL/NTSC (default PAL system, NTSC system can be selected)
Resolution (horizontal center): 1200TVL
Digital noise reduction: 2D digital noise reduction (2DNR) supports 16 levels adjustable from 0-15
WDR: Digital WDR (adaptive tone reproduction)
OSD menu: support
Low illumination: 0.001LUX/F1.2
Signal to noise ratio: 48dB
Video output amplitude: 1.0Vp-p/75
Automatic gain control: 0.25/0.50/0.75/1.00 four levels can be adjusted, up to 55dB
White balance method: on/off selectable
Backlight compensation method: High brightness backlight compensation (HLC) / backlight compensation
Exposure mode: Electronic exposure
Electronic shutter: 1/50(1/60)-1/100000 seconds
Gamma correction: 0.45/1.0
Synchronization method: Internal synchronization
Lens: lens can be selected
Working V: DC12V (wide V, the measured can work normally in 8-18V)
Working current: 45mA (low power consumption)
Working temperature: -20--60
Humidity: 0%-98%

Note:
There are different focal length for choosing, 2.8mm, 4mm, 6mm, 8mm, 12mm, 16mm, 25mm and 60mm.
You can choose it via "color" option.
60mm is zoom lens, other lenses are fixed.
