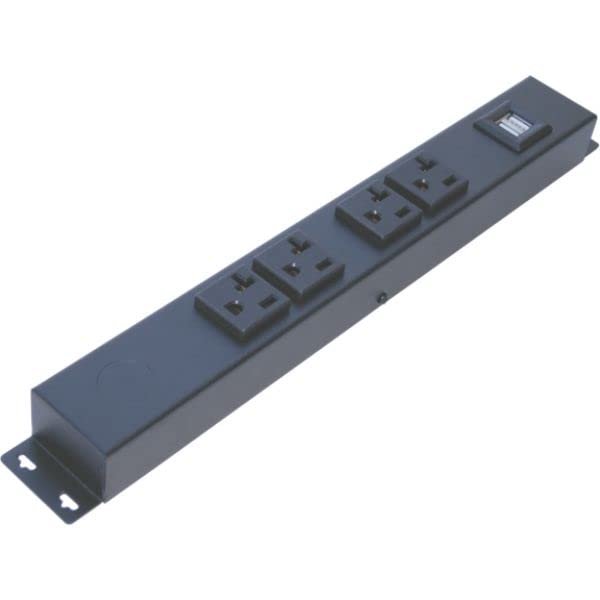

212 Main 12 in. 20A 4 Outlets Hardwired Power Strip with USB

Description

• 12/0.30m Durable Steel Hardwired Power Strip
• With Ears (Mounting Tabs) on both Ends, 2 x 0.67/17mm
• 4 Black US NEMA 5-20R 20Amp Outlets, Vertical Orientation
• 2 USB Ports, (Type A) Output DC 5V/2.1A, Input AC 110-240V/0.5A/60Hz)
• Hardwired without Power Cord for Mounting at Your Desired Location

Features. 12/0.30m Durable Steel Hardwired Power Strip. With Ears Mounting Tabs on both Ends, 2 x 0.67/17mm. 4 Black US NEMA 520R 20Amp Outlets, Vertical Orientation. 2 USB Ports, Type A Output DC 5V/2.1A, Input AC 110240V/0.5A/60Hz. Hardwired without Power Cord for Mounting at Your Desired Location. ETL Approved and Listed Conforms to UL 5, UL 1310 and CAN/CSA C22.2 No. 62. Electrical Ratings 125V/20A/60Hz/Recommended Max Load 1920W. 6 Easily Punched off Knockouts on Each Side C Top/Bottom Cover, Both Sides and Ends. Back Cover Easily On/Off, Where Wires Are Connected. Wires Readily Striped for Easier Removal and Faster Installation. Great for Contractors, Electricians and Installers, as well as DIYersInstallation Guide. Before installation, you may need to get a 3/8 wire clamp connector and 3 wire connectors or terminal connectors. Decide your wire gauge, and ask store attendant for assistance what connectors you should get from your local hardware, electric supply or home improvement stores. Minimum tools required A fine to medium fine philips screw driver, and a pair of scissors, and a pair of mid size slip joint pliers, Turn off electricity in the house.Decide where to place this Hardwired Power Strip unit, Choose the knockout to be used for cord exit, then gently punch it off with the back of a screw driver or other tool handy,Unscrew the back cover off the unit with a philips screw driver. Take out the white/transparent plastic insulation sheet, and use a pair of scissors to cut a hole on it about 3/4 in diameter, or big enough for WHERE the wires will run through. If the bottom knockout on the back cover is to be used for wire connection, a wire clamp connector may not be needed, thus, please ignore step 6, 7 and 9 below. Put on the 3/4 wire clamp connector in place. Secure its installation by tightening the big ring screw inside the casing with the pair of slip joint pliers. Run the wires through the wire clamp connector, from outside into the Unit. In case
