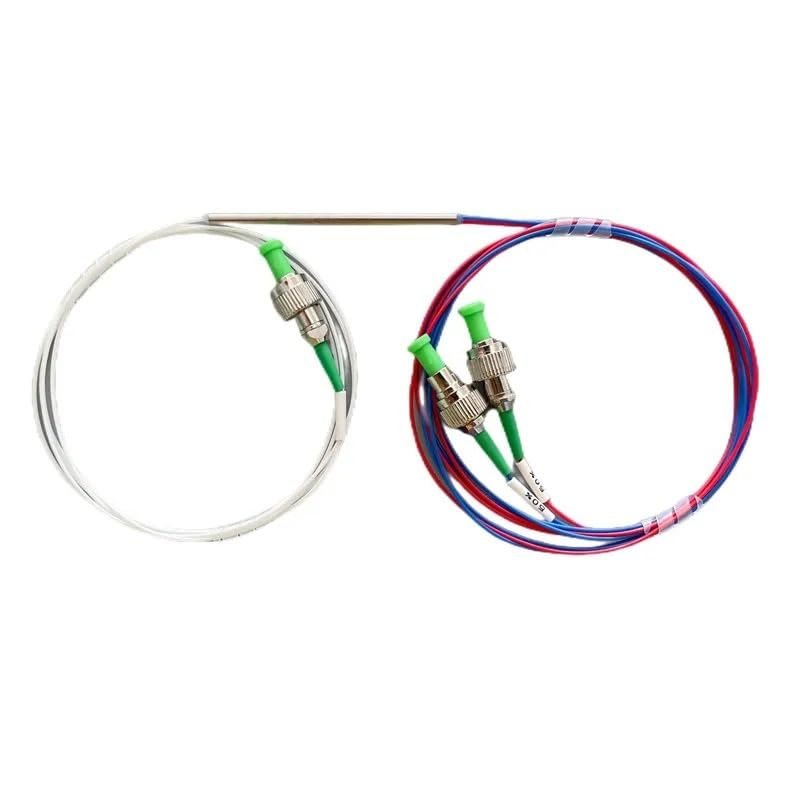

1/2 Fiber Coupler 1260~1620nm Single Mode Fiber Coupler 1X2 Tapered Beam Splitter(Size:10:90), JTSF9648

Description

• Product Name: Single Mode Dual Window Width Coupler
• Fiber color: input white, output port 1 (large splitting ratio) black, output port 2 (small splitting ratio) white
• Fiber type: single mode
• Optical fiber interface: FC
• Split ratio: 50:50, 40:60, 30:70, 20:80, 10:90, 5:95 2:98, 1:99

Port configuration: 1x2
Working temperature range: -40-85
Storage temperature range: -40-85
Connector: 2.0mm narrow key FC/APC
Center wavelength: 1550nm
Size: as shown in the picture
