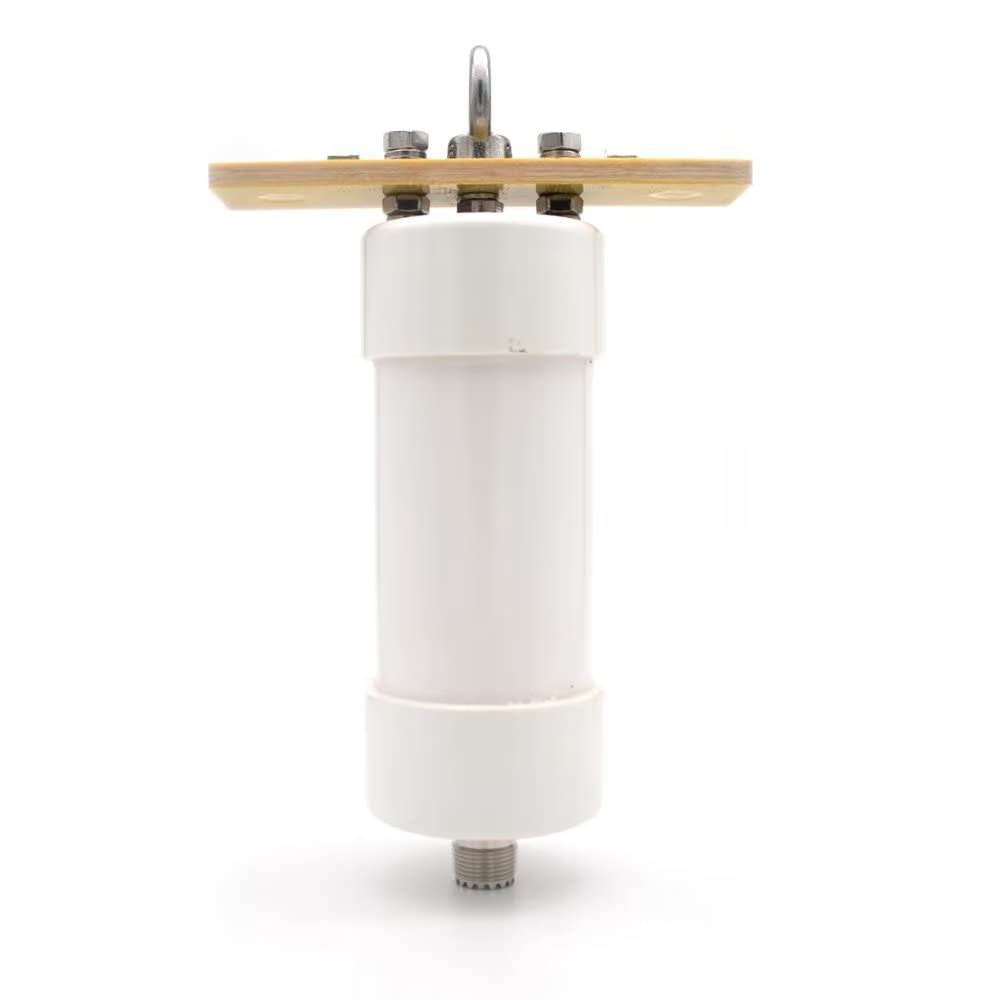

1:12 balun 1000w short wave single sideband radio 50 ohm unbalanced to 600 ohm balanced

Description

• The conversion ratio is1:12
• Input impedance: 50 ohms (unbalanced)
• Output impedance: 600 ohms (balanced) (used for ladder-shaped balanced line transmission)
• Frequency range: 1.5-30MHz
• 1 X 1:12 1.5-30MHz Ratio 1000W Balun

Features:

1. The conversion ratio is 1:12

2. Input impedance: 50 ohms (unbalanced)

3. Output impedance: 600 ohms (balanced) (used for ladder-shaped balanced line transmission)

4. Frequency range: 1.5-30MHz

5. Standing wave: less than 1.5

6. Endurance power: 1000w

7. Dimensions: outer diameter 57x175mm

8. Weight: 390 grams

9. Comes with epoxy resin board and 304 stainless steel lifting ring, and comes with two copper noses for connecting the antenna vibrator, which is convenient for users to use

Package Contents

1 X 1:12 1.5-30MHz Ratio 1000W Balun
