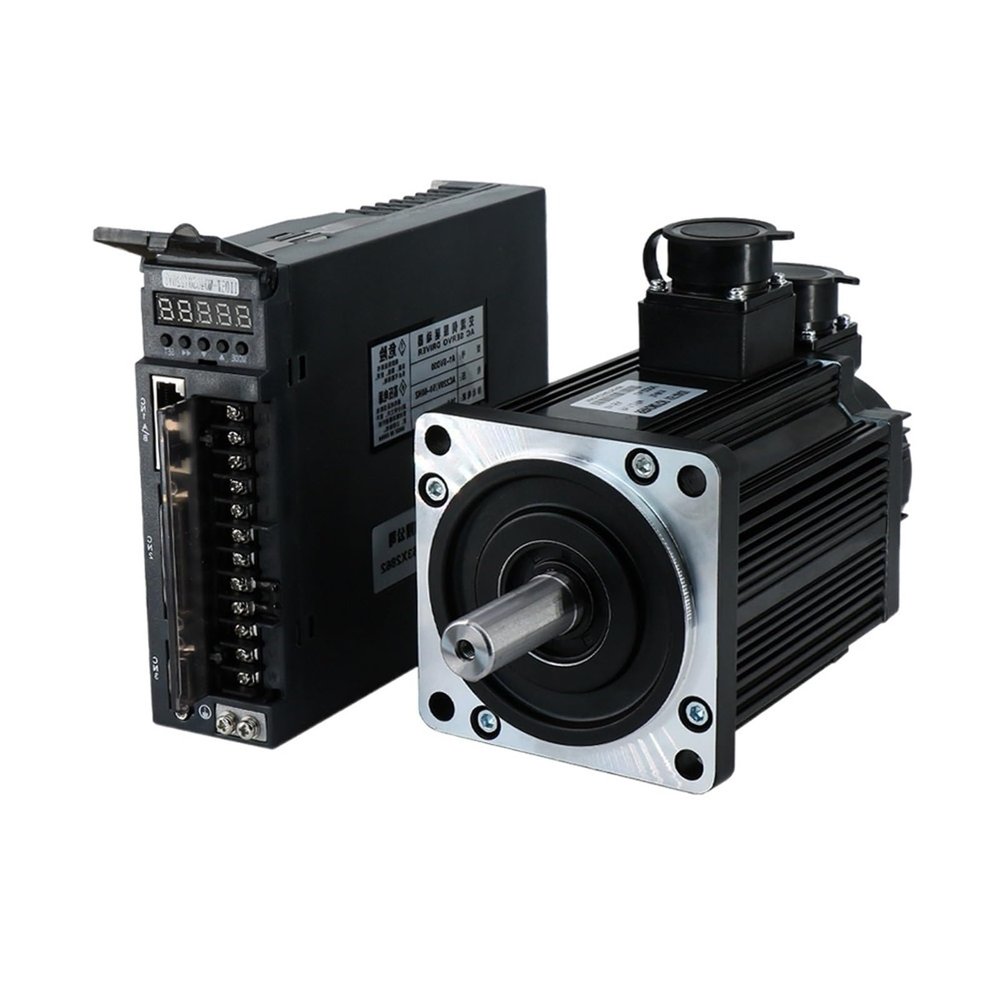

110ST-M04030 220V 380v 1.2KW AC Servo motor 3000RPM 4N.M 1200W Single-Phase ac drive permanent magnet Matched Driver A-SVD 30A (Size : With brake 380v 3M)

Description

• Motor Drives
• 110ST-M04030 220V 380v 1.2KW AC Servo motor 3000RPM 4N.M 1200W Single-Phase ac drive permanent magnet Matched Driver A-SVD 30A

Motor Drives
Motor Model
Power

Voltage
Driver
Cable Length
Brake
60ST-M01930
600W
1.9Nm
220V
A1-SVD-15A
AASD-15A
3/5/8Meter
Optional
80ST-M02430
750W
2.4Nm
90ST-M02430
110ST-M04030
1.2KW
4NM
220V
380V
A1-SVD-30A
AASD-30A
130ST-M10025
2.6KW
10NM
130ST-M15015
2.3KW
15NM
130ST-M15025
3.8KW
15NM
380V
AASD-25A
1* AC Servo Drive
A1-SVD-30A (220V) Or AASD-25A (380V)
1* 110servo motor
NOTE:Manual sent via email
WITH BREAK WITHOUT BREAK
1* 3M/5M/8M motor cable
1* 3M/5M/8M encoder cable
Note:
Please contact us, if you need:
1. English Manual
2. Motor with Brake
3. Longer Cable
4. MODBUS communication function for RS-232 and RS-485
if English Manualneeded, please download it through this link
https://drive..com/file/d/1foIBUcwy4Iu9xyOOKk9rC2dLUWJoE-Mh/view?usp=sharing
1.Stable performance and fast response
2.Advanced heat dissipation design process
3.Applicable to various automation equipment
Motor Model
110ST-M04030
Rated Power(kw)
1.2
Rated Voltage(v)
220
Rated Current(A)
5.0
Rated Speed(rpm)
3000
Rated (N.m)
4
Peak (N.m)
12
Voltage Constant(V/1000min)
54
Coefficient(N.m/A)
0.8
Rotor Inertia(Kg.mz)
0.54*10^-4
Line-line Resistance ()
1.09
Line-line Inductance(mH)
3.3
Electrical Time Constant(Ms)
3.0
Weight(kg)
5.5
Encoder Line Number(PPR)
2500
Insulation Class
Class B(130)
Safety Class
IP65
The Operation of Environmental Conditions
Temperature: -20~+50
Humidity: Below 90% RH NO Dewing
Motor Winding Plue
Winding Load Wire
U(Red)
V(yellow)
W(blue)
PE(yellow-green/black)
Plug Serial Number
1 2 3 4
Encoder Plug
Signal Lead Wire
5V
0V
B+
Z-
U+
Z+
U
