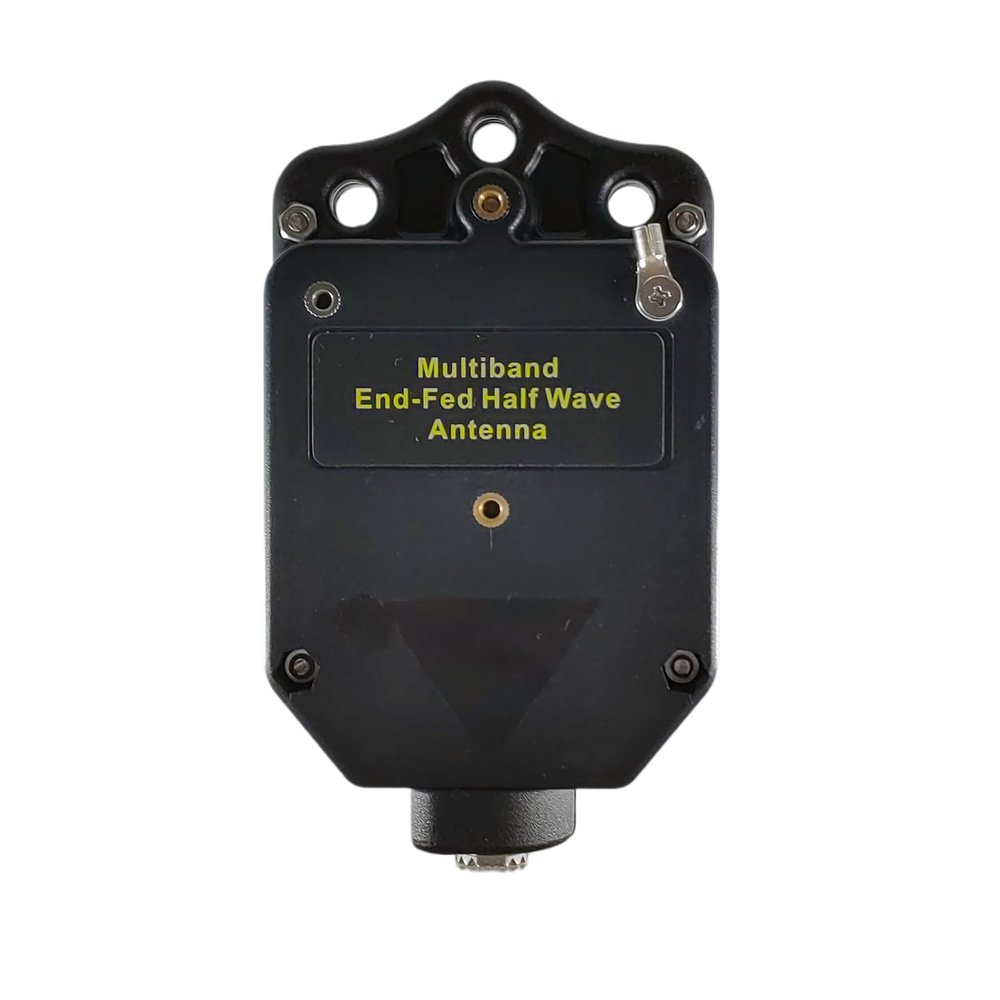

1:1 Balun Antenna 1000W 1-54MHz HF Antenna Balun WOOKLEA CW FM AM FT4 FT8 SSB FT8,4 Band 8 Band Half Wave Radio Antenna Suitable for Outdoor
£66.68
£111.13
Save 40% (£44.45)
-
Order within 2 hours and 25 minutes to get between May 21 - May 27 -
Tracked Shipping on All Orders
-
14-Day Returns
- Secure Payments
-
24/7 Customer Support
Description
- Exceptional Performance: This HF antenna operates within a wide frequency range of 1-54MHz,ratio that reduces signal loss, enhances reception efficiency, and ensures compatibility with various communication modes, maintaining stable signal quality even for long-distance communication
- Frequency Bands and Power: This half wave antenna supports power levels (SSB<1000W,CW,FM,AM,FT4,FT8<500W) and frequency bands (80m,60m,40m,30m,20m,16m,12m,10m and 6m) to meet various usage requirements and scenarios
- Wire Requirements: The antenna wire for ham radio consists of a 1:1 impedance converter and 20 or 40.7 meters (adjusted by an antenna analyzer to adjust the length of the oscillator). It is a 4-band and 8-band shortwave single ended feeding antenna, belonging to multi band and multi-directional antennas
- Premium Materials: This balun antenna is made of high-quality ABS material with high hardness, resistant to damage, and long service life, making it a limited choice for outdoor antennas
- Easy Installation: This antenna features a 1:1 balun with standard interface for quick and easy setup; compact size and portability make it suitable for both long-term outdoor installations and temporary setups during communication events, ready for emergency communication
- The function of Barun: The 1:1 current Balun (such as the magnetic ring Barron) can effectively "choke" or block the return of this unwanted common-mode current along the feeder shell, forcing the current to flow on the antenna oscillator according to the designed path. Therefore, it is also called "Common-Mode Choke"
- Adjustment of the antenna:The frequency of the antenna you receive is at the low end of each band. After erecting the antenna as required, you need to use an antenna analyser to adjust the repair length according to your frequency, but the length of both sides must be equal
