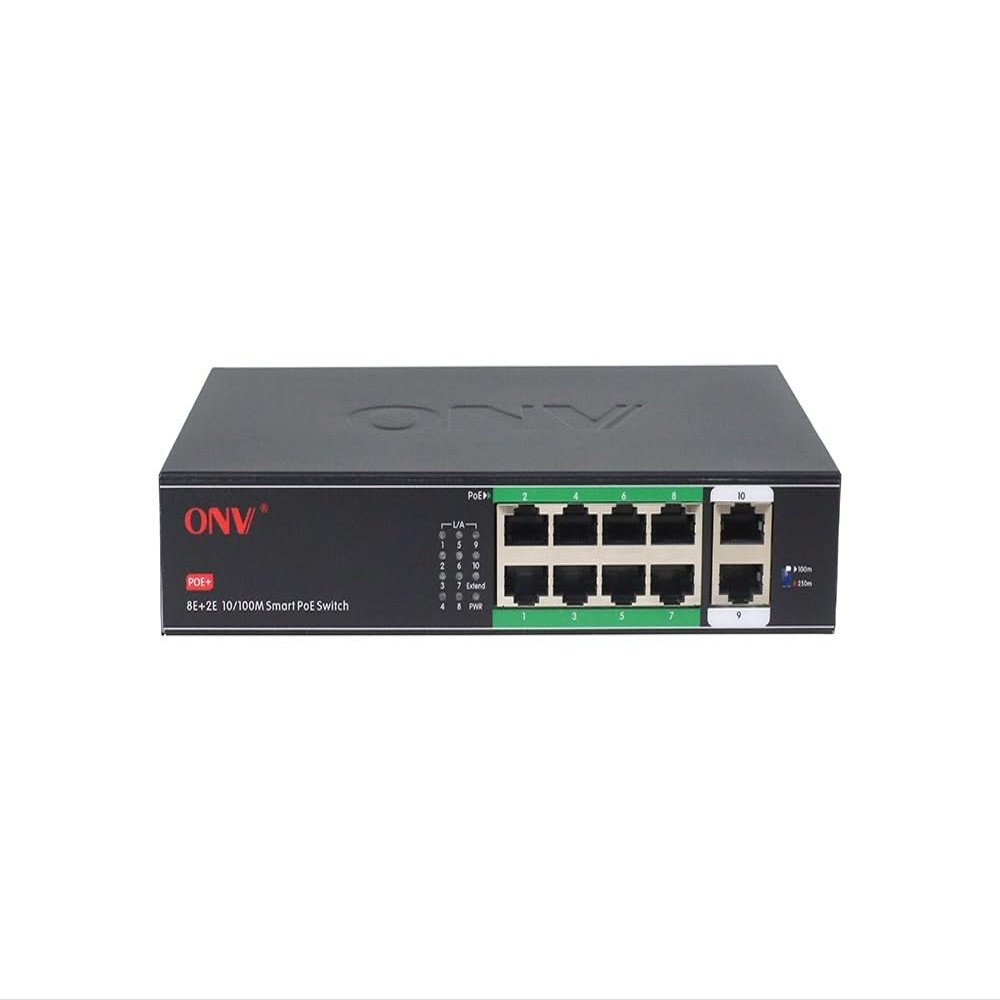

10-Port PoE Switch IEEE802.3af/at PoE Standard 10/100Mbps RJ45 Ports Unmanaged Port 1-8 Support 10M/250 Meters Transmission, Power Over Network Cable for IP Camera POE Terminal Equipment

Description

• 10Port PoE + SwitchThe smart switch has 10*10/100M RJ45 ports. Port 1-8can support IEEE 802.3 af/at PoE standard, and single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, IP cameras, VoIP phones, video access control intercoms, etc. through a network cable to meet the network environment that needs a high-density PoE power supply.
• Innovative FunctionThe smart 10port POE switch has two modes, Long distance mode(250m): When opening, the speed of port 1-8 is reduced to 10M. With the existing twisted pair cable, the transmission limit of the twisted pair line can be broken, and the transmission distance can reach 250 meters, on the other hand, It can solve the problem of poor transmission caused by line aging. Video monitoring mode: When turned on together with the long-distance switch (250m), ports 1-8 are isolated from each other and ports 9-10 are interoperable, which can prevent DHCP conflicts, optimize port cache utilization, and reduce broadcast storms.
• Innovative FunctionThe smart 6port POE switch has two modes, Long distance mode(250m): When opening, the speed of port 1-4 is reduced to 10M. With the existing twisted pair cable, the transmission limit of the twisted pair line can be broken, and the transmission distance can reach 250 meters, on the other hand, It can solve the problem of poor transmission caused by line aging. Video monitoring mode: When turned on together with the long-distance switch (250m), ports 1-4 are isolated from each other and ports 5-6 are interoperable, which can prevent DHCP conflicts, optimize port cache utilization, and reduce broadcast storms.
• Stable & ReliableThe smart POE switch can plug and play, no configuration, simple and convenient.The user-friendly panel can show the device status through the LED indicator of PWR, and PoE. Self-developed power supply, high redundancy design, providing a long-term and stable PoE power output. Low power consumption, galvanized steel casing, no fan, and excellent heat dissipation ensure the stable operation of the switch.
• Widely UsedPoE switches are rigorously tested for reliability, quality, and performance. It is suitable for hotels, campuses, parks, banks, hospitals, factories, and small and medium-sized enterprises to form a cost-effective network. Unmanaged mode, plug, and play, no configuration, easy to use.

Model:ONV-H1108PL
Interface Characteristics
Fixed Port:
8*10/100Base-TX PoE ports (Data/ Power)
2*10/100Base-TX uplink RJ45 ports (Data)
Ethernet Port:
Port 1-6/ 1-10 can support 10/100Base-TX auto-detection, full/ half-duplex MDI/ MDI-X auto-sensing
Functional switch:
1*(Extend+ VLAN) Note: When the switch status changes, the PoE switch must be restarted for the function switch to take effect.
Twisted Pair Transmission:
10BASE-TX: Cat3,4,5 UTP (250 meters)
100BASE-TX: Cat5 or later UTP (100 meters)
Chip Parameter
Network Protocol: IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x
Forwarding Mode: Store and Forward(Full Wire Speed)
Switching Capacity: 2Gbps (Non-blocking)
Forwarding: 1.488Mpps
Rate@64byte
MAC: 1K
Buffer Memory: 768K
Jumbo Frame: 9.6K
LED Indicator:
Power: PWR (Green), Network: L/A(Yellow), PoE: PoE (Green)
Functional switch: 100m/250m (Green)
PoE & Power Supply
PoE Port: Port 1 to 8
Power Supply Pin: 1/2(+) 3/6(-)
Max Power Per Port: 30W, IEEE 802.3 af/at
Total PWR / Input Voltage: 120W/ (AC100-240V)
Power Consumption: Standby <5W, Full load <120W
Power Supply: Built-in power supply, AC100~240V 50-60Hz, 2.0A
