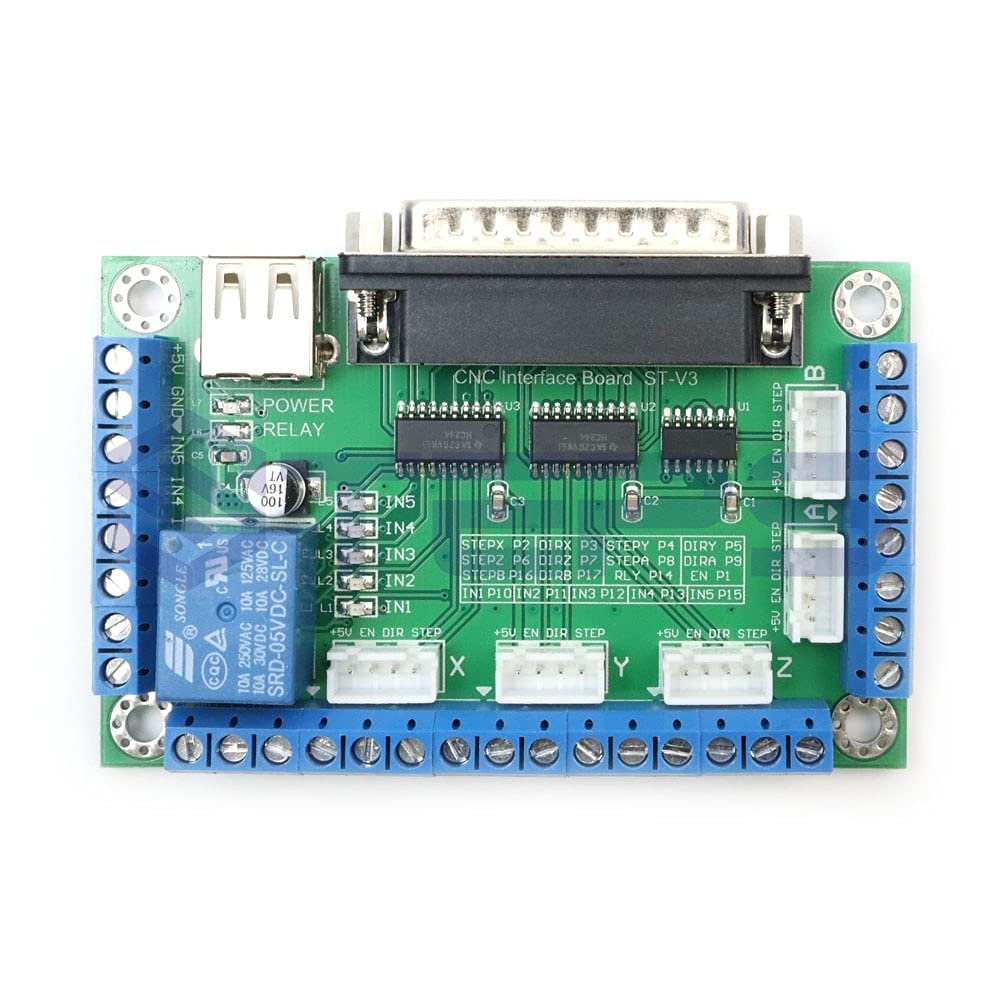

10PCS/lot CNC 5 Aixs Breakout Board + one usb caple

Description

• 1.full support for , KCAM4, EMC2, and support parallel port to control the host computer software.
• 2.5 output signal ,can connect 5 stepper motor driver .
• 3.5 input port, Can connect to the limit switch, emergency stop, or other Input devices ,5 input signal indication LED.
• 4.One relay, it can be used to control spindle start and stop,1 signal indication LED beside relay.
• 5.power supply have 2 choice, USB power form computer or an external 5V power supply.

Electrical Drawing:
Features:
1.full support for , KCAM4, EMC2, and support parallel port to control the host computer software.
2.5 output signal ,can connect 5 stepper motor driver .
3.5 input port, Can connect to the limit switch, emergency stop, or other Input devices ,5 input signal indication LED.
4.One relay, it can be used to control spindle start and stop,1 signal indication LED beside relay.
5.power supply have 2 choice, USB power form computer or an external 5V power supply.
6.pulse and direction signal shaping,enhanced, data transfer speeds reach 10 MBit / S.
7.have 2 kinds connector ,the 4PIN XH connector can connect driver convenient and efficient.
The Shopping List:
Warranty
1. All products have been checked and packaged in good condition before dispatch.
2. All products have 1 year warranty.
Item specifics:
Model number: 5 axis
Motor type: Stepper Motor
Certification: NONE
Origin: Mainland China
Place of origin: Jiangsu, China (Mainland)
