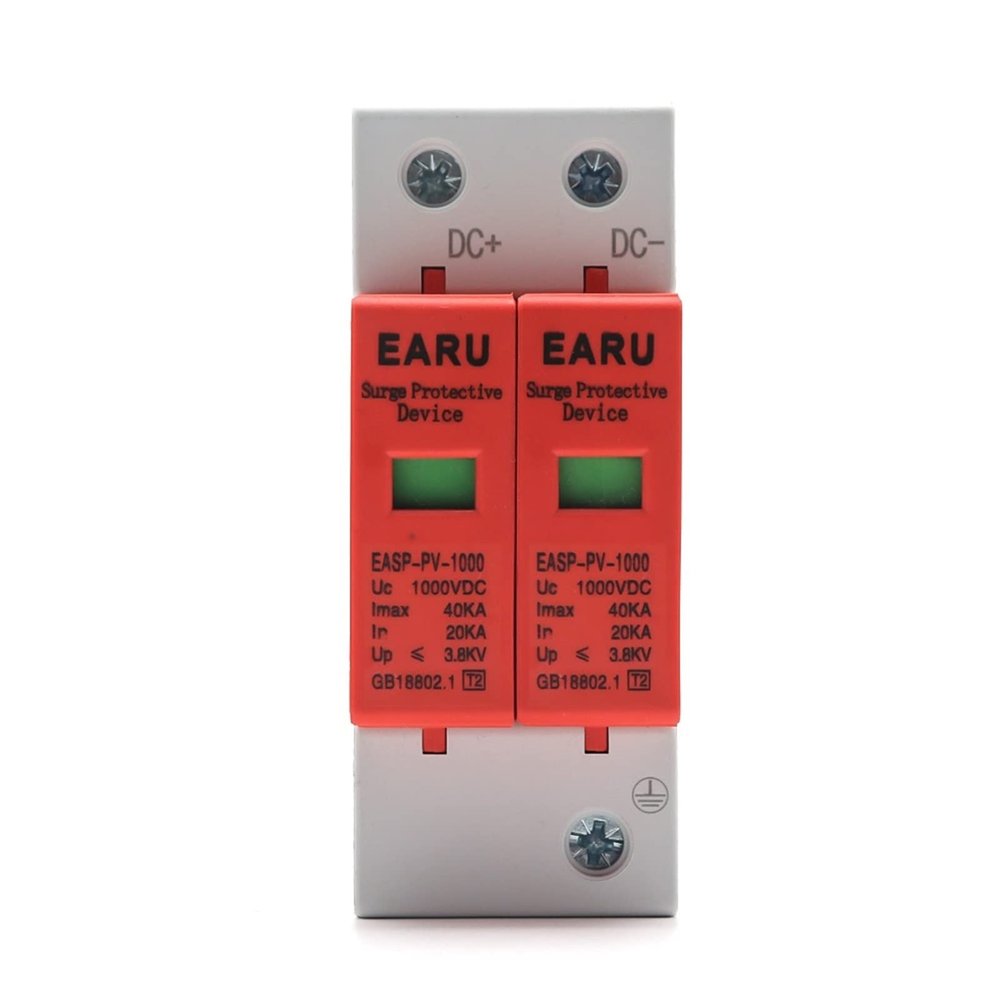

10pcs SPD DC 500V 800V 1000V 2P 20~40KA Surge Protection Protector Device Arrester Low Voltage House 2 Poles PV Photovoltaic(DC 500V)

Description

• Surge Protectors

Surge Protectors
These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed
location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is
external and long.
High energy MOVs equipped with specific thermal disconnectors and related failure indicators.
Item
DCSURGEPROTECTIVEDEVICE
Code
EASP-PV
Pole
2P
3P
Voltage
500VDC,800VDC, 1000vdc
500VDC,800VDC,1000VDC
In(8/20)us(KA)
20KA
Imax(8/20)us(KA)
40KA
Standard
IEC/EN61643
Type
II
CharacteristicCurve
B,C,D
WorkingTemperature
"-5"to+40
ProtectionDegree
IP20
Electricallife
Morethan8000times
Mechanicallife
Morethan2000times
Dimension(W)X(H)X(D)
36x90x68
54x90x68
Installation
35MMDINRAIL
Accessory
Remotesignal
InstallationAltitude
2000M
