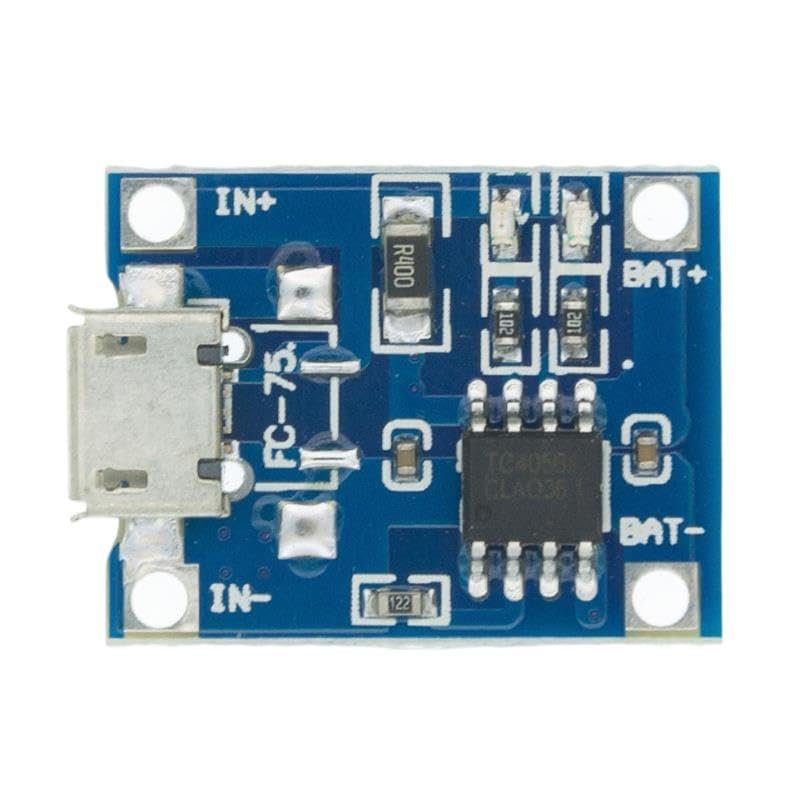

10pcs Micro USB 5V 1A 18650 TP4056 Lithium Charger Module Charging Protection Dual Functions 1A Li-ion (Color: TP4056 Micro)

Description

• Type: Other
• Size (1S 2S BMS): 23.6 * 11.28mm
• Supply Voltage: 1
• Size (3S 4S 5S BMS): 54.66 * 17.98mm

Item :
ote: The charge should disconnect the load terminal on the positive negative can not be wrong, please according to specifications, otherwise it will damage directly.
Module s parameters:
Inputs MICRO USB female, can be directly input to do the phone charger rechargeable lithium battery,
And still retains the input voltage wiring pads, can be very convenient DIY
Input voltage: 5V
Charging cut-off voltage: 4.2V 1%
Maximum charge current: 1000mA
over-discharge protection voltage: 2.5V
overcurrent protection current: 3A
size: 2.6 x 1.7CM

Instructions:
Note: The first time access the battery, it may no voltage between the output + OUT-, then access 5V voltage charge your can activate the protection circuit, the from the B + B-, then draw a line on the short open also recharged to activate the protection circuit. that the charger must be able to output 1A or more to do when using a mobile phone charger input, or may not charge
+ MICRO USB female next - pads for the input, access 5V. B + positive then the lithium battery, B- then negative lithium batteries. + OUT- connected to the load, such as positive negative electrodes connected mobile booster plate or other load.
the to the B + B-, inserted into the USB female mobile phone charger, the is being charged, the to full.

Specification:
Supply Voltage: 1
Type: Other
Size (3S 4S 5S BMS): 54.66 * 17.98mm
Size (1S 2S BMS): 23.6 * 11.28mm
Short circuit protection: Yes
Over current protection: Yes
Current range: 30A ~ 500A
size: 1.5*3cm
Charging current: 1-10A
3.2V overdischarge release voltage: 2.55V
3.7V Overdischarge release voltage: 3V
3.7V: Lithium
3.2V: LiFePO4
