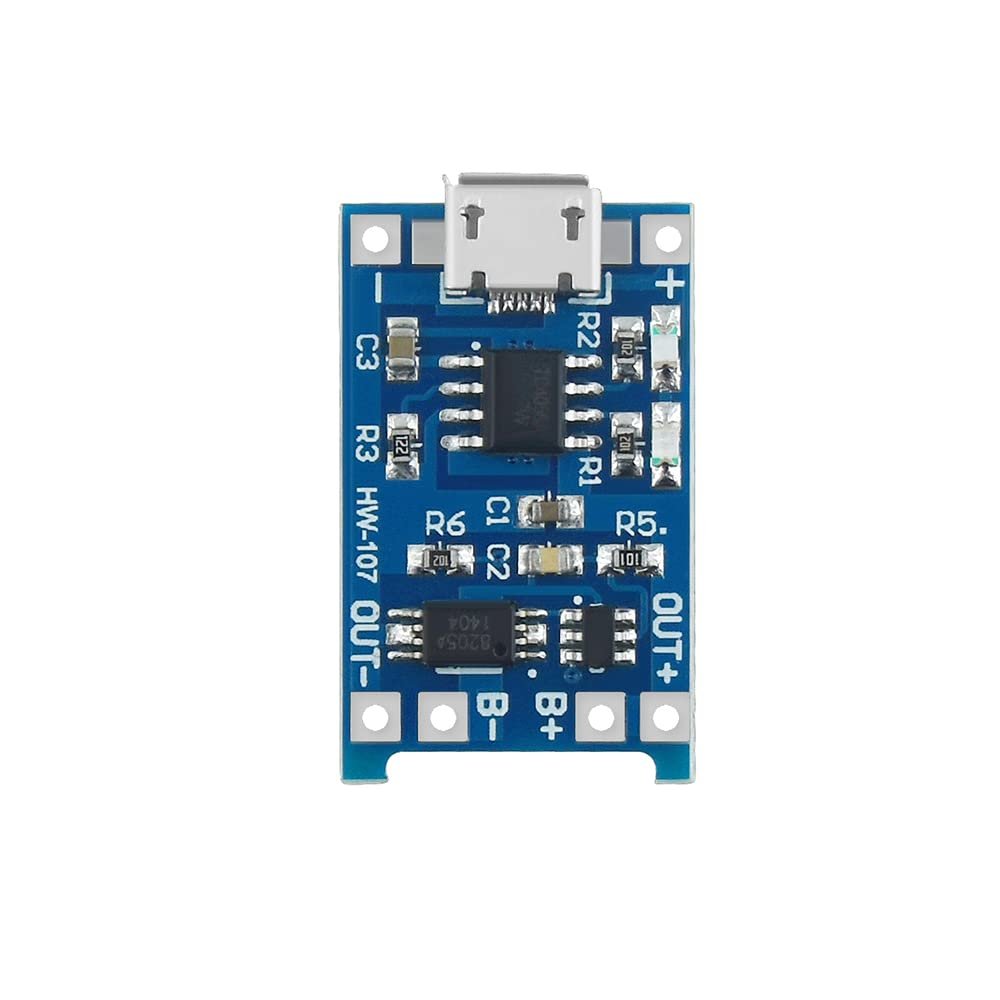

10pcs Micro USB 5V 1A 18650 TP4056 Lithium Battery Charger Module

Description

• Note that the charger must be able to output 1A or more to do when using a mobile phone charger input, or may not charge
• Connect the battery to the B + B-, inserted into the USB female mobile phone charger, the red light is being charged, the green light to full.
• Inputs with MICRO USB female, can be directly input to do with the phone charger rechargeable lithium battery,And still retains the input voltage wiring pads

Origin:CN(Origin)
Type:Voltage Regulator
Model Number:18650 TP4056
Operating Temperature:- 40C~+85C
Input voltage: 5V
Charging cut-off voltage: 4.2V1%
Maximum charge current: 1000mA
Battery over-discharge protection voltage: 2.5V
Battery overcurrent protection current: 3A
Board size: 2.61.7CM

The first time you access the battery, it may no voltage between the output OUT + and OUT-, then access 5V voltage charge your energy can activate the protection circuit, and the battery from the B + B-, then draw a line on the short open also need recharged to activate the protection circuit.
