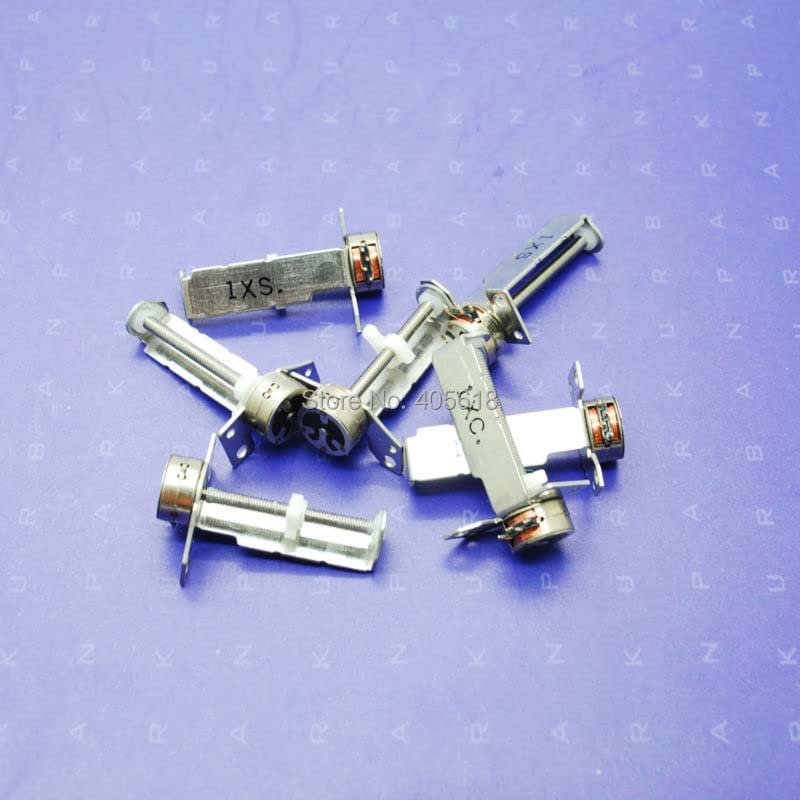

10pcs Japan 4 Wire 2 Phase Miniature stepper motor dia 7mm with a small division bar for camera

Description

• Current / phase: 2
• Holding torque: -
• Step angle(degrees): -
• Phase: 2
• Model number: R

NEW 10pcs Japan 4 Wire 2 Phase Miniature stepper motor dia 7mm with a small division bar for camera
Specifications:
Stepper motor diameter: 7 MM
Height: 4 MM
Output shaft: 1.5 MM (with a small division bar)
The output shaft length: 19 MM
Two-phase four-wire stepper motor has two windings: A, B. A winding through the forward current use (+ A) represents. through reverse current use (-A) represents. B winding expressed as above.
Energized order:
Two-phase, four-beat: (+ A) (+ B) - (-A) (+ B) - (-A) (-B) - (+ A) (-B) -
Single-phase, four-beat: (+ A) - (+ B) - (-A) - (-B) -
Eight-shot, half: (+ A) (+ B) - (+ B) - (-A) (+ B) - (-A) - (-A) (-B) - (- B) - (+ A) (-B) - (+ A) -
Item specifics:
Current / phase: 2
Holding torque: -
Step angle(degrees): -
Phase: 2
Model number: R
Type: Permanent Magnet
Certification: CCC,ce,ROHS
Is customized: Yes
