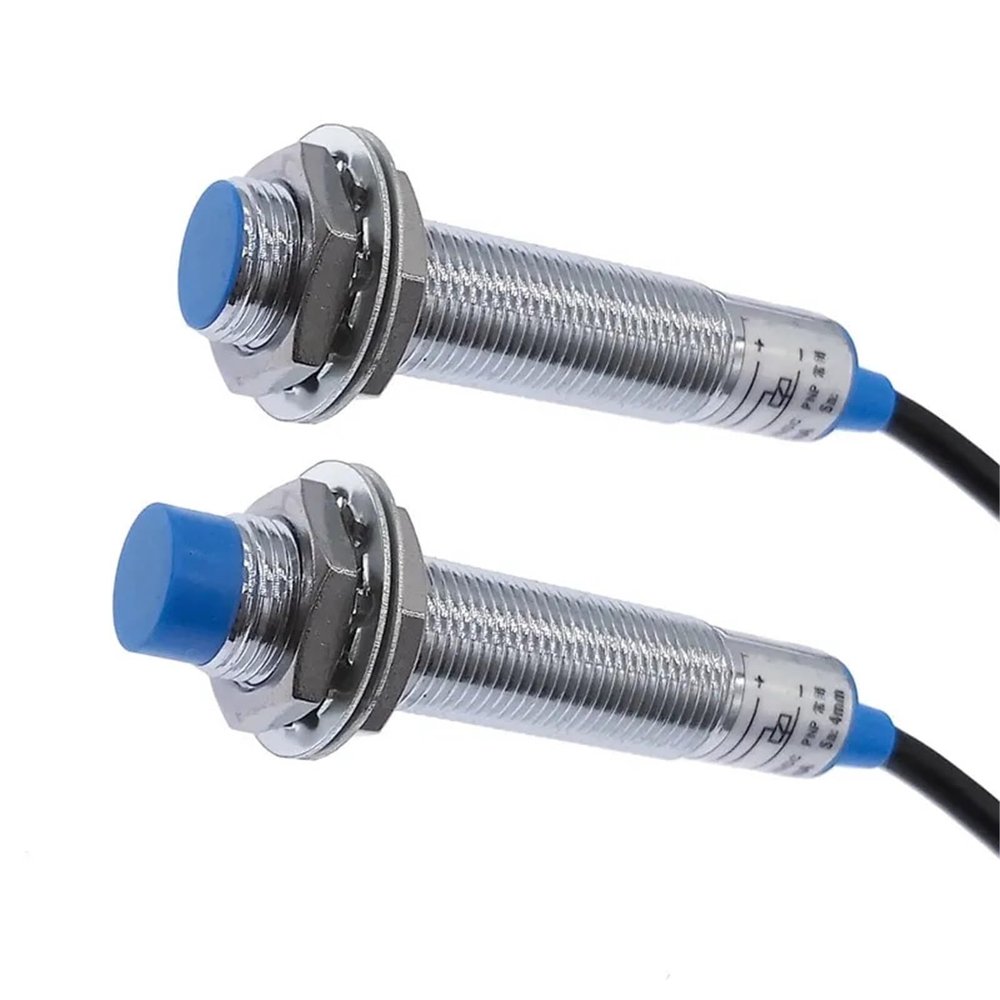

10PCS Inductive Proximity Switch LJ12A3-4 BX by AX AY LJ12A3-4-J/EZ NPN Z/CY PNP Sensor NO NC DC6~36V 4mm Detection Distance(LJ12A3-4-Z-CX)

Description

• Switches
• 10PCS Inductive Proximity Switch LJ12A3-4 BX BY AX AY LJ12A3-4-J/EZ NPN Z/CY PNP Sensor NO NC DC6~36V 4mm Detection Distance

Switches
LJ12A3-4-Z/BY: PNP NO3-Line type 12mm diameter ; 4mm detection distance
LJ12A3-4-Z/AY: PNP NC3-Line type 12mm diameter ; 4mm detection distance
LJ12A3-4-Z/BX: NPN NO 3-Line type 12mm diameter ; 4mm detection distance
LJ12A3-4-Z/AX: NPN NC 3-Line type12mm diameter ; 4mm detection distance
LJ12A3-4-Z/CX: NPNNO+NC 4-Line type12mm diameter ; 4mm detection distance
LJ12A3-4-Z/CY: PNPNO+NC4-Line type12mm diameter ; 4mm detection distance
LJ12A3-4-Z/EX:NO 2-Line type12mm diameter ; 4mm detection distance
LJ12A3-4-Z/DX:NC 2-LineDCtype12mm diameter ; 4mm detection distance
LJ12A3-4-J/EZ: NO2-Line AC type12mm diameter ; 4mm detection distance
LJ12A3-4-J/DZ: NC 2-Line AC type12mm diameter ; 4mm detection distance
[Main Parameter]
Detection distance :4mm 10%
Set distance:0~3.6mm
Current: 6V 360mA, 12V 200mA, 24V 96mA, maximum instantaneous current 2A
Delay distance:10% below of the detection distance
Detection object:Magnetic metal(the detection distance decreases when it is non-magnetic metal)
Stand detection object:Iron 15*15*1mm
Response frequency::0.5kHz
Supply voltage: type:DC12V DC24V DC36V(6~36V)impulse(p-p)10% below
Withstand voltage:AC1000V 50/60Hz 1min between charging part and housing
Meterial:(Housing:Nickel plated brass) (Detection surface:ABS)
This product can be applied to control relays, counters, etc.!
==========
Current : 100A
Material : Alloy
Switch Type : Proximity Switch
Model Number : LJ12A3-4-Z/BY/AY/BX/AX
Features : Proximity Sensor switch
Item Type : SWITCHES
Product Name: : Proximity Sensor switch
Voltage: : 6~36V (9V 12V 18V 24V 36V)
The diameter : 12mm
Detecting distance: : 0~4mm
Switch Type: : PNP/NPN NO/NC
Wire: : 3-Wire type
