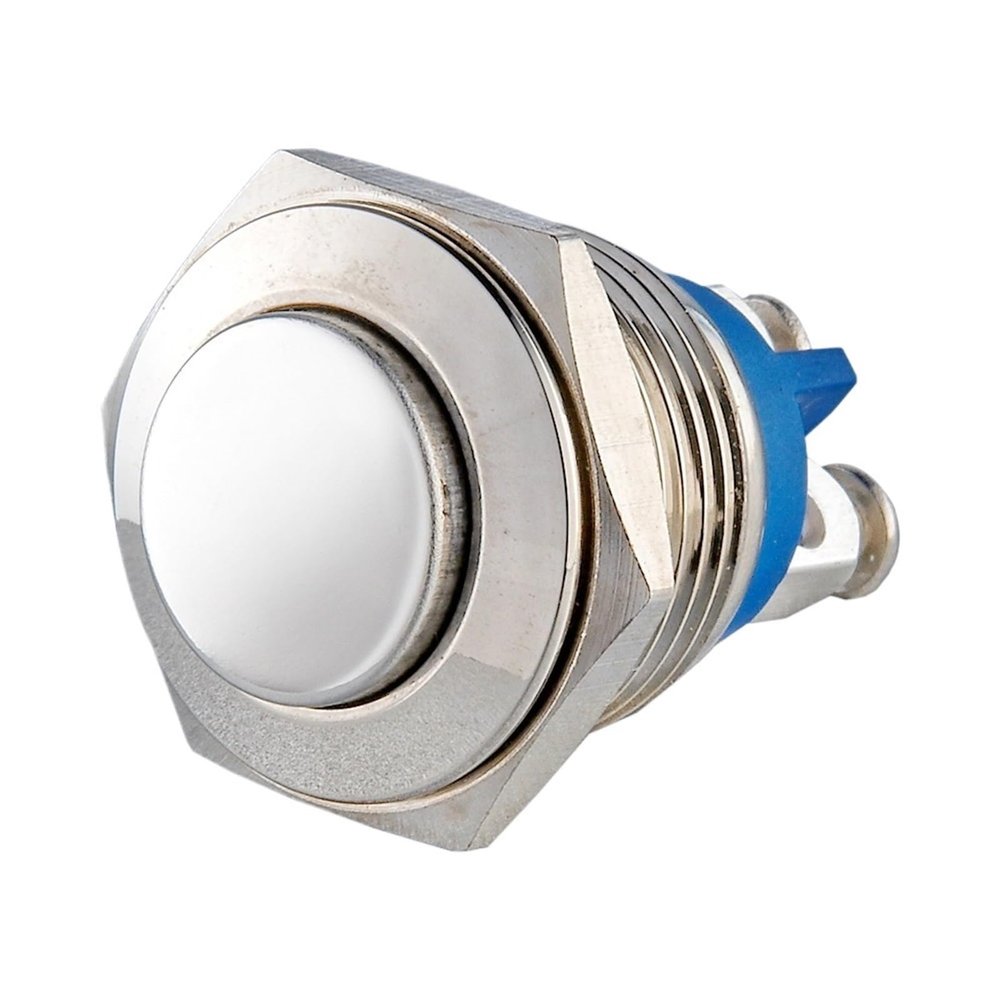

10pcs High Flush Head 16mm IP65 Metal Push Button Switch Waterproof Self-Reset Momentary Locking Latching NO(Locking)

Description

• Switches
• 10pcs High Flush Head 16mm IP65 Metal Push Button Switch Waterproof Self-reset Momentary Locking Latching NO

Switches
16mm Raised Head Reset Momentary Push Button Switch with Screw Terminal
Contact Structure: 1NO
Front Shape: Flat
Terminal Type: Screw Terminals
Max. Switch Rating: 2A/48V DC
Contact Resistance: 50m
Insulation Resistance: 1000m
Dielectric Strengh: 2000VAC
Operation Temp. : -20oC ~ +55 oC
Mechanical Life: 1, 000, 000cycles
Electrical Life: 200, 000cycles
Contact Material: Silver Alloy
Panel Thickness: 1~10mm
Tq: 5~14Nm
Operation Pressure 4N
IP Degree: IP65
Function
Momentary: Means that when you push switch and then move your finger, the actuator will back to the position.
Waterproof
As it is full metal appearance and with a rubber ring, the switch achieves IP65 waterproof degree. It can used in wet environment, such as boat control panel, kitchen, outdoors etc.
Long Work Life
The metal shell and push part is not easy to damage. The Mechanical work Life is 1,000,000 times The switch use Silver Alloy contact to make the Electrical Work Life more than 50,000 times.
Pure Led Lights
Switch use Light-lasting lamp beads, bright and dazzling brightness, long service life.
The work life of the led light is more than 40,000 hours.
Use bidirectional lamp bead: + and - wires can inversed without any risk.
Widely Use
It can use as a door bell, entrance guard push button switch in the outdoors. As it is IP65, it can work relatively harsh
environment.
It is also a good choice to use it as a replacement switch of household Appliances. Such as table lamp switch, PC switch, Audio
switch.
Use this switch to replace the light switch, horn switch or other control switches in the cars/ boats/ trucks. Bright and comfortable Led and metal appearance make the switch very cool
==========
Current : 2A
Material : Copper
Switch Type : Push Button Switch
Warranty : 1 year
Model Number : 16-A3
Features : waterproof
Item Type : SWITCHES
Is Smart Device : No
Function : Momentary normal open
Terminal : screw terminal
Size : 16mm
Flat : high flat
