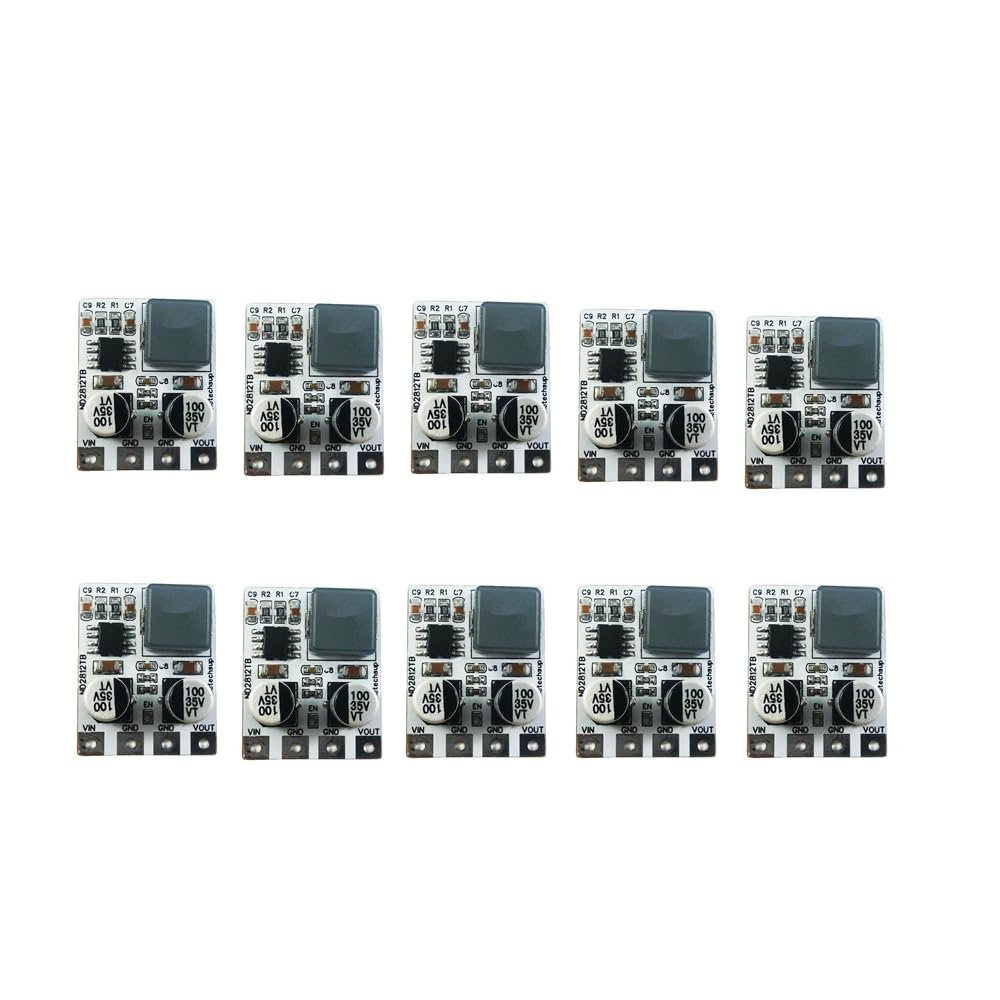

10PCS Down Regulator 5A High Efficiency Fast Response Synchronous Step 4.5-28V to 3V 3.3V 4V 5V 6V 9V 10V 12V DC-DC Buck Converter (10PCS 3V3)

Description

• Instant PWM architecture to achieve fast transient responses
• 4A continuous, 5A peak load current capability
• Under-voltage protection (UVP)
• External softstart limits

Product Name:
5A High Efficiency Fast Response Synchronous Step Down Regulator 4.5-28V to 3V 3.3V 4V 5V 6V 9V 10V 12V DC-DC Buck Converter

Packing list:
10 PCS 5A DC 4.5V-28V to DC 3V 3.3V 4V 5V 6V 9V 10V 12V DC-DC Buck Converter module
(Please select the version you need)

Description:
High Efficiency Fast Response Synchronous Step Down Regulator
3V :Input voltage 4.5~28V,output 3V

3.3V :Input voltage 4.5~28V,output 3.3V

4V :Input voltage 4.8~28V,output 4V

5V :Input voltage 6~28V,output 5V

6V :Input voltage 7~28V,output 6V

9V :Input voltage 10~28V,output 9V

10V :Input voltage 11~28V,output 10V

12V :Input voltage 13~28V,output 12V
Maximum output current 4A,Short time maximum output current 5A
(With good heat dissipation)

DC-DC Step-Down Converter module working frequency 500KHz. efficiency is 81-94% .

Quiescent current: 300-400uA

Operating Temperature :40C to +105C

Size : 27.5 x 22 x 9mm

Weight : 5g

Features :
Instant PWM architecture to achieve fast transient responses
4A continuous, 5A peak load current capability
Under-voltage protection (UVP)
External softstart limits
Over-Current Protection (OCP)
Output short circuit p otection with current fold back
Over-Temperature Shutdown

Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Applications:
DC motor power supply
WIFI Router Ethernet Switch
Network Equipment
Multimeter instrumentation
PTZ CCTV Camera
Electric toys
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
Battery powered equipment
Audio amplifier
