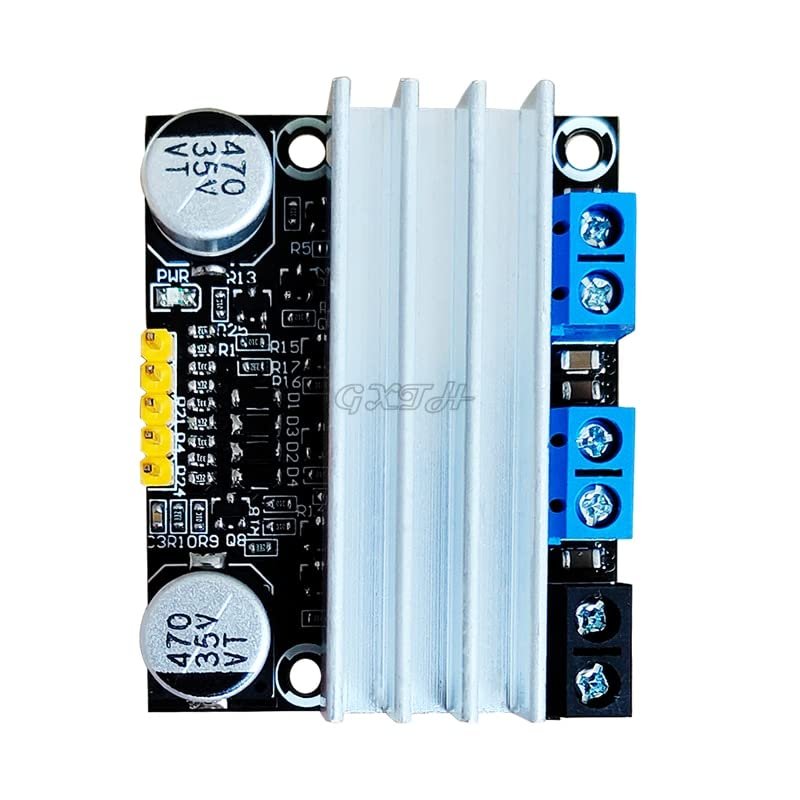

10A Dual Channel DC Motor Drive Module Forward And Reverse PWM Speed Regulation Dimming 3-18V Low Voltage High Current

Description

• Color: Black
• Power supply: DC
• Model number: Dual motor drive
• Motor type: DC Motor
• Origin: Mainland China

Product parameters
1. The dual H-bridge motor can drive two DC motors or one 4-wire two-phase stepping motor at the same time, or one end of the load can be grounded to control four.
2. Module power supply voltage: 3V-18VDC.
3. Power supply range of signal terminal: 3V-18VDC.
4. The single circuit working current is 10A, the peak current is 15A, and it is recommended to strengthen the heat dissipation when the current is above 8A.
5. Support PWM frequency range: 0-2KHz
6. Support duty cycle range: 0-100%
7. Installation hole diameter: 3mm
8. Size: 49 * 39 * 14mm
Item specifics:
Color: Black
Power supply: DC
Model number: Dual motor drive
Motor type: DC Motor
Origin: Mainland China
Certification: CE
