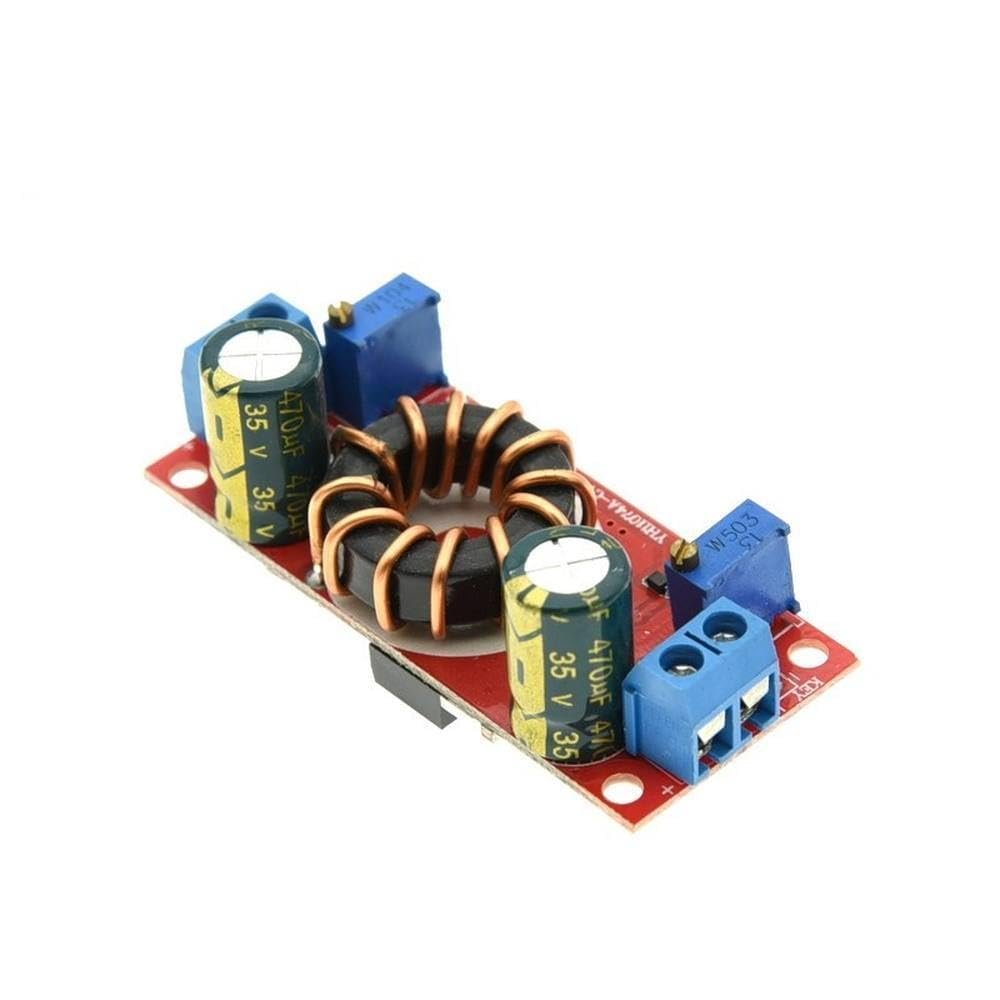

10A DC-DC 4-32V to 1.2-32V Step Down Module Solar Charger Constant Voltage Current Adjustable Buck Converter LED Driver

Description

• 10A DC-DC 4-32V to 1.2-32V Step Down Module Solar Charger Constant Voltage Current Adjustable Buck Converter LED Driver

Product Description

Module Name:10A synchronous buck constant voltage constant current

The modular nature :Non-isolated buck module (BUCK) synchronous rectification

Input voltage :4-32V ( limit 36V)Please keep the voltage margin.

Output voltage:1.2-32V continuously adjustable( The default output 5V, the treasurer For other voltages , please explain . )

1.2-32V fixed output( Please explain the required voltage to the treasurer )

Default shipping adjustable output ( when shipped transferred 5V / 6A)

The minimum differential input and output :1V

Output Current:0.4-10A Natural cooling time inside 6A, the temperature does not exceed 60 degrees . Deration is required at high ambient temperatures.

Output current range:0.3-10A

Operating temperature: -40 to + 85 degrees

Operating frequency:150KHz

Conversion efficiency :Highest 98%( Efficiency and input and output voltage, current , pressure -related )

Short circuit protection:There is( Constant current limiting current value )

Overtemperature protection:There is( Automatically reduce the output current after overtemperature )

Input reverse polarity protection :No( If you need please enter the string into the diode )

Output anti-anti- irrigation protection:No( If you need , please enter the string in the output diode for charging applications Please between the output and the battery modules plus blocking diode , otherwise it will damage the module. )

Installation:Four 3mm screws

Wiring:Terminals , free welding,IN is input , OUT for output ,With housing for wire bonding module output .

Module size:Length 60mm width 26mm height 20mm

Applications:

1, DIY a power supply, with a constant function , not afraid to use the process will be a short circuit , can protect the load .

2 , the power supply for
