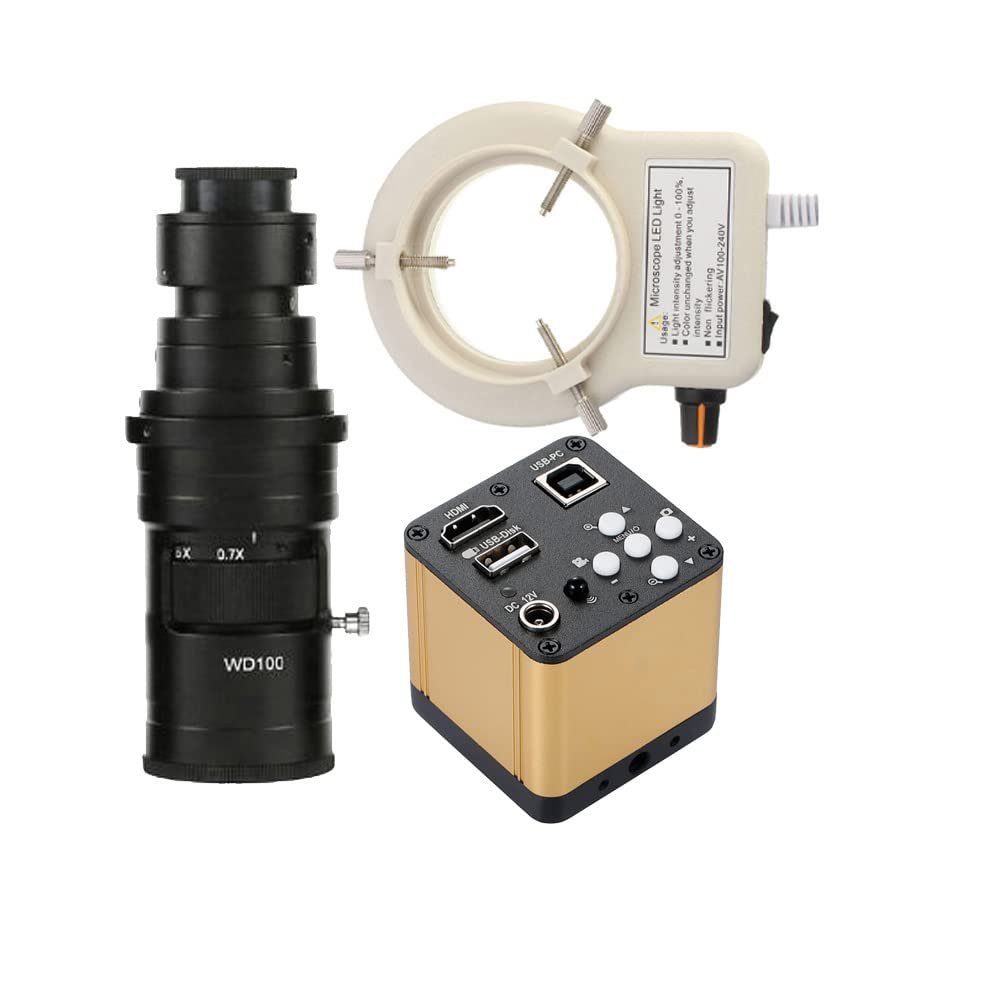

1080P HDMI USB Industrial Electronic Microscope Camera with U Disk Video Recorder, 200X C-Mount Lens, and 56-LED Adjustable Ring Light - Ideal for Welding Repair and More

Description

• High-resolution 1080P HDMI output and USB connectivity for clear and detailed images
• U disk video recorder allows you to capture and store images and videos directly on a USB drive
• 200X C-Mount lens with adjustable magnification and focus for a clear view of even the tiniest details
• 56-LED adjustable ring light provides bright and even illumination, eliminating shadows and glare
• Rugged construction and high-quality components ensure reliable performance, making it ideal for industrial applications such as welding repair and electronics inspection.

56-LED Lamp:
Brightness Adjustable LED Microscope Lamp
Max output: 4.5W
Best Working Distance: 20mm-160mm
Power input: AC100-AC240V, 50-60HZ
Installation interface:58-65mm
Light Intensity Adjustment:0-100%
Applications: microscope illumination, machine vision system lighting, Eco-photography
lighting, Medical photography lighting, instrument lighting,etc.
Weight: 260g

200X C-MOUNT Lens:
Working distance:100mm -175mm
Connector:C mount
Zoom:continouasly variable zoom
Objective Magnification:0.7X - 5X(about 28 - 200X)
Eyepiece lens adapter:0.4X
Fixed position:50mm
Locking:0.7X - 5X Locking
Thread:42mm
Size:132mm(L) * 55mm(DIA)
C-mount lens: 400g

Camera Parameters:
Image resolution: 1920x1080
Frame rate: 60FPS
Sensitivity size: 1/2.8
Pixel size: 2.8um x2.8um
Lens interface: CS
Video output interface: HDMI USB dual output, USB-disk (U disk), USB-PC
Storage mode: U disk storage
Voltage: 12V
Power supply: 120mA
Scanning method: progressive scan
Shutter type: electronic shutter
Dynamic range: 69dB
Signal to noise ratio: 40dB
White balance mode: one-time white balance/manual/auto
Exposure adjustment: automatic/manual
Image adjustment: brightness, sharpness, contrast, saturation, black and white, mirror
image, negative film, freeze screen, thawing, half-screen contrast
Cross line function: support 32 horizontal and vertical lines, color and line width
adjustable
Language: Chinese/English
Appearance size: 51*51*55mm
