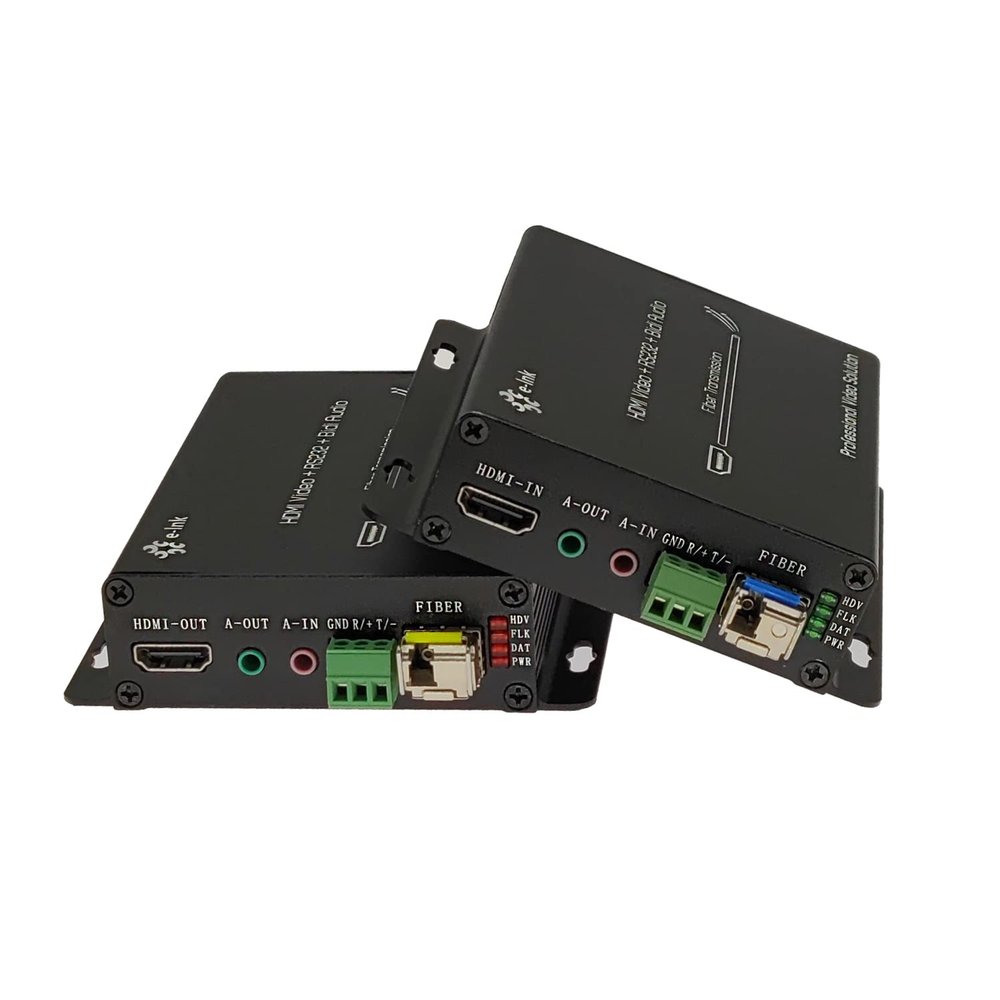

1080P HDMI Fiber Extender Full HD Uncompressed HDMI to Fiber Converter Support RS232 and Bi-Di External Stereo Audio, HDMI Over Fiber Single Mode Up to 20km

Description

• Bi-Di Audio TransmissionThe HDMI Fiber Extender with 3.5mm external stereo audio on both transmitter and receiver. You can do real-time intercom with others on the other side far away
• Support Backward RS232The HDMI optical transceiver supports serial RS232 signal, you can control the RS232 serial devices from remote side
• Full HD ResolutionHDMI fiber extender supports up to 1920*1200@60Hz resolution, specially supports 1600*1200@60Hz. Compatible backwards with lower resolution
• Uncompressed TransmissionHDMI to fiber converter can transmit Uncompressed signals up to 12.5 Miles with no delay and no loss, audio and video synchronous transmission. Original image quality you will see
• Unique DesignThe full HD HDMI fiber extender adopts harden aluminum material, can adapt harsh environment. Built-in ESD protection

Features:
-Transmit HDMI video signal, RS232 and audio up to 20km over single fiber
-Support video resolution up to 1920*1200 1080P@60Hz, specially support 1600*1200 @60Hz
-The HDMI Extender support external bidirectional stereo audio transmission
-High compatibility, can auto-match source and display device
-Built-in automatic adjustment system, make the image smooth, clear and stable
-Built-in ESD protection system
-Easy to install, plug and play, no need to set up

Specifications:
Standards: HDMI1.4B 3D; HDCP1.2
Maximum Bandwidth: 3Gbps
Maximum Data Rate: 2.97Gbps
Connector: Female HDMI type A
HDMI Cable Range: <16.5ft (5 Meters)
Supported Resolution: 1080P@50/59.95/60Hz, 1080P@23.98/24/29.97/30Hz, 1080i@50/59.94/60/Hz, 720P@23.98/24/29.97/30Hz, 720P@50/59.94/60Hz
Audio Support: Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Audio Interface: 3.5MM external stereo audio
RS232: Baud rate self-adaptive, max 115200bps
Interface: SFP model
Module Type: Single mode LC connector
Wavelength: 1310nm/1550nm
Power input: 5~12V DC
Operating Temperature: -5~+70
Dimensions (LxWxH): 120*83*28mm/4.72*3.27*1.10inch

Package:
1 * Transmitter, To Video Source
1 * Receiver, To TV/Display
2 * Power Adapter
2 * SFP Module
1 * HDMI Fiber extender Users Manual
