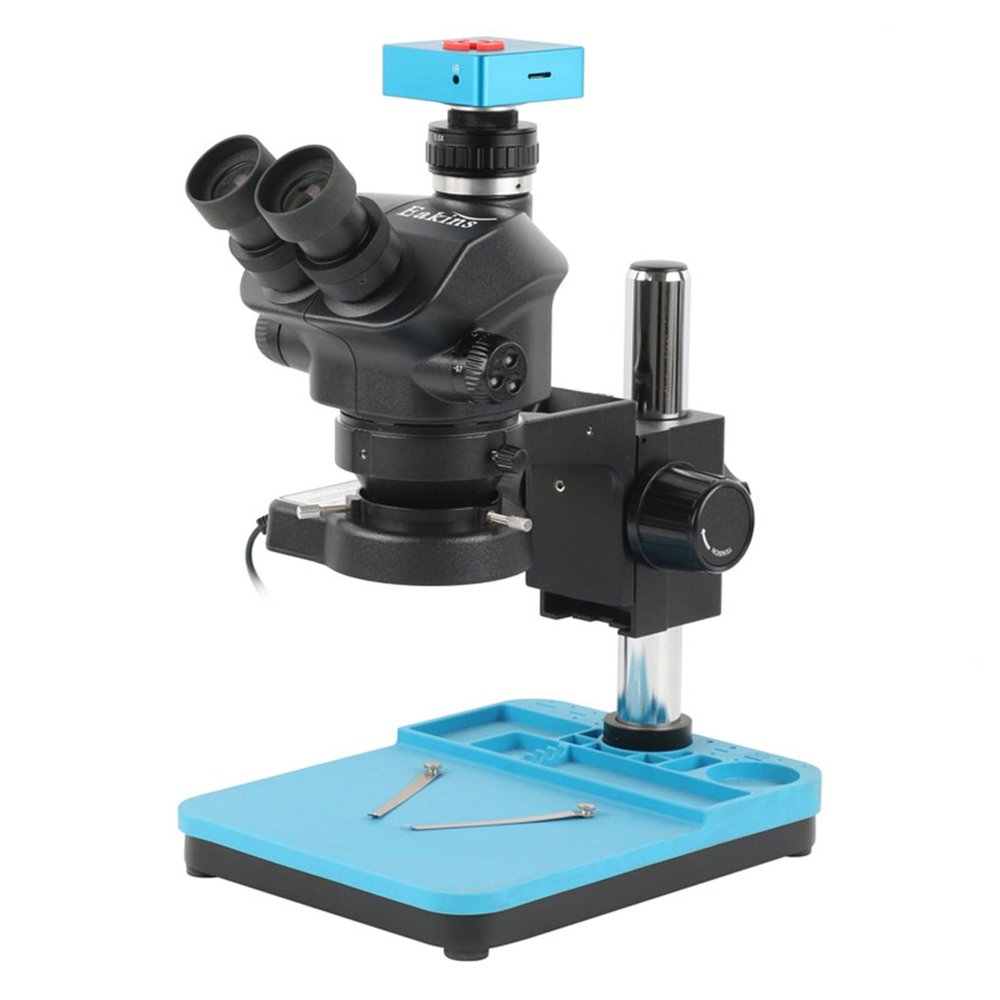

1080P 55MP 4K 2K USB HDMI VGA Video Camera 50X 100X Simul Focal Stereo Trinocular Microscope Set for Phone Soldering PCB Repair

Description

• Note: DMI port output uses HDMI monitor, Type-c and USB port uses PC, PC needs to install software, VGA port output uses VGA monitor, TF card interface is for storing pictures and videos, U disk interface is for storing pictures and videos!

Features

Microscope Head:
- Sharp stereo erect image. Standard working distance is 110mm, to create enough space for the uses.
- 45inclined and 360rotatable binocular head. The interpupillary distance is between 54-75mm. Observation head 45 inclined, diopter adjustment in two tubes, feel no fatigue when long time use.
- Wide field and high eyepiont eyepiece WF10X/22mm 10X large field of view eyepiece, FOV 22mm, plan and high eye-point design, more suitable for search and observation.
- Zoom Rate position: 0.7-5x
- Magnification: 7x-50x
- Working Distance: 110mm
- Installation diameter: 76mm
- Adjustable eyepiece: Standard WF10X22

76mm Microscope Stand:
Type: Microscope Stand
Connectiong Objective: DIA 76mm
Connectiong Pillar: DIA 32mm
Stand Size: 200mm x 255mm x 250mm
Support base: 32mm
Boom hole diameter (ie connected to the microscope): 32mm With the column diameter: 32mm

55MP 2K 4K HDMI USB Feature:
Picture Pixel: 9885X5560 55M Pixel 9280X5220 48M Pixel
Video Frame rate: 4K(4:3)@24fps/2K@30fps/1080P@60fps
CMOS censer: SONY 1/2.33 inch
CMOS pixel: 1.33um x 1.33um
Color setting: Auto
White balance: Auto/one button calibration/Manual
EV: Auto/Manual
Camera mode HDMI output: 1080P @60 FPS
Grid line: 8 horizontal lines, 8 vertical lines
TF card: 4GB (Up to 128GB max
Cross line: Overlap or Cancel
Lens jack: Standard C
Power: 5V-12V/1A
Size: 68x68x33mm
Weight: 200g
Working temperature: 0-70
