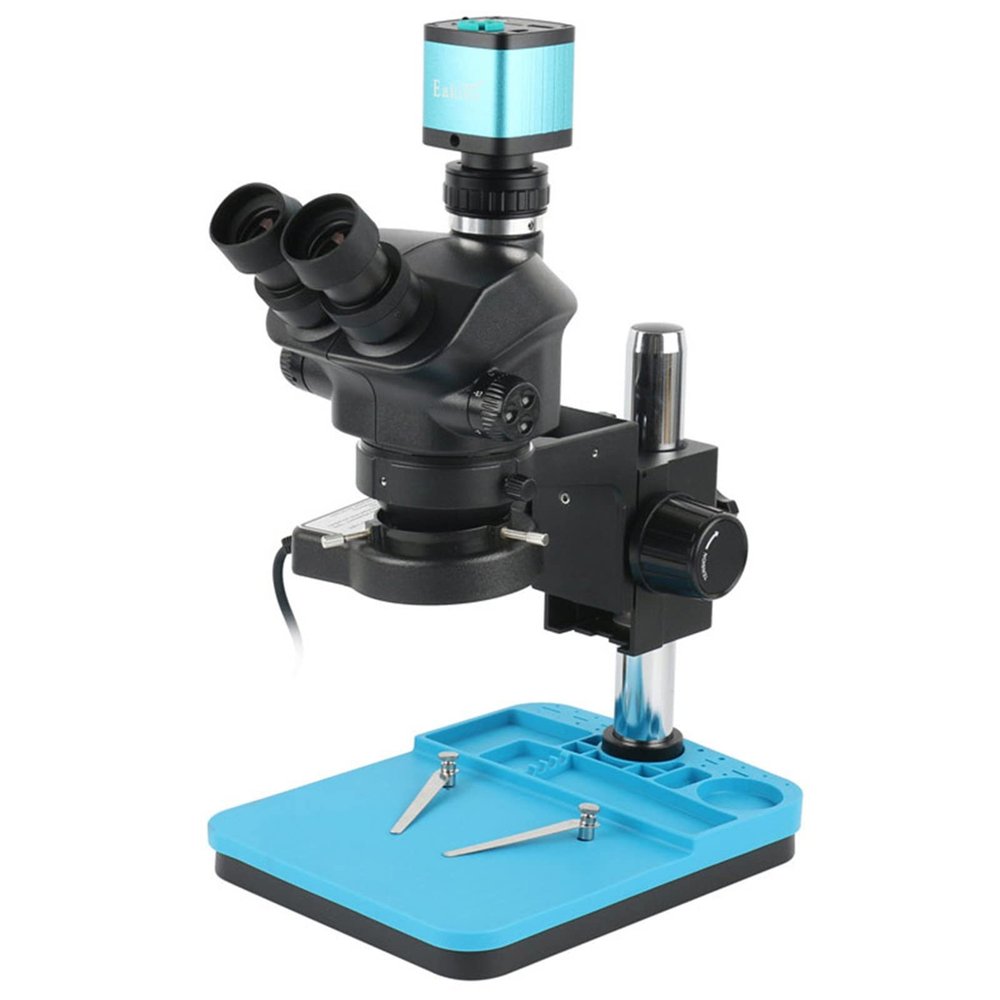

1080P 48MP 2K 4K HDMI USB VGA Video Camera 50X 100X Simul Focal Stereo Trinocular Microscope Set for Phone Soldering PCB Repair

Description

• Note: DMI port output uses HDMI monitor, Type-c and USB port uses PC, PC needs to install software, VGA port output uses VGA monitor, TF card interface is for storing pictures and videos, U disk interface is for storing pictures and videos!

Features
Microscope Head:
- Sharp stereo erect image. Standard working distance is 110mm, to create enough space for the uses.
- 45inclined and 360rotatable binocular head. The interpupillary distance is between 54-75mm. Observation head 45 inclined, diopter adjustment in two tubes, feel no fatigue when long time use.
- Wide field and high eyepiont eyepiece WF10X/22mm 10X large field of view eyepiece, FOV 22mm, plan and high eye-point design, more suitable for search and observation.
- Zoom Rate position: 0.7-5x
- Magnification: 7x-50x
- Working Distance: 110mm
- Installation diameter: 76mm
- Adjustable eyepiece: Standard WF10X22

76mm Microscope Stand:
Type: Microscope Stand
Connectiong Objective: DIA 76mm
Connectiong Pillar: DIA 32mm
Stand Size: 200mm x 255mm x 250mm
Support base: 32mm
Boom hole diameter (ie connected to the microscope): 32mm With the column diameter: 32mm

48MP 2K 4K USB HDMI:
Model: Camera with HDMI USB2.0 two output
Image sensor: 48 megapixel Panasonic sensor
Frame rate: 60F/S @ HDMI output
Movie size: 4K(30fps) 2K(30fps) 1080P(60fps) 720P(60fps) (Note: If you need to record 4K or 2K video, please use the SDHC class10 TF card.)
Support: C-Mount lens
Digital magnification: 5 times digital zoom
White balance: Auto/ Manual
Cross cursor: Support multi-color, size adjustable
TF card interface: Max 32G
video format: MOV
HDMI interface: HDMI/USB output
Image: 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456
Monitor: 16:9/16:10/4:3
Grid line: 15 Horizontal line, 15 Vertical line, Central scale line, Custom colors, Size
Power supply: 5-12V 1A
