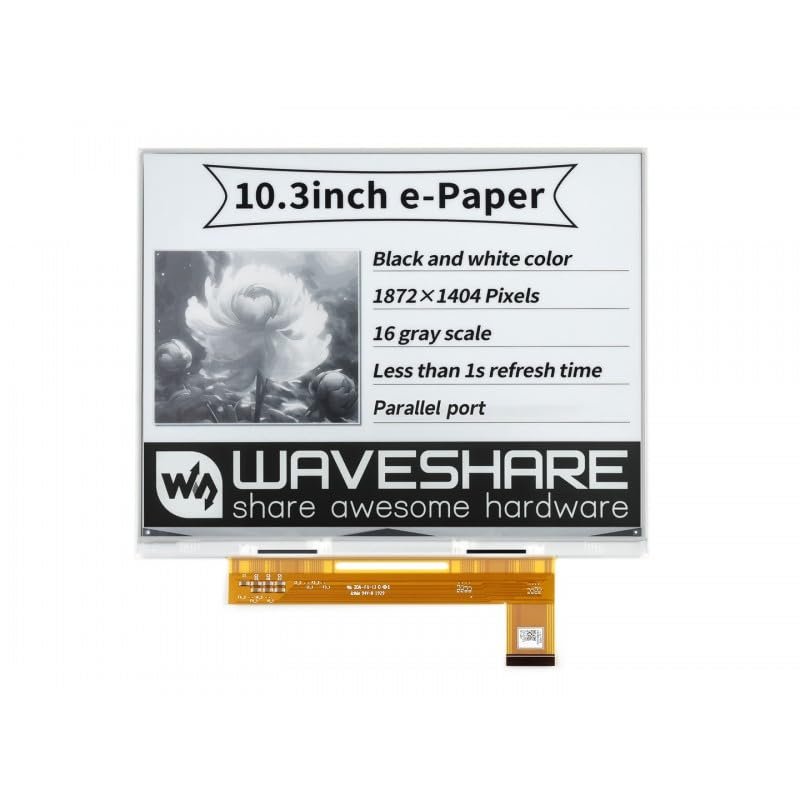

10.3inch E-Paper E-Ink Raw Display 18721404 Resolution Black and White Color 16 Grey Scales Parallel Port Communication Without PCB

Description

• Comes with development resources and manual (examples for RPi/STM32).
• No backlight, keeps displaying last content for a long time even when power down.
• Low power consumption, basically power is only required for refreshing.
• Compatible with RPi Zero/Zero W/Zero WH/2B/3B/3B+.
• USB/SPI/I80/I2C interface, for connecting with host boards like RPi/Nucleo, etc.

Introduction
10.3inch EPD (Electronic Paper Display) HAT for RPi, 1872 x 1404 resolution, 16 gray scale, USB/SPI/I80/I2C interfaceIt has the advantages of low power consumption, wide viewing angle, and clear display under direct sunlight, and is often used in display applications such as shelf labels and industrial instruments.

Note:
As the screen of 10.3inch e-Paper is large, the glass panel and FPC are fragile. Hence, please be careful when use it for development. It is recommended to reinforce the FPC with scotch tape when developing. Please connect all the cables before powering the device, the device cannot support a hot plug.
There are two versions: raw panel and HAT. Driver board (IT8951) is required for the raw panel, if you are the first time buying this product, we recommend you choose the HAT version which comes with the driver board.More

Features
No backlight, keeps displaying last content for a long time even when power down.
Low power consumption, basically power is only required for refreshing.
Compatible with RPi Zero/Zero W/Zero WH/2B/3B/3B+.
USB/SPI/I80/I2C interface, for connecting with host boards like RPi/Nucleo, etc.
Comes with development resources and manual (examples for RPi/STM32).

Specifications
Operating voltage: 5V
Interface: USB/SPI/I80/I2C
Outline dimension: 216.70 174.40 0.78mm
Display size: 209.66 157.25mm
Dot pitch: 0.112 0.112mm
Resolution: 1872 1404
Display color: black, white
Gray scale: 2-16 (1-4 bit)
Full refresh time: 450ms
Total refresh power: 1.2W(typ.)
Total standby power: 0.1W(typ.)
Viewing angle: >170
