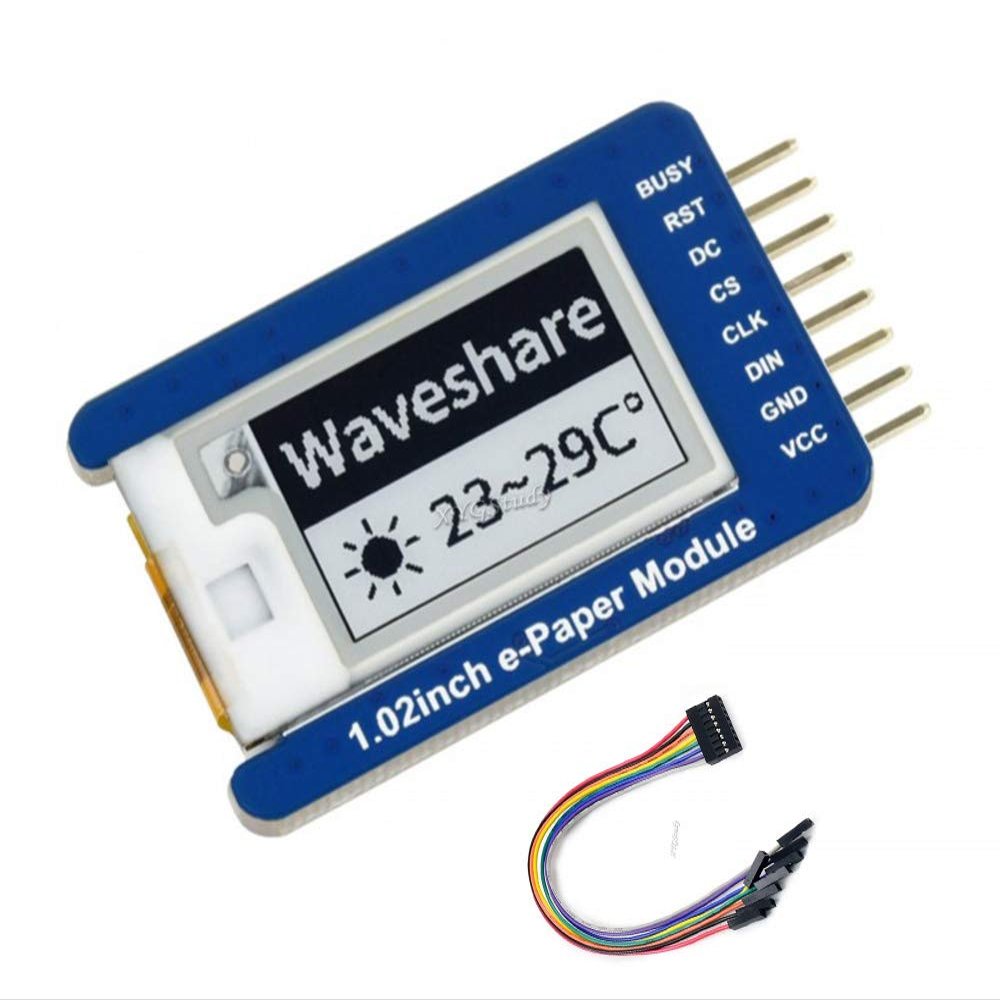

1.02inch e-Paper E-Ink Display Module 12880 Resolution Black/White Dual-Color SPI Interface with Embedded Controller Support Partial Refresh for Raspberry Pi Jetson Nano @XYGStudy

Description

• Part Number: 1.02inch e-Paper Module
• This is an E-Ink display module, 1.02inch, 12880 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
• Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
• SPI control interface, for working with host boards such as Raspberry Pi/Jetson Nano/Arduino/Nucleo
• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Overview
This is an E-Ink display module, 1.02inch, 12880 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
SPI control interface, for working with host boards such as Raspberry Pi/Jetson Nano/Arduino/Nucleo
Onboard voltage translator, compatible with 3.3V/5V MCUs
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications
Operating voltage: 3.3V / 5V
Interface: 3-wire SPI, 4-wire SPI
Outline dimension: 42mm 27mm
Display size: 21.76mm 14mm
Dot pitch: 0.175 0.17
Resolution: 128 80
Display color: black, white
Grey scale: 2
Full refresh time: 2s
Refresh power: 26.4mW(typ.)
Standby power: 170

Package Contains
1.02inch e-Paper Module x1
8PIN squid wire x2

For more details you may need to know, pls firstly send me message via Amazon,
I will then send attached document including User Guide for you, thank you for patience.;D
