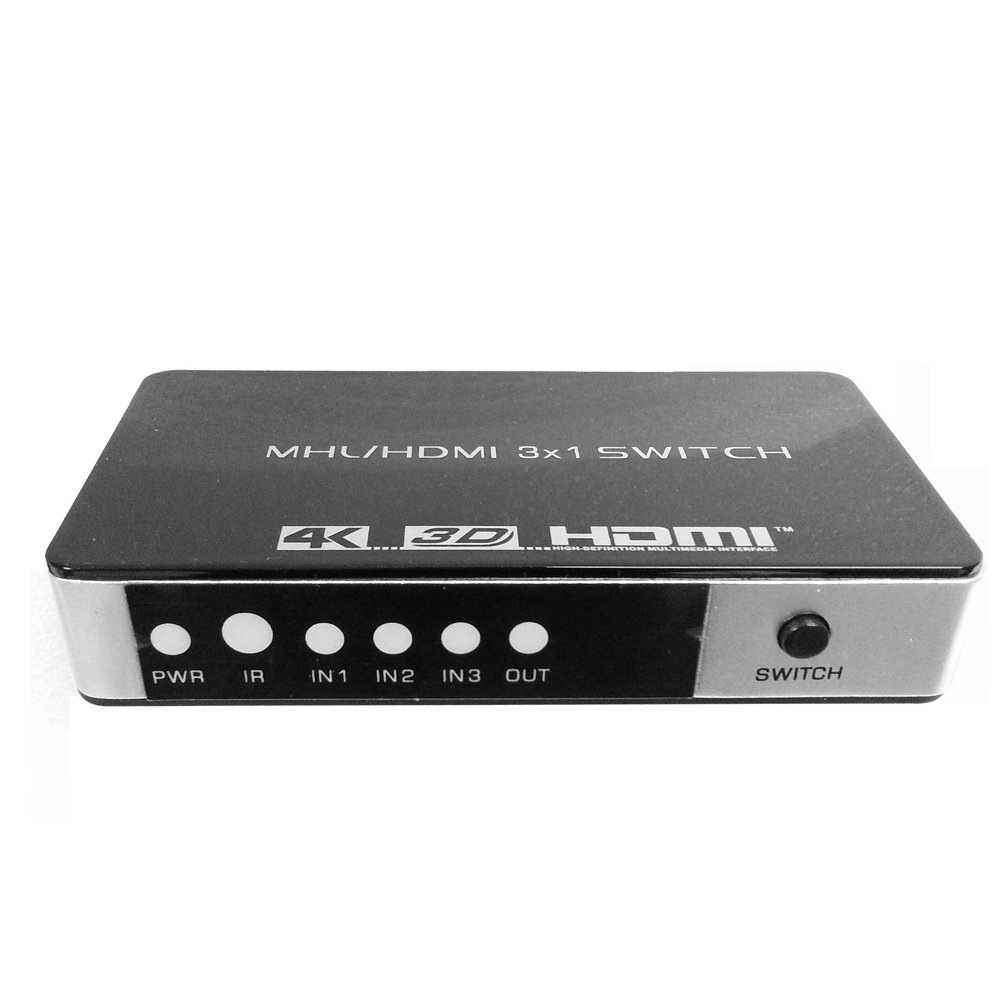

101AV Latest Generation HDMI V1.4 3x1 Port Switch Full HD 4K2K 1080P with IR Remote

Description

• Full HDMI 1.4 Specification compliant. It is application to source device and high definition display terminal device.
• Support high resolutions up to 4K x 2K, including 480i/p, 576i/p, 720i/p, 1080i, and 1080p.
• Support deep color 30bit and 36bit. Support Digital audio format: DTS-HD / Dolby-true HD / LPCM7.1 / DTS / Dolby-AC3 / DSD.
• Support hot plug-and -play. LED indicate signal and power mode.
• Inputs can be switched with the IR remote control, and also can be controlled by button.

101 Audio Video Inc.
101 AV Inc. provides various kinds of high-quality, delicate-look and reasonable-price Converter products.
The 3x1 HDMI Switch allows access to multiple MHL/HDMI sources, using a single HDMI sink. The switch supports 3 MHL/HFMI port operates in dual mode and one HDMI outpot port. In MHL mode, the switch supports resolutions up to 720p @ 60Hz, 1080p @ 30Hz or at PackedPixel mode 1080p @ 60Hz. In HDMI mode, the switch supports resolutions up to 4Kx2K 24 / 25 / 30Hz. the switch also supports EDID Ram. The switch allows 3 HDMI devices to be switched easily through one HDMI compatible monitor or projector. The switch can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school, and corporate training environments.
Specification
Max Single Link Range: 24 / 25 / 30fs / 4Kx2K HDMI Resolution: 24 / 50 / 60fs / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Video Color Format: 24 bit / deep color 30 bit and 36 bit
Vertical Frequency Range: 60Hz @ 1080p; 30Hz @ 4K x2K
Audio Format: DTS-HD / Dolby-true HD / LPCM7.1 / DTS / Dolby-AC3 / DSD
HDMI Version: HDMI v1.4
Bandwidth: Up to 297Mhz
Band Rate: Up to 8.9Gbps
1080P Input Cable Distance: 15M AWG26 HDMI Standard Cable
1080P Output Cable Distance: 20M AWG26 HDMI Standard Cable
4K x 2K Input Cable Distance: 5M AWG26 HDMI Standard Cable
4K x 2K Output Cable Distance: 10M AWG26 HDMI Standard Cable
Dimension (L x W x H): 110 x 60 x 20 (mm) Weight: 105g

Max Working Current: 350mA
Power Supply: DC 5V, 1A
What's in the box?
HDMI 3x1 Switch x1;DC 5V Power Adaptor x1; User Manual x1; Remote Controller x1; 4ft mini HDMI to HDMI cable x1
