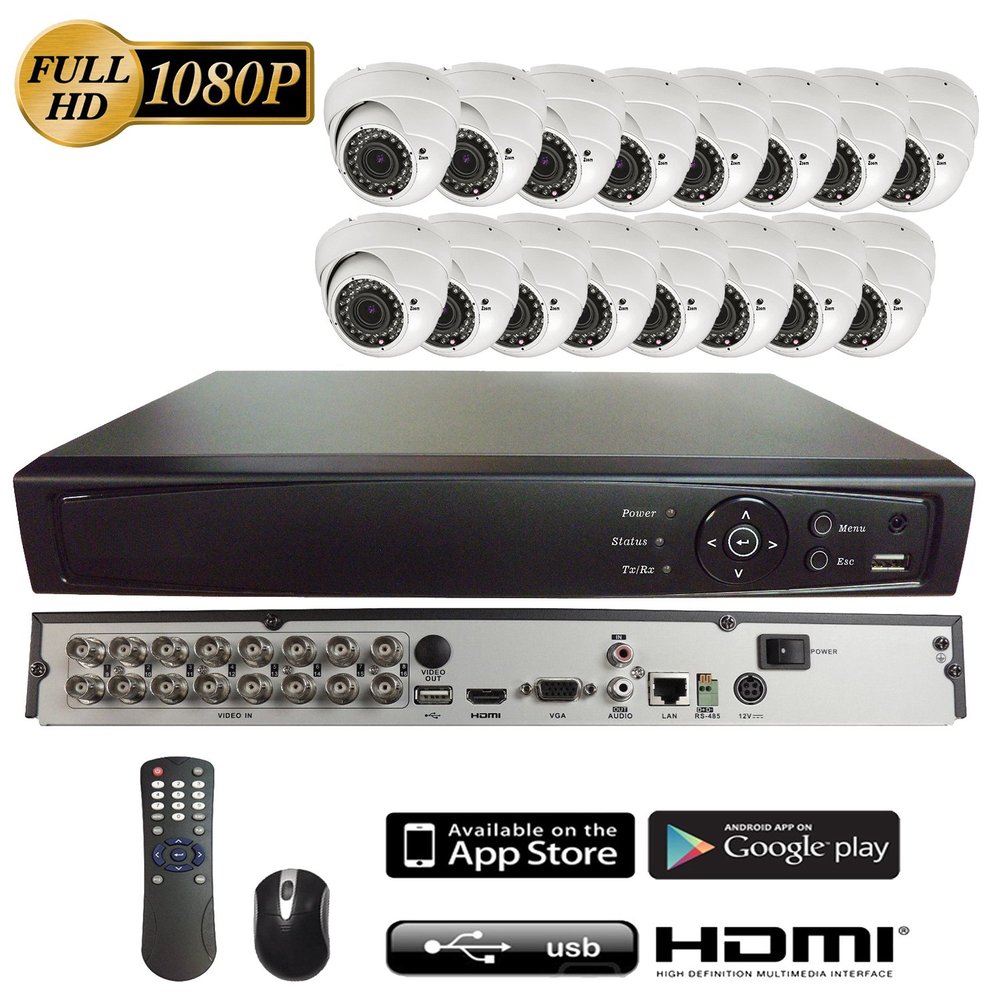

101AV 16CH 4in1 (TVI, AHD, Analog, IP) True Full HD 1080P Digital Video Recorder DVR w/o HDD+ 16 of 1080P 4in1 (TVI AHD CVI CVBS) 2.8-12mm lens WDR In/Outdoor Dome Cameras for Home Office Security

Description

• 16CH HD-TVI DVR, Triplex: Live / Playback, Record, Network. Standard H.264 Video Compression with low bit rate and better image quality.
• Support 2 Internal SATA HDDs (up to 12TB Storage Capacity). Support both iphone, Android Phone, and 4 Major Web Browsers (IE / Firefox / Safari / Chrome). Support HDMI & VGA video output. USB Backup and USB Mouse.
• 4 IN 1 (HD-TVI, HD-AHD, HD-CVI, CVBS(700TVL) HD technology produces 1080P Full-HD Video with Sharp and Detailed Images. This is a 4in1 camera that you can switch to TVI, AHD, CVI, CVBS mode to work with your DVR system.1/2.9" 2.4Megapixel (1920x1080) STARVIS CMOS Image Sensor 1080P Resolution; 2.8-12 mm Variable Focus Wide Angle Lens 30 meters IR range; 24pcs IR infrared LEDs; Day/Night; IP66 weatherproof, Vandal proof; Multi-Axis for Wall or Ceiling Mounting.
• STARVIS increases the light utilization efficiency over a wide range of wavelengths, enhancing sensitivity in both the visible light and the near infrared light. WDR (Wide Dynamic Range) Function; IR-Cut Filter: True day/night (ICR) Captures sharp, Clear Images in Low Light and at Night
• This camera default setting is HD-TVI. If your system is not HD-TVI system, please switch the camera mode by joystick or OSD manual to the same mode (HD-AHD, HD-CVI, Analog CVBS) as your system. You can also fine the instruction on the manual or contact us for technical support. Our technician will be very happy to assist you. Thank you!

DVR Information:
- H.264 compression with low bit rate and better image quality
- HDMI Output x1(1080P), VGA Output x1 (resolution up to 1920 x 1080) ; CVBS (BNC) Output x1; Audio Input x1; Audio Output x1
- Up to 1080p@30fps recording with 1080P efficient mode on
- All 16 channels in High Resolution 1080P Recording and Display and with 1080P Video Playback
- Support Two SATA HDD to record; each HDD up to 12TB storage
- Support USB 2.0 devices, Easy backup with USB FLASH DRIVE and Network
- Support schedule for motion detection, linked channels recording once motion triggered on certain channel
- Support PELCO-D and PELCO protocol for PTZ control
- Support mobile surveillance on iphone & Android Smart Phone, 3G network available, CMS to manage multi devices on internet
- Support 3 Years Manufacturer Warranty



Camera Specification
Model# VDT-2812W
Image Sensor: 1/2.9" Sony 2.4 Megapixel STARVIS CMOS Sensor
Effective Pixels: 1930(H)x1088(V)
Signal System: NTSC
Resolution: 1080p/ 960H (HD-TVI, HD-AHD, HD-CVI, CVBS(700TVL)
Mini Illumination: 0.001 Lux / F1.2
Lens: 2.8 12mm Manual Zoom Lens
WDR: On/Off
White Balance / Gain Control: Auto
S/N Ratio: More than 50 dB
Synchronous System: Internal
Video Output: AHD/CVI/CVBS/TVI
IR Power On: Photodiode AUTO Control
Weatherproof: IP66
Dimensions (mm): 131(W) x 93(H)
Power: DC12V/ 700mA
IR Range: 100 ft (30m) IR Range w/ 24pcs IR LEDs
Infrared Lamps: Night/Day ON/OFF


What's in the Box?
1x 16CH 4in1 HD DVR, 1x DVR Remote Control, 1x USB Mouse, 1x CMS Software CD for Windows PC and Apple Mac, 1x 12VDC/3A Power Supply, 1x DVR installation Guide
16x 1080P 4in1 2.8-12mm Dome Camera, Camera 1x User Manual, 1x Screws
