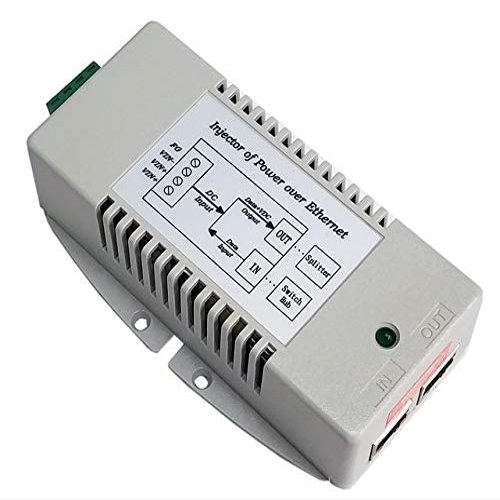

10-15VDC Wire Terminal Input, DCDC Converter and 56V 35W 802.3at Mode B Gigabit PoE Output, Shielded and Surge Protected, Low Voltage Disconnect

Description

• The TP-DCDC-1248GD-HP offered by Tycon Power is a low cost and high efficiency solution for those requiring IEEE802.3af and IEEE802.3at Power over Ethernet from a 12VDC voltage source like a battery system or vehicle
• They have an integrated POE injector to apply the power and data output to the CAT5/6 Ethernet cable
• The output voltage is regulated and protected. They have a common (-) and two (+) inputs for connecting 2 power sources, such as a primary with a backup power source
• They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack
• Applications: 12V Battery Systems, Vehicle Applications; Wireless Access Points and Client Devices; IP Phone and Security Camera Systems

The TP-DCDC-1248GD-HP DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 35W 802.3af/at Power Over Ethernet voltage from a 10-15VDC battery system. They have an integrated Gigabit Compatible 802.3af/at POE injector to apply the regulated 56VDC to the CAT5 Ethernet cable. They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power output of 35W.
