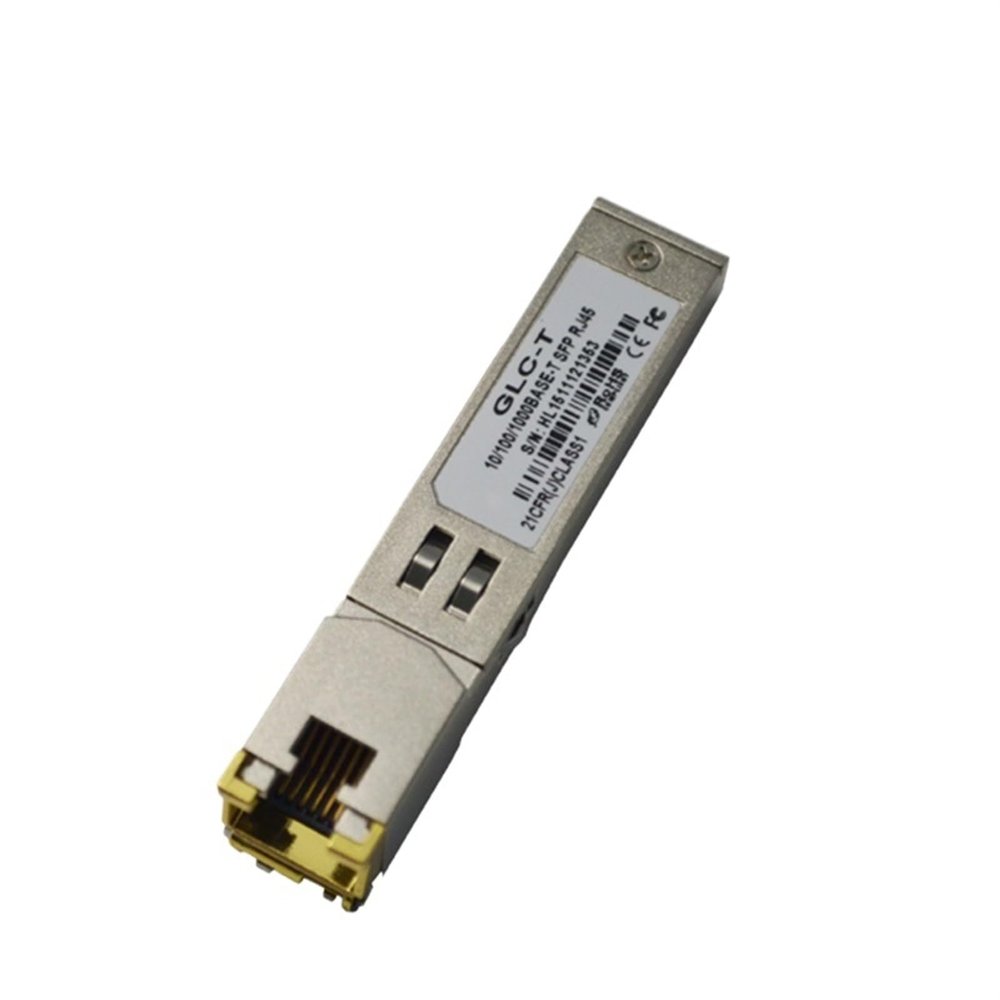

10/100/1000BASE-T 100M Copper Ethernet RJ45 SFP(5pcs)

Description

• Fiber Optic Products / Fiber Optic Receivers
• 10/100/1000BASE-T 100M Copper Ethernet RJ45 SFP

Fiber Optic Products / Fiber Optic Receivers10/100/1000Base-T CopperSFP RJ45 TransceiverCopper Small Form Pluggable (SFP) transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 10/100/1000Base-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters over unshielded twisted-pair 5 cable.The module supports1000 Mbps (or10/100/1000Mbps) full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address ACh.Features:Up to 1.25Gb/s bi-directional data links-pluggable SFP footprintExtended case temperature range (0C to +85C )Fully metallic enclosure for low EMILow power dissipation (1.05 W typical)Compact RJ-45 connector assemblyAccess to physical layer IC via 2-wire serial bus1000 BASE-T operation in host systems with SERDES interface10/100/1000Mbps compliant in host systems with SGMII interface
