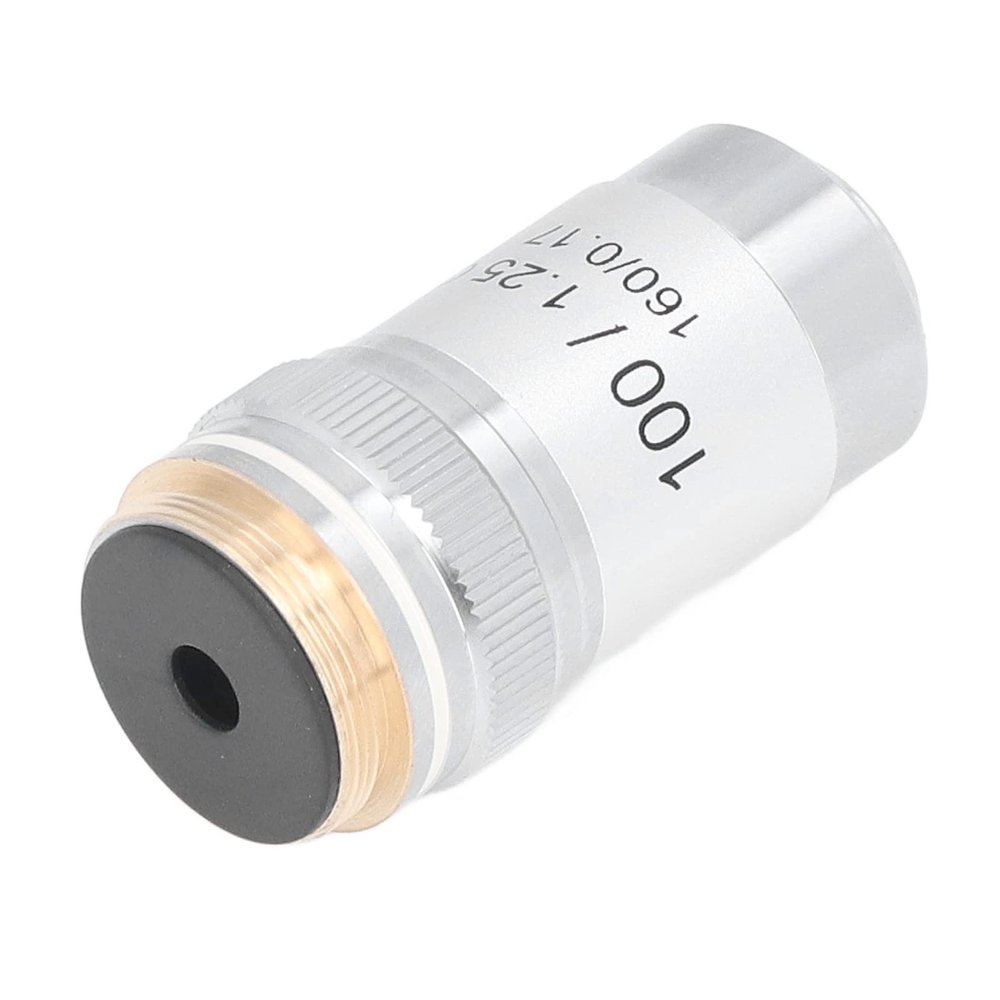

100X Objective, Microscope Objective, 100X Achromatic Microscope Objective Lens High Magnification 20.2mm Interface Thread for,

Description

• 100X MAGNIFICATION: This is a 100X high magnification objective lens, great for study, work or research, useful, helpful, convenient
• Brass Material: Made for brass material, fine workmanship, plated accuracy material for shell
• High light transmittance: This lens is coated with high light transmittance and has a high refractive index for brighter images
• Working Distance: Approx. 0.13mm, Common Rail Distance: Approx. 195mm/7.68, Parfocal Distance: Approx. 45 mm/1.77 inches
• WORKING DISTANCE: Approx. 0.13mm, Common Rail Distance: Approx. 195mm/7.68, Parfocal Distance: Approx. 45 mm/1.77 inches

Specification:
Item Type: Achromatic Objective
Model: 100/1.25
Material: Brass
Use: Microscope Accessories
Interface Size: Approx. 20.2mm / 0.80in (International Standard RMS Size)
Magnification: 100X
Numerical Aperture: Approx. 1.25mm
Cover Glass Applicable Thickness: Approx. 0.17mm / 0.007in
Microscope Applicable Mechanical Tube Length: Approx. 160mm / 6.30in
Working Distance: Approx. 0.13mm / 0.005in
Common Rail Distance: Approx. 195mm / 7.68in
Parfocal Distance: Approx. 45mm / 1.77in
Impregnation Medium: Cedar Oil (OIL)
Spring: Yes (Automatic Rebound)

How to Use:
Can be used after connecting with the microscope.
In order to facilitate observation, recommended to start observation at low magnification, more difficult to adjust at high magnification than at low magnification. According to the characteristics of the observed specimen, not all slices are suitable for observation under high magnification.
