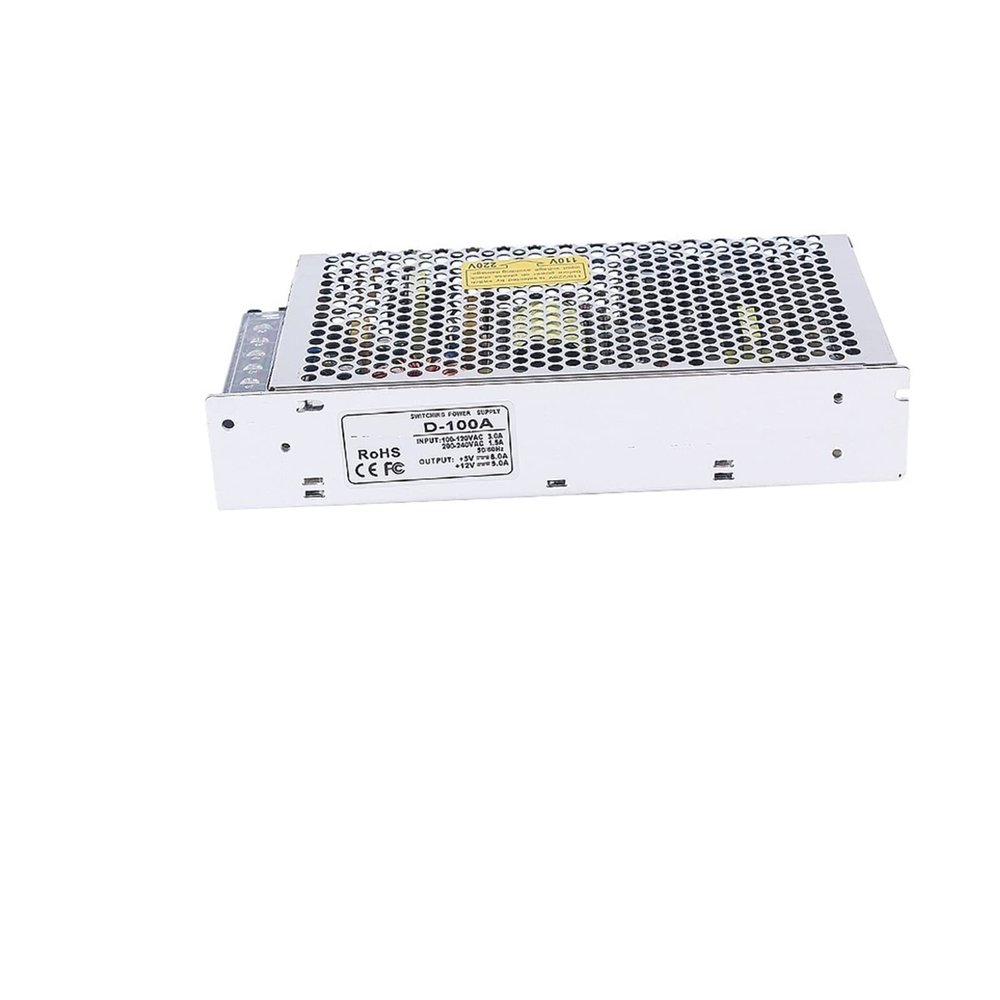

100W Dual Output Switch Power Supply D-100C 12V 24V D-100A 5V 12V Ac Dc Power Suply D-100B 5V 24V Ac Dc Converter - Led Ac Dc Converter(D-100B 5V 24V)

Description

• IN-DOOR USE ONLY!
• Switch Power Supply Widely used in Industrial automation, LED display, communications, etc.
• You can choose the input voltage by switch.
• Smart device surge protection for Shortage Protection, Overload Protection, Over Voltage Protection
• Welcome and I wish you a happy life, my friend.

DC output voltage
5V
12V
5V
24V
Output voltage error (Note2)
2%
6%
2%
7%
Rated output current
10A
4A
6A
3A
Output current range
2-10A
0.5-4A
2-10A
0.5-4A
Wave and noise(Note3)
50mVp-p
100mVp-p
50mVp-p
150mVp-p
Inlet stability(Note4)
0.5%
1%
0.5%
0.5%
Load stability(Note5)
0.5%
5%
0.5%
6%
DC output power
98W
102W
Efficiency
78%
80%
Adjustable range for DC voltage
CH1+10,-5%
CH1+10,-5%
AC input voltage range
176264VAC 4763Hz;248-370VDC
Input current
2.5A/115V 1.25A/230V
AC impulse current
Cold-start current 35A/230V
Leakage current
<;3.5mA/240VAC
Overload protection
105%135% Typepulsing hiccup shutdown; Reset: auto recovery
Over-voltage protection
CH1:5.75-6.75V
High-temperature protection
Temperature coefficient
0.03%(050) ON+5V
Setup rise hold up time
200ms,50ms,20ms
Vibration
10500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage
Input and output interval1.5KVAC,Input and enclosure1.5KVAC,Output and enclosure0.5KVAC
Isolation resistance
Input and output interval,Input and enclosure,Output and enclosure500VAC/100M Ohms
Working temperature and humidity
-10+60(Refer to output derating cutve),20%90%RH
Store temperature and humidity
-20+85,10%95%RH
Overall dimension
1999838mm
Weight
0.7Kgs
Note:
1.The testing condition for the parameter above is:230VAC input, rated load,25 70%Rh,Humidity
2.Error,include the setting error, line stability and load stability.(Note:5)
3.Wave test:adoptingA12double wire for 20MHz,and 0.1uF&uF capacitor shortcircuit for interrupting
4Inlet voltage stability test when is over load the lowest voltage of inlet is representative to the highest voltage
