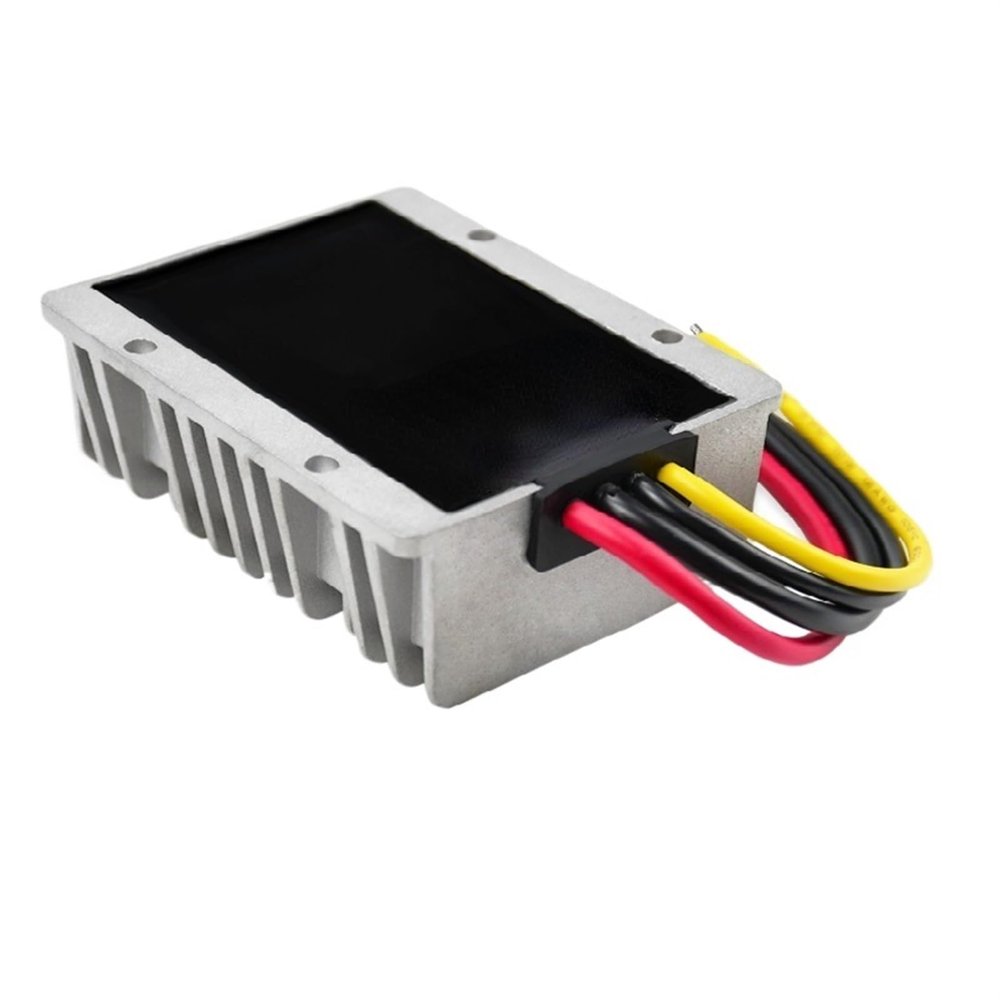

100V 90V 60V 72V 84V 48V 36V to 24V 20A 15A DC DC Voltage Converter Vehicle Car Power Supply Module Step Down Regulator(DC 36V 48V (33-60V),DC 24V 20A 480W)

Description

• Power Converters
• 100V 90V 60V 72V 84V 48V 36V to 24V 20A 15A DC DC Voltage Converter Vehicle Car Power Supply Module Step Down Regulator

Power Converters
100V 90V 60V 72V 84V 48V 36V to 24V 20A 15A DC DC Voltage Converter Vehicle Car Power Supply Module Step Down Regulator
Product Name
DC DC Converter 100V 72V 60V 48V 36V to 24V 16A/20A Max
Module Properties
non-isolated module
Rectification
rectification
Input (cable length: 13-14cm)
Input Voltage
DC 24V 36V 48V 60V 72V
Input Voltage Range
DC 15-60V / DC 30-80V / DC 35-90V / DC 35-120V (Optional)
Output(cable length: 13-14cm)
Output Voltage
DC 24V
Output Current
16A / 20A Max (Optional)
Output Power
384W / 480W Max (Optional)
Conversion Efficiency
>90%
Voltage Regulation
3%
Load regulation
2%
Ripple (Full load test)
<; 150mV
No-load current
<;100mA
Working Temperature
-40~80( If ambient temperature exceeds 40c, lower power use, or to enhance heat dissipation)
Waterproof Rating
IP68
Protection
Over-current protection / Overheating protection / Short circuit protection / anti-shock protection
Application
mobile phone, car camera, Electric motors, Trucks, Golf Carts, Forklift, Solar Panel Power System, water pumps, industrial equipment and so on.
Case Material
Aluminum alloy case
Product Size (L x W x H)
100*80*39mm
Product Weight
500g
