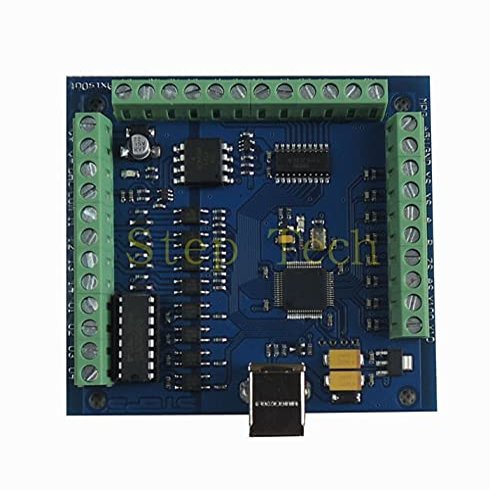

100KHz usb 4 Axis Stepper motor controller card USB CNC motion Controller card breakout board for CNC Engraving 12-24V

Description

• Model number: STB4100
• Motor type: Stepper Motor

1 x 4 Axis USB CNC Controller card 100KHz
1 x USB cable(With two magnetic shield)
1 x CD (include with English user manual and full version software)
1. Support for 4-axis linkage, you can connect four stepper motor drives or servo drives.
2. Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor.
3. Support automatic probe tool
4. Support Emergency input
5. Support for limit switch
6. Support for connecting electronic handwheel
7. Need use external 12-24V DC power supply to isolate USB and external port, and to make the system more stable.
8. Have 0-10V output port, you can use software to control the spindle motor speed.
9. 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device
10. 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device.
11. 1 status LED, indicate connection status on the board.
Item specifics:
Model number: STB4100
Motor type: Stepper Motor
