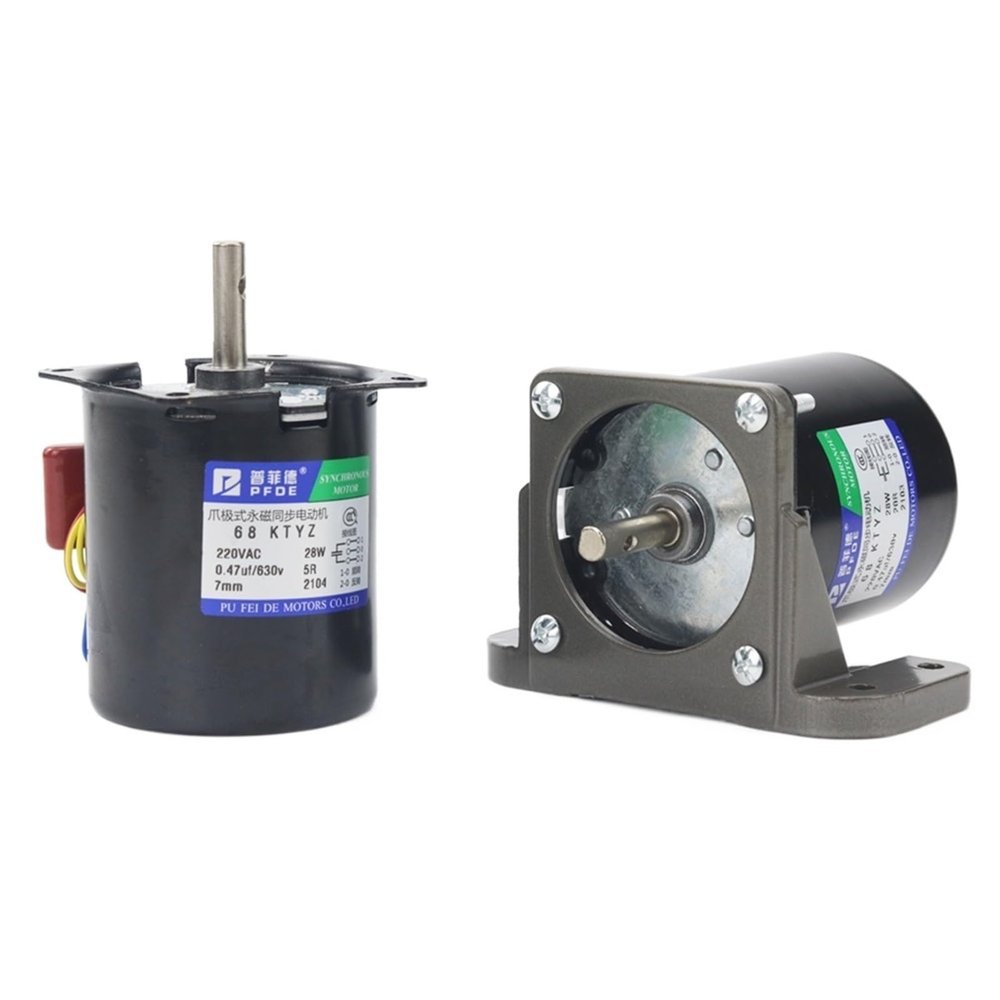

100KG 28W 68KTYZ 220 AC Permanent Magnet Motor With Bracket CW/CCW Metal Geared Slow Speed 2.5 To 110RPM (Size : 80rpm with bracket)

Description

• Motor Drives
• 1. 68KTYZ Mini 220V AC Permanent Magnet Motor
• 2. The motor has the following voltage options: AC 220V
• 3. AC 220V ; You can choose the no load speed have : 2.5rpm ; 5rpm ; 10rpm ; 15rpm ; 20rpm ; 30rpm ; 50rpm ; 60rpm ; 80rpm ; 110rpm
• Rated between 3 To 100 KGF.CM; Select a no load speed in AC 220V, there will be corresponding rated , please refer to the parameter table below.
• 4. The direction of rotation of the motor : CW and CCW; Support Reversed ; But the speed of this motor is fixed, the speed cannot be adjusted.
• 5. Power : 28W

Motor Drives
Package includes:
1pc * Motor
1pc * Bracket
Introduction of the motor
1. 68KTYZ Mini 220V AC Permanent Magnet Motor
2. The motor has the following voltage options: AC 220V
3. AC 220V ; You can choose the no load speed have : 2.5rpm ; 5rpm ; 10rpm ; 15rpm ; 20rpm ; 30rpm ; 50rpm ; 60rpm ; 80rpm ; 110rpm
Rated between 3 To 100 KGF.CM; Select a no load speed in AC 220V, there will be corresponding rated , please refer to the parameter table below.
4. The direction of rotation of the motor : CW and CCW; Support Reversed ; But the speed of this motor is fixed, the speed cannot be adjusted.
5. Power : 28W
6. Working temperature : The lowest temperature is -10 degrees Celsius to the highest temperature of 70 degrees Celsius
7. Outstanding features of the motor: The motor is a permanent magnet motor ; Internal is metal gears ; Low speed and low noise 30dB ; Support continuous operation for 24 hours ; Speed adjustment is not supported ; 5,000 hours of life under normal use ; Use materials ; Small size ; High ; Low power consumption ; Light weight and easy to use
8. Motor application range : Automatic barbecue shelf; Automatic dining table; Curtain machine; Crib; Stage Lighting; Dishwasher; Automation control, etc.
9. For the , size, product picture or other informations of the motor, please see the following information.Thanks
The following is the motor parameter table
The following is a description of the quality materials and structures of this motor.
1. All metal gears
2. The wire in the rotor is made of pure copper. It is more conductive, to temperature and prolongs the life of the motor.
3. Using imported lubricating oil, it effectively controls the speed of motor temperature rise, which makes the motor rotate more smoothly.
