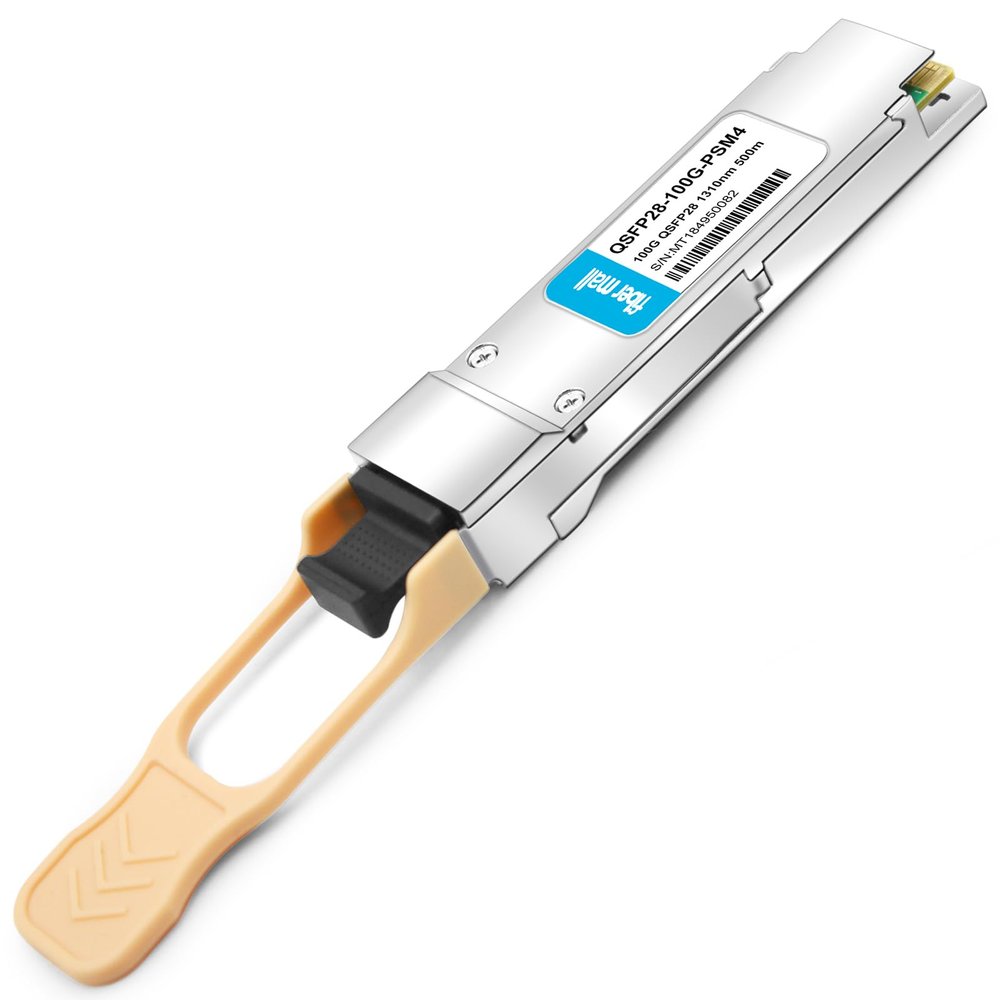

100G QSFP28 PSM4 Compatible for Palo Alto Networks PAN-100G-QSFP28-PIR4 100GBASE-PSM4 QSFP28 Optical Transceiver Module 1310nm 500m DOM MTP/MPO SMF

Description

• QSFP28 100GIt's fully compliant and compatible for Palo Alto Networks QSFP28 MSA IEEE 802.3bm 100GBASE-PSM4 standards, coding as Palo Alto Networks PAN-100G-QSFP28-PIR4
• 100GBASE-PSM4QSFP28 transceiver module, 100Gbps, Single mode, 1310nm, 500m, MTP/MPO connector, Hot Pluggable, support DDM
• FeaturesQSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25Gb/s operation for an aggregate data rate of 100Gb/s on 2km of single mode fiber.
• Protocols100GBASE-PSM4 Digital diagnostics functions are available via the I2C interface as specified by the QSFP28 MSA.
• 3 WarrantyEnjoy Fibermall 30-Days Free-returned, 65-Days Free-replacement 5-Years Free-maintenance Fibermall supports regular custom service for your options

Fiber Mall QSFP28-100G-PSM4-PAN Compatible Palo Alto Networks PAN-100G-QSFP28-PIR4 QSFP28 Optical Transceiver Module . It is designed for use in 100GBASE Ethernet throughput up to 500m over single mode fiber (SMF) using a wavelength of 1310nm via a MTP/MPO-12 connector. It provides high-density and low-power 100GBASE Ethernet solution for data centers, high-performance computing networks,enterprise core and distribution layer applications.
It is fully compliant with the QSFP28 MSA and IEEE 802.3bm 100GBASE-PSM4 standard.
Product Features Compatible Palo Alto Networks : PAN-100G-QSFP28-PIR4 Vendor Name:Fiber Mall Form Type:QSFP28 4 independent full-duplex channels Up to 28Gb/s data rate per channel QSFP28 MSA compliant Compliant to IEEE 802.3bm 100GBASE PSM4 Up to 2km reach for G.652 SMF Maximum power consumption 3.5W Single +3.3V power supply Operating case temperature: 0 to 70C RoHS-6 compliant
Application 100G Ethernet links Infiniband QDR and DDR interconnects Datacenter and Enterprise networking
for Compatible Palo Alto Networks PAN-100G-QSFP28-PIR4 100GBASE-PSM4 QSFP28 Optical Transceiver Module for Ethernet and Data Center (SMF, 1310nm, 500m, MTP/MPO, DOM)
Package 1*sfp dust cover 1 *pair 100Gbps PSM4 fiber transceiver module 1* package box
