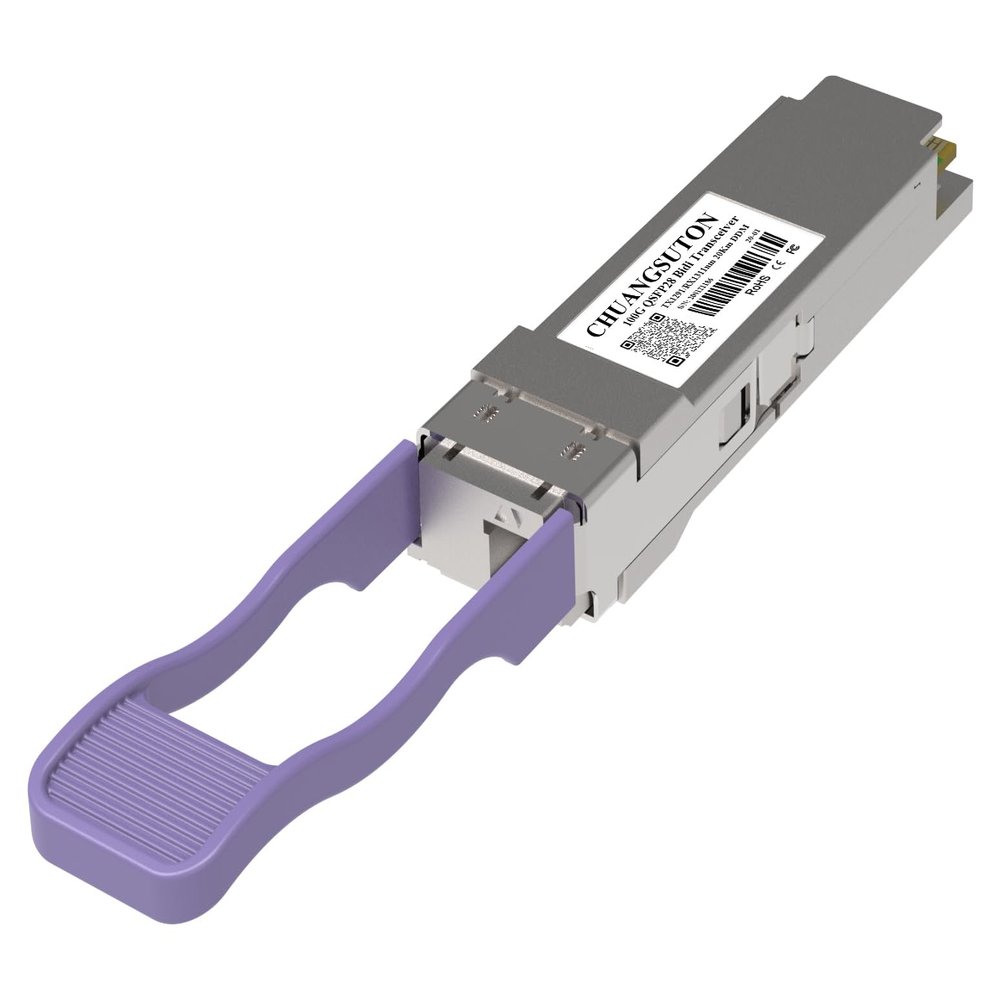

100G QSFP28 LR1 BiDi Transceiver 20km Fiber Optical Module Tx1291/Rx1311nm Simplex LC Compatible with Cisco

Description

• 100Gbps over singlemode fibre (SMF) delivers full data rate using only one fibre strand, reducing cabling and cost
• 100Gbps over singlemode fibre high-speed data transmission using only one fibre strand, reducing cabling and cost
• BiDi Channel A/B options choose from 10km or 20km variants with opposite Tx/Rx wavelengths for seamless pairing
• PAM4 modulation + KP4-FEC ensures signal stability and low bit error over long-distance links
• Compatible with Cisco, Arista, Juniper, Mellanox, Dell, Brocade, Extreme ideal for data centres, enterprise networks, and cloud deployments

100G QSFP28 BiDi Transceiver for long distance single mode fiber links up to 20 km. Supports 100G full duplex transmission over one pair of SMF using bidirectional wavelengths 1271 nm TX and 1331 nm RX, and 1331 nm TX and 1271 nm RX. Uses LC duplex connector. Compliant with IEEE 802.3bm CAUI-4, QSFP28 MSA and SFF-8636 standards. Supports dual rate operation for 100G and backward compatible 40G BiDi modes. Typical TX optical power is from +0.5 dBm to +5 dBm. RX sensitivity is -10.5 dBm at pre-FEC BER of 5e-5. Power consumption is 4.5 W or less. Operating case temperature range is 0 C to 70 C. Includes Digital Diagnostics Monitoring DDM or DOM for real time measurement of TX power, RX power, module temperature, supply voltage and other key parameters. Compatible with Cisco platforms including Nexus 9300 and 9500 series, Catalyst 9000 series, ACI systems and NCS 5500. Also compatible with NVIDIA Mellanox SN2010, SN2410, SN2700, SN3700 and SN4600 switches.
