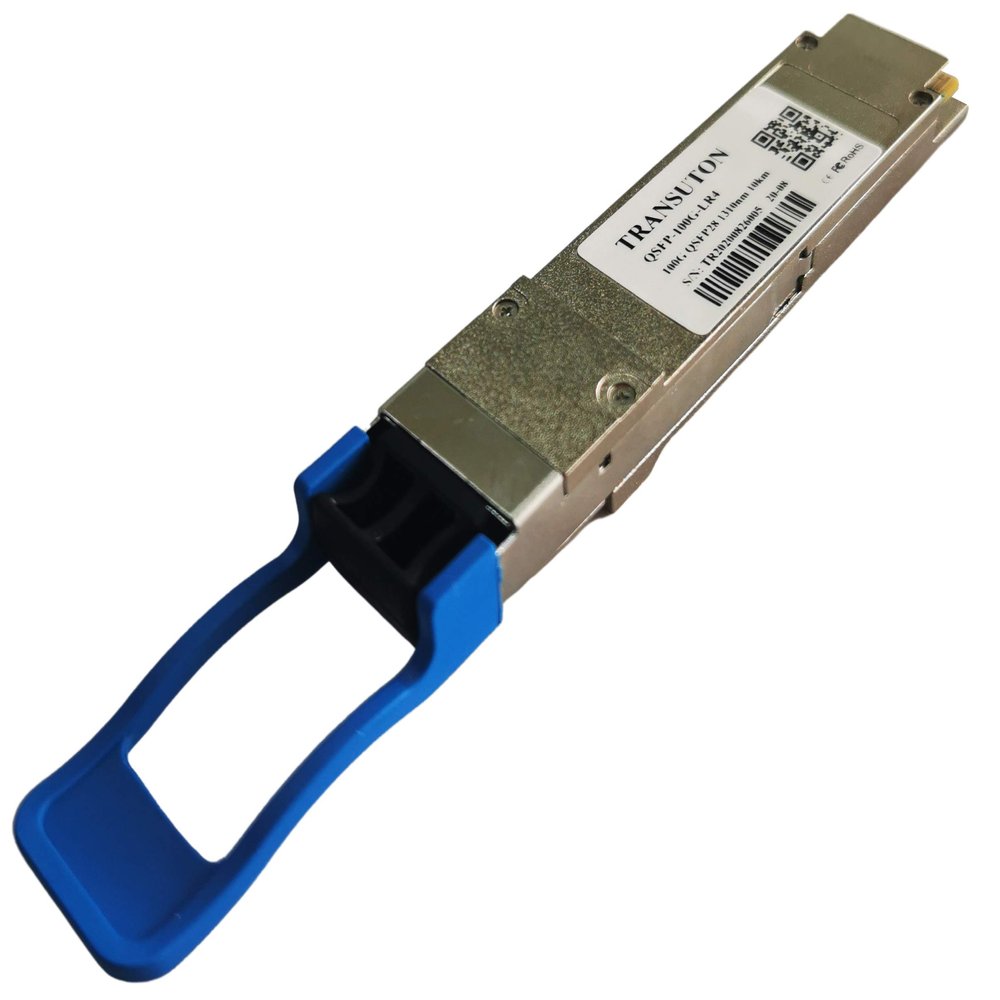

100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module Compatible with Mellanox

Description

• 100GBASE-LR4 QSFP28 Module Supports 100Gbps Ethernet over single-mode fiber (SMF) with an LC duplex connector.
• Long-Distance Transmission Provides up to 10km reach over single-mode fiber, ideal for metro and long-haul networks.
• Wavelength Multiplexing Utilizes 4-channel CWDM technology with wavelengths ranging from 1295nm to 1310nm.
• Wide Compatibility Works with major networking brands and is suitable for switches, routers, and servers with QSFP28 ports.
• DDM Monitoring Digital Diagnostic Monitoring (DDM) enables real-time tracking of performance and signal quality.

TRANSUTON for Mellanox MMA1L10-CR Compatible 100GBASE-LR4 QSFP28 Optical Transceiver Module for Data Center, Ethernet and Telecom (SMF, 1310nm, 10km, LC, DDM)
Overview
The TRANSUTON QSFP-100G-LR4 Module supports link lengths of up to 10 km over a standard pair of G.652 Single-Mode Fiber (SMF) with duplex LC connectors. The 100 Gigabit Ethernet signal is carried over a single wavelength using onboard PAM4 modulation and FEC.Our transceiver have great reliability, airtightness and heat dissipation performance.
FEATURES
Form Factor: QSFP28
Connector: LC duplex
Cabling Type: 100GBase-LR4
Max Data Rate: 103.125Gbps
Wavelength: 1310nm
Media: SMF
Max Cable Distance: 10km@SMF
Optical Components: DML/PIN
DDM/DOM: Supported
TX Power: -4.3 ~ 4.5dBm
Receiver Sensitivity: 4dB
Receiver Overload: > 5.5dBm
Temperature:0 to 70C (32 to 158F)
APPLICATIONS
100G Ethernet transmission
Infiniband FDR, EDR
Proprietary High Speed Interconnections
High-performance computing clusters
Fibre Channel
Transuton Advantage
10G SFP+/ 25G SFP28/ 40G QSFP+/ 56G QSFP+/ 100G QSFP28 / 400G QSFP-DD Direct Attach Copper (DAC ) twinax cable,and Active Optical Cable (AOC), passive or active, 100% OEM Compatible, and 100% Tested, 5 Years Warranty,Free Returns.
