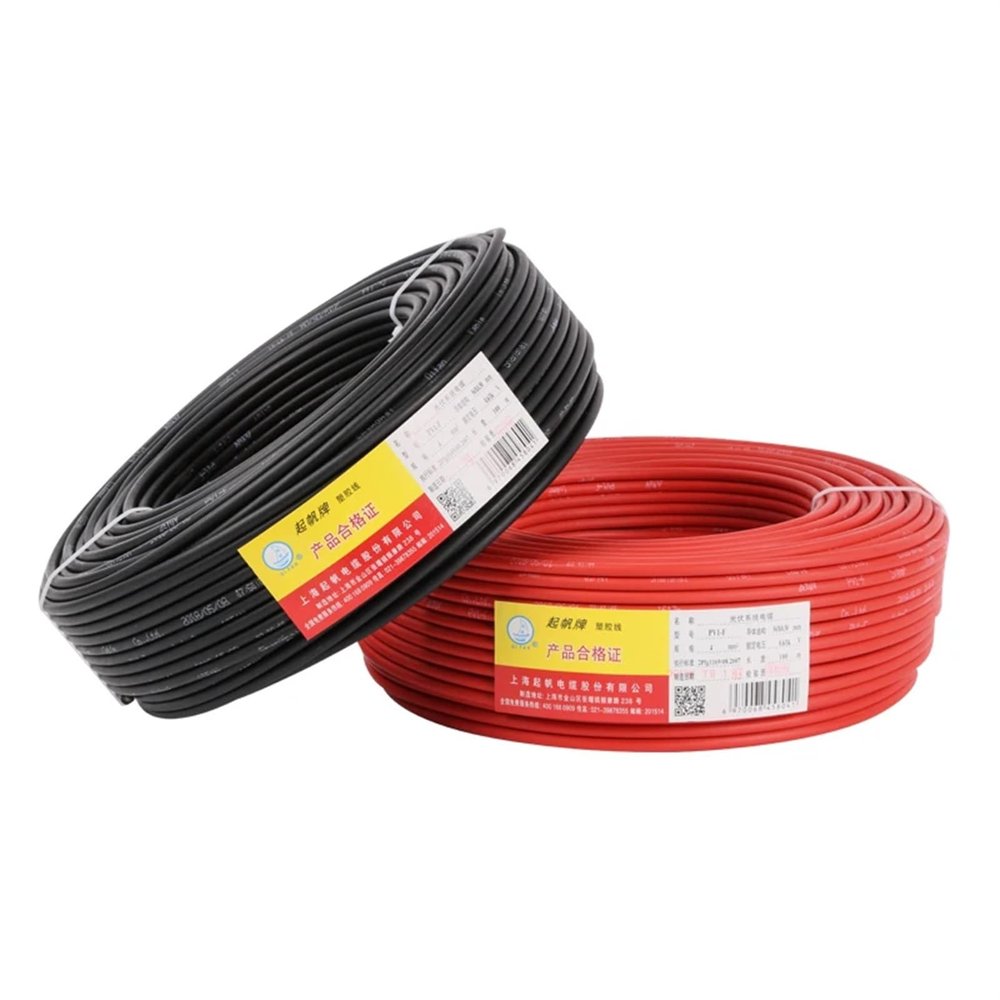

100/50Meters 6mm2/10AWG Solar Panel Extension Cable Black Red Tinned Copper Double Sheathed Wire for Solar Photovoltaic System(100Meters Red)

Description

• Modem Cables

Modem Cables

INTRODUCTION
specifications:6mm(10AWG)
Rated voltage:AC 0.6/1KV,DC1.5KV
Color:Red / Black
Feature:Double insulation cover,TUV approved
Conductor material:stranded tin-plated ~ 99.95% oxygen-free copper
Outer Sheath:Halogen-free low-smoke polyolefin(XLPO)
Inner Insulation:Halogen-free low-smoke polyolefin(XLPO)
Service life:25 years (-40 +90 )
Application:Indoor and outdoor solar installations
Fire rating:UL94-V0
Seller declaration:This itemisdouble-sheathed cable, which is not as soft assingle-sheathed cable and silicone cable, please pay attention to the distinction
Specification
Model
Specifications(mm2)
Conductors(MM)
outer diameter (mm)
Conductor outer diameter (mm)
20 Conductor DC resistance
(Ohm/km)
PV1-F 1*16
16
126/0.4
10.04
5.8
1.24
PV1-F 1*10
10
84/0.4
8.82
4.9
1.95
PV1-F 1*6
6 84/0.3
7.52
3.6
3.39
PV1-F 1*4
4 56/0.3
6.38
2.9
5.09
PV1-F 1*2.5
2.5
49/0.25
5.63
2.15
8.21
PV1-F 1*1.5
1.5
30/0.25
4.98
1.5
13.7

==========
Model Number : PV1-F6mm2
Application : Overhead
Type : Insulated
Conductor Type : Stranded
Conductor Material : Copper
Insulation Material : PVC
Rated voltage : AC 0.6/1KV, DC1.5KV
Certification : TUV approved
Conductor material : stranded tin-plated ~ 99.95% oxygen-free copper
Color : Red / Black
