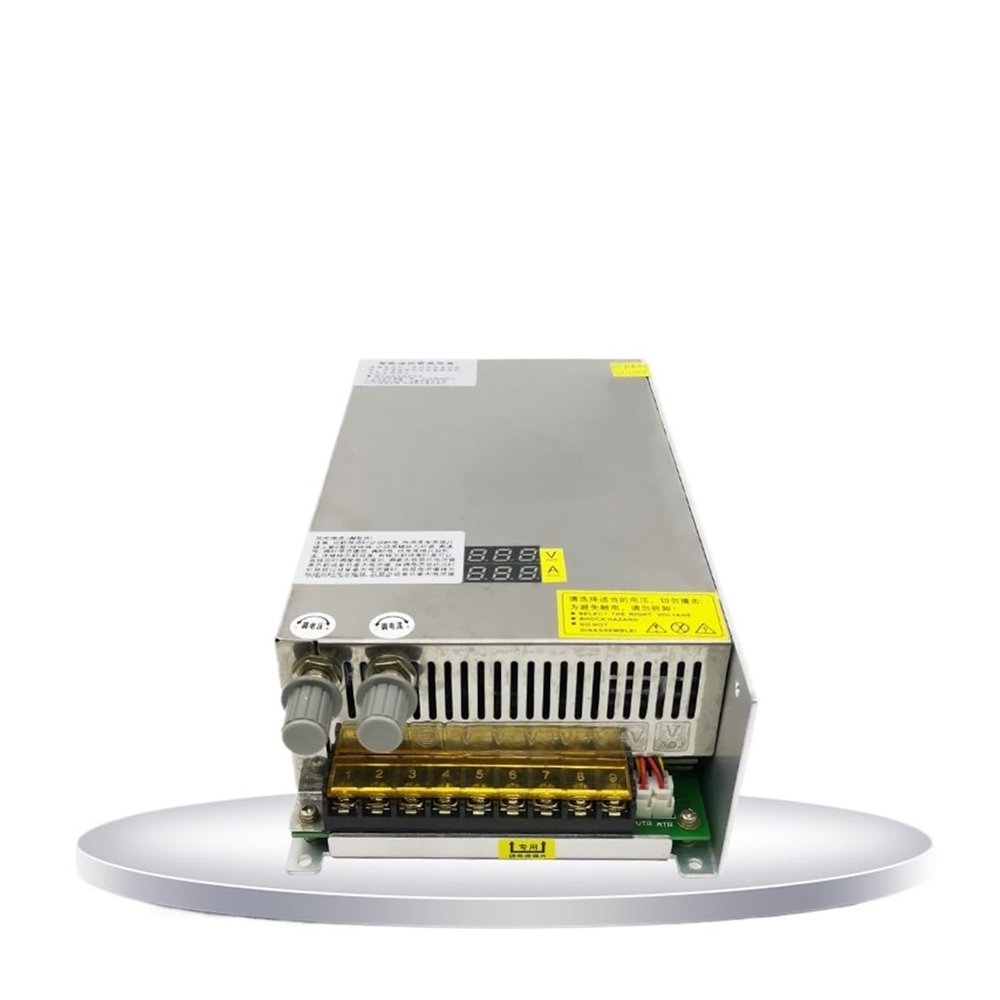

1000W Digital Display DC Switching Power Supply Adjustable Voltage And Current 0-24V 36V 48V 60v, 24v 40A, 48V 20a Buck Converter for Computer Lab, LED Strip Light and So on(0-220V 0-5A)

Description

• 1. High Power Output: This 1000W Digital Display DC Switching Power Supply provides a maximum output power of 1000W=
• 2. Adjustable Voltage and Current: With a wide voltage range of 0-24V, 36V, 48V, and 60V, this power supply enables you to adjust the output voltage according to your specific needs.
• 3. Versatile Terminal Description: The L, N AC input terminal and FG ground mark ensure safe and reliable connections. The V+ DC output positive terminal and V- DC output negative terminal provide convenient access for connecting various devices.
• 4. Advanced Protection Features: Equipped with short circuit, overload, and overvoltage protection, this power supply ensures the safety and longevity of your devices.
• 5. Wide Input Voltage Range and Working Environment: This power supply supports an input voltage range of 220VAC with a frequency range of 47-63Hz.

Specifictation:
Output power limiting output voltagerange limiting output current range Max current
1000W 0-12V 0-70A 70A
1000W 0-24V 0-40A 40A
1000W 0-36V 0-20A 20A
1000W 0-48V 0-28A 28A
1000W 0-60V 0-17A 17A
1000W 0-80V 0-12.5A 12.5A
1000W 0-120V 0-8.5A 8.5A
10000W 0-220V 0-5A 5A

voltage X current = power
Terminal description and wiring method
L, N AC input terminal FG ground mark V+ DC output positive terminal
V-DC output negative terminal ADJ adjustable potentiometer Fine-tuning output DC voltage
full voltage input
Miniaturization
Protection function Short circuit / overload / over voltage
Full load aging test

Input Voltage & Frequency Range--220VAC/47-63Hz
Start surge current ---------------20A@120VAC (cold start)
Output adjustment range --------------- 100% (rated output voltage)
Overload protection -------------------105%~200% (rated load), self-recovery
Overvoltage protection -------------------115%~135% (rated output voltage)
Short circuit protection ------------------- self-recovery
Output start time ---------------2S@120VAC 1.0S@230VAC
Output hold time ---------------10mS@120VAC, 20mS@230VAC
Insulation strength ------------------- Input - Output: AC1500V, 1min
Input - housing: AC1500V, 1min
Output - Case: DC500V, 1min
Working environment ------------------ -10 C ~ 50 C; 20% ~ 90% RH (no condensation)
