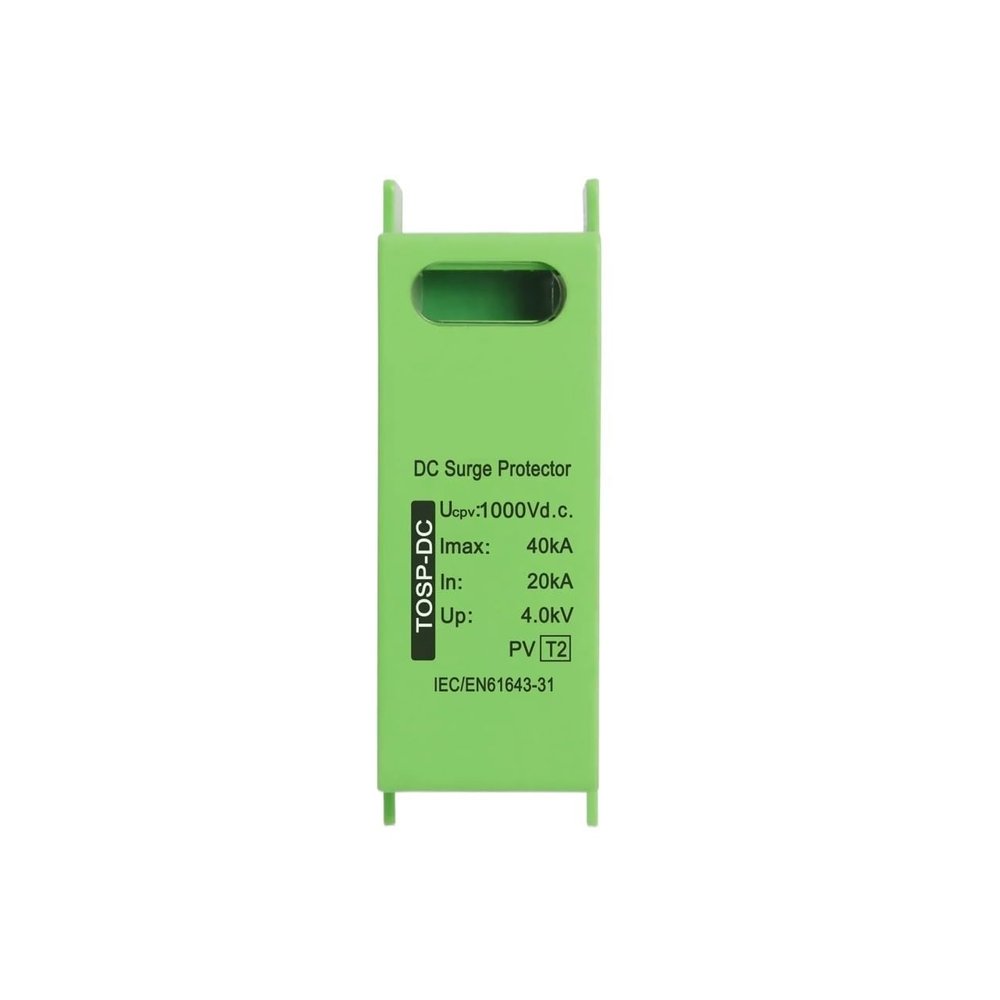

1000V DC Surge Protective Device (SPD) 2P 20KA-40KA Voltage Protector and Lightning Arrester for PV Systems

Description

• Core lightning protection and discharge: quickly conduct and discharge lightning and surge currents in the power grid to prevent equipment from being damaged by instantaneous high voltage.
• Multi level protection options: covering I/II/III level protection, suitable for different scenarios such as building main distribution, floor distribution, and terminal equipment.
• Wide current capacity coverage: The maximum discharge current can reach 10-100kA, suitable for household low-energy to industrial high-energy surge scenarios.
• Nanosecond level rapid response: response time as low as nanoseconds, timely suppression of transient overvoltage, no protective delay.
• Low voltage protection level: Voltage protection level 1.2-2.5kV, precise clamping voltage, better protection effect.
• AC/DC universal adaptation: supports 220V/380V AC and also adapts to 500-1500V DC, meeting the needs of new energy scenarios such as photovoltaics.

==========
High-concerned chemical : No
Type : DC
Model Number : TOSP-DC
is_customized : Yes
Origin : China
Certification : CE
Nominal Discharge Current : 20KA
Max. Discharge Current : 40KA
Max.Continuous Operating Voltage : 1000V
Standard : IEC61643-31
Certificate : CE CB TUV ROHS
Meet the safety creepage distance : 10mm
