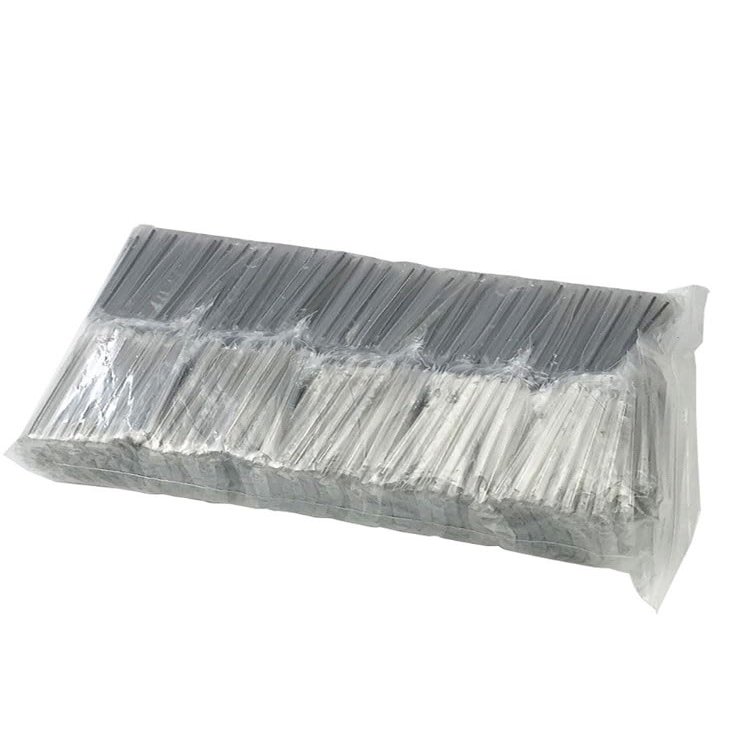

1000pcs/lot 40mm 45m 60mm Fiber Optic Fusion Protection Splice Sleeves Heat Shrink Tube Fiber Optic Hot Melt Tube (Color : 40mm)

Description

• 1. It does not affect the light guide characteristics of the optical fiber.
• 2. Protect the connecting point and improve the mechanical strength.
• 3. The operation is simple, and the risk of optical fiber damage during installation is reduced.
• 4. Transparent sleeve, which makes the optical fiber connection status clear at a glance.
• 5. The sealing structure makes the connection have good temperature and humidity resistance.

1000pcs/lot Optical fiber heat shrinkable sleeve, Class A, a package (100 pieces) 60mm 40mm 45mm long.
The optical fiber heat shrinkable sleeve consists of the following parts:
Reinforced stainless steel wire (made by precise interruption, mechanical chamfering and other processes, diameter 1.5055),
Heat shrinkable tube (diameter 3.5560)
Hot melt pipe (diameter 2.2559 and inner diameter 1.5)
Specially designed to improve the mechanical strength of optical fiber welding points and ensure the reliability of welding; Does not affect the optical transmission characteristics of the optical fiber; The method is simple and safe to use, and reduces the risk of adverse effects on optical fibers during use; The transparent sleeve can monitor the fusion of optical fibers at any time. Completely sealed inside, so that the welded joint has good high temperature and high humidity resistance. The working temperature is-55105, and the shrinkage temperature is 90120.
Product features: Design the optical fiber connection protection element composed of cross-linked polyolefin, hot-melt tube and reinforced stainless steel wire.
1. It does not affect the light guide characteristics of the optical fiber.
2. Protect the connecting point and improve the mechanical strength.
3. The operation is simple, and the risk of optical fiber damage during installation is reduced.
4. Transparent sleeve, which makes the optical fiber connection status clear at a glance.
5. The sealing structure makes the connection have good temperature and humidity resistance.
Technical indicators
Typical data of performance test methods
Tensile strength (MPa) ASTM D 2671 18
Elongation at break (%) ASTM d2671 700
Density (g/cm2) ISO R1183D 0.94
Dielectric strength (kV/mm) IEC 243 20
Dielectric constant IEC 243 2.5
Length change rate (%) ASTM D2671+5
