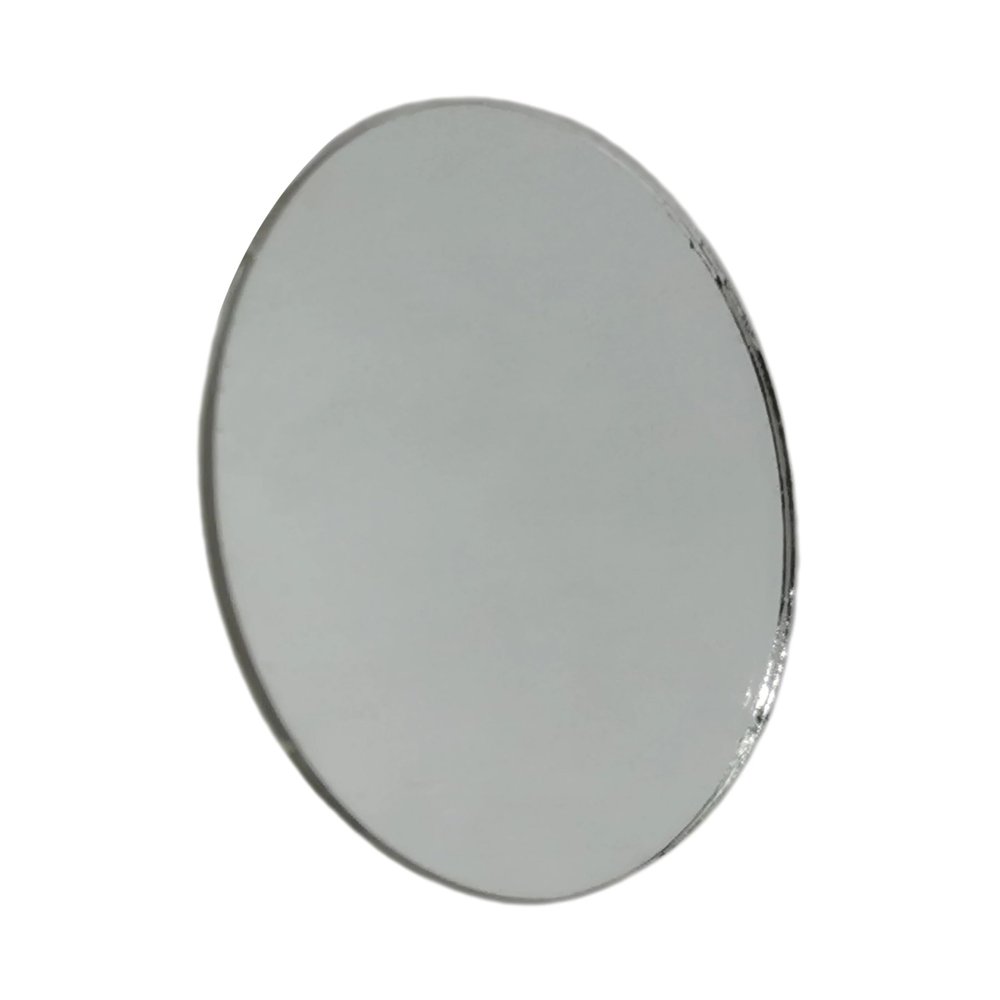

1000NM Infrared Long Wave Pass Filter Round Dia=20mm 30mm Thick-1.0MM for IR Camera 1PCS(20mm)

Description

• Surface finish: 40-20
• Center wavelength tolerance: 1%
• Transmittance T: Tavg>90%
• Cut-off zone depth: OD4
• Cut-off band steepness:

1000NM Infrared Long Wave Pass Filter Round Dia=20/30mm Thick-1.0MM for IR Camera
Product description
The long-wave pass filter allows light whose wavelength is greater than the set wavelength to pass, and cuts off the light whose wavelength is less than the set wavelength. It has the advantages of wide cut-off bandwidth, deep cut-off depth, high conversion steepness, and high transmittance. Widely used in fluorescence excitation spectroscopy, Raman spectroscopy applications, spectral grouping applications, and astronomical observation applications, etc. It can also be used in imaging optical systems, machine vision system applications, to eliminate interference light outside the available bands, and greatly improve imaging clarity Degree, and the sensitivity of the system.
Optical index
Center wavelength: 1060nm +/- 5nm
Transmission band: 1060nm~1600nm
Cut-off band: 200nm~1050nm
Material: Mirror glass
Transmission wavefront error: /4 @ 1000 nm
90%
Cut-off zone depth: OD4
90%
Incident angle: 0
Size(Dia.T.): 30mm x 1.0mm
Diameter tolerance: +0.0/-0.1mm
Thickness: 1.0mm 0.05mm
==========
Type : Color Filter
Origin : Mainland China
To Fit : Sports camera, CCTV LENS, IP Camera, Camcorder, Camera, Camera Drone, Digital Camera, Film Camera
Wavelength : Long Band Pass 1060nm-1600nm
Surface Quality : Coating
Circular Size : 20/30mm
Thickness : 1.0mm
Mount Fitting : Drop-In
Filter Shape : Circular
Filter Color : Black
